Ideal

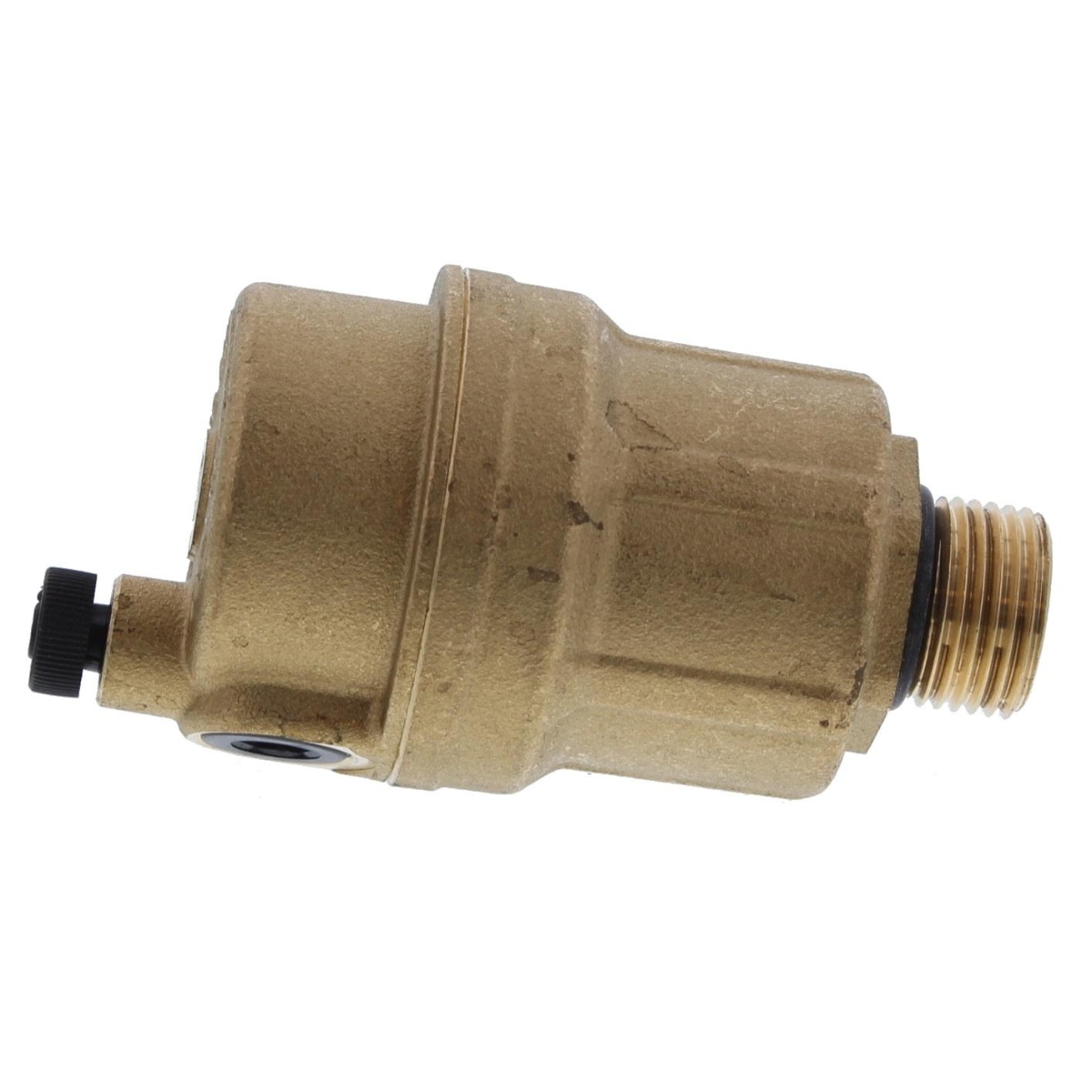

Ideal Automatic Air Vent 9.525 mm 113116
Ideal automatic air vent 113116, 9.525 mm, float-operated air release for British and Scottish Gas central heating appliances.
At a glance
- Part type: Automatic air vent
- Also known as 1175709
Showing prices
£42.53
£35.44 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal automatic air vent is a pressure safety device fitted within the central heating unit. A float inside the body rises and falls with the water level, opening to discharge accumulated air and closing again once the system is free of it. Ideal supplies this vent for use across their British and Scottish Gas appliance range.
Signs this part needs replacing
- Gurgling, bubbling or rushing noises from the boiler or pipework as air moves through the system
- Radiators that need bleeding repeatedly, or cold spots at the top of the panels
- Water weeping or dripping from the vent body or the surrounding casing
- System pressure falling without a visible leak elsewhere on the circuit
- The vent failing to discharge air even when the system is clearly airlocked
Before you order
- Check the GC number on the appliance data badge against the compatibility list below.
- Confirm the existing vent is marked 113116 or carries the alternative number 1175709.
- Check whether the vent seal or gasket also needs renewing at the same time.
Mechanical
| Part type | Automatic Air Vents |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 113116 |
|---|---|
| GC number | 386-830 |
| Barcode / EAN | 5022141131165 |
| Commodity code | 8481 80 99 99 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 38-IN-AUTO-AIR-VENT, 1175709 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL BRITISH/SCOTTISH GAS 100 RD1 | 41-387-52 | 41-387-52 | — | — |
| IDEAL BRITISH/SCOTTISH GAS 30 RD1 | 41-349-72 | 41-349-72 | — | — |
| IDEAL BRITISH/SCOTTISH GAS 40 RD1 | 41-349-73 | 41-349-73 | — | — |
| IDEAL BRITISH/SCOTTISH GAS 50 RD1 | 41-349-74 | 41-349-74 | — | — |
| IDEAL BRITISH/SCOTTISH GAS 60 RD1 | 41-349-75 | 41-349-75 | — | — |
| IDEAL BRITISH/SCOTTISH GAS 70 RD1 | 41-349-76 | 41-349-76 | — | — |
| IDEAL BRITISH/SCOTTISH GAS 80 RD1 | 41-349-77 | 41-349-77 | — | — |
| IDEAL CLASSIC COMBI FF280 | 47-415-08 | 47-415-08 | — | — |
| IDEAL CLASSIC COMBI NF80 | 47-415-07 | 47-415-07 | — | — |
| IDEAL CLASSIC FF 2 100 | 41-349-71 | 41-349-71 | — | — |
Showing 10 of 272 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — BRITISH/SCOTTISH GAS 100 RD1 (GC 41-387-52), BRITISH/SCOTTISH GAS 30 RD1 (GC 41-349-72), BRITISH/SCOTTISH GAS 40 RD1 (GC 41-349-73), BRITISH/SCOTTISH GAS 50 RD1 (GC 41-349-74), BRITISH/SCOTTISH GAS 60 RD1 (GC 41-349-75), BRITISH/SCOTTISH GAS 70 RD1 (GC 41-349-76), BRITISH/SCOTTISH GAS 80 RD1 (GC 41-349-77)
manualmanualIDEAL appliance manual — CLASSIC COMBI FF280 (GC 47-415-08)
manualmanualIDEAL appliance manual — CLASSIC COMBI NF80 (GC 47-415-07)
manualmanualIDEAL appliance manual — CLASSIC FF 2 100 (GC 41-349-71), CLASSIC FF LX 230 (GC 41-387-24), CLASSIC FF LX 240 (GC 41-387-25), CLASSIC FF LX 250 (GC 41-387-26), CLASSIC FF LX 260 (GC 41-387-27), CLASSIC FF LX 270 (GC 41-387-28), CLASSIC FF LX 280 (GC 41-387-29)
manualmanualIDEAL appliance manual — CLASSIC FF 250P (GC 41-387-07), CLASSIC FF 260P (GC 41-387-08), CLASSIC FF 275P (GC 41-387-09), CLASSIC FF LX 250P (GC 41-387-30), CLASSIC FF LX 260P (GC 41-387-31), CLASSIC FF LX 275P (GC 41-387-32)
manualmanualIDEAL appliance manual — CLASSIC FF230 (GC 41-387-02), CLASSIC FF240 (GC 41-387-03), CLASSIC FF250 (GC 41-387-04), CLASSIC FF260 (GC 41-387-05), CLASSIC FF280 (GC 41-387-06), CLASSIC NF LX 230 (GC 41-387-24), CLASSIC NF LX 240 (GC 41-387-25), CLASSIC NF LX 250 (GC 41-387-26), CLASSIC NF LX 260 (GC 41-387-27), CLASSIC NF LX 270 (GC 41-387-28), CLASSIC NF LX 280 (GC 41-387-29), CLASSIC NF230 (GC 41-387-01), CLASSIC NF240 (GC 41-387-02), CLASSIC NF250 (GC 41-387-03), CLASSIC NF260 (GC 41-387-04), CLASSIC NF270 (GC 41-387-05), CLASSIC NF280 (GC 41-387-06)
manualmanualIDEAL appliance manual — CLASSIC FF3100 (GC 41-392-01), CLASSIC FF330 (GC 41-391-54), CLASSIC FF340 (GC 41-391-95), CLASSIC FF350 (GC 41-391-96), CLASSIC FF360 (GC 41-391-97), CLASSIC FF370 (GC 41-391-98), CLASSIC FF380 (GC 41-391-99)
manualmanualIDEAL appliance manual — CLASSIC FF330 SLIMLINE (GC 41-392-02), CLASSIC FF340 SLIMLINE (GC 41-392-03), CLASSIC FF350 SLIMLINE (GC 41-392-04), CLASSIC FF360 SLIMLINE (GC 41-392-05)
manualmanualIDEAL appliance manual — CLASSIC FF340LF (GC 41-392-90), CLASSIC FF350LF (GC 41-392-91), CLASSIC FF360LF (GC 41-392-92)
manualmanualIDEAL appliance manual — CLASSIC FF350 P (GC 41-392-06), CLASSIC FF360 P (GC 41-392-07), CLASSIC FF380 P (GC 41-392-08)
manualmanualIDEAL appliance manual — CLASSIC LX RS230 (GC 41-387-33), CLASSIC LX RS240 (GC 41-387-34), CLASSIC LX RS250 (GC 41-387-35), CLASSIC LX RS260 (GC 41-387-36), CLASSIC RS230 (GC 41-387-10), CLASSIC RS240 (GC 41-387-11), CLASSIC RS245P (GC 41-387-14), CLASSIC RS250 (GC 41-387-12), CLASSIC RS255P (GC 41-387-15), CLASSIC RS260 (GC 41-387-13)
manualmanualIDEAL appliance manual — CLASSIC LX RS245P (GC 41-387-37), CLASSIC LX RS255P (GC 41-387-38)
manualmanualIDEAL appliance manual — CLASSIC NF 30 (GC 41-429-30), CLASSIC NF 40 (GC 41-429-31), CLASSIC NF 50 (GC 41-429-32), CLASSIC NF 60 (GC 41-429-33), CLASSIC NF 70 (GC 41-429-77), CLASSIC NF 80 (GC 41-429-34)
manualmanualIDEAL appliance manual — CLASSIC NFP 50, CLASSIC NFP 60, CLASSIC NFP 80
manualmanualIDEAL appliance manual — CLASSIC RS 30 (GC 41-429-35), CLASSIC RS 40 (GC 41-429-36), CLASSIC RS 50 (GC 41-429-37), CLASSIC RS 60 (GC 41-429-38)
manualmanualIDEAL appliance manual — CLASSIC RS 50P, CLASSIC RS 60P
manualmanualIDEAL appliance manual — CLASSIC RS330 (GC 41-392-09), CLASSIC RS340 (GC 41-392-10), CLASSIC RS350 (GC 41-392-11), CLASSIC RS360 (GC 41-392-12)
manualmanualIDEAL appliance manual — CLASSIC SE 12 FF (GC 41-395-31), CLASSIC SE 12 FF (SILVER) (GC 41-397-64), CLASSIC SE 15 FF (GC 41-395-32), CLASSIC SE 15 FF (SILVER) (GC 41-397-65), CLASSIC SE 18 FF (GC 41-395-33), CLASSIC SE 18 FF (SILVER) (GC 41-397-68), CLASSIC SE 18 FF SLIMLINE (GC 41-395-43), CLASSIC SE 21 FF (GC 41-395-34), CLASSIC SE 21 FF (SILVER) (GC 41-397-69), CLASSIC SE 24 FF (GC 41-395-35), CLASSIC SE 24 FF (SILVER) (GC 41-397-70), CLASSIC SE 30 FF (GC 41-395-36), CLASSIC SE 30 FF (SILVER) (GC 41-397-71), CLASSIC SE 9 FF (GC 41-395-30), CLASSIC SE 9 FF (SILVER) (GC 41-397-63)
manualmanualIDEAL appliance manual — CLASSIC SE 12 FF SLIMLINE (GC 41-395-41), CLASSIC SE 15 FF SLIMLINE (GC 41-395-42), CLASSIC SE 9 FF SLIMLINE (GC 41-395-40)
manualmanualIDEAL appliance manual — CLASSIC SE 12 RS (GC 41-395-45), CLASSIC SE 15 RS (GC 41-395-46), CLASSIC SE 18 RS (GC 41-395-99), CLASSIC SE 9 RS (GC 41-395-44)
manualmanualIDEAL appliance manual — CLASSIC SE 15P FF (GC 41-397-72), CLASSIC SE 18P FF (GC 41-397-73), CLASSIC SE 24P FF (GC 41-397-74)
manualmanualIDEAL appliance manual — CLASSIC SLIMLINE FF230 (GC 41-387-74), CLASSIC SLIMLINE FF240 (GC 41-387-75), CLASSIC SLIMLINE FF250 (GC 41-387-76), CLASSIC SLIMLINE FF260 (GC 41-387-77)
manualmanualIDEAL appliance manual — HENRAD CC100 FF (GC 47-348-12), HENRAD CC120FF (GC 47-348-13), HENRAD CC80 FF (GC 47-348-11)
manualmanualIDEAL appliance manual — HENRAD SEC FF (GC 47-348-10)
manualmanualIDEAL appliance manual — HENRAD WH FF LX30 (GC 41-349-94), HENRAD WH FF LX40 (GC 41-349-95), HENRAD WH FF LX50 (GC 41-349-96), HENRAD WH FF LX60 (GC 41-349-97), HENRAD WH FF LX70 (GC 41-349-98), HENRAD WH FF LX80 (GC 41-349-99), HENRAD WH FF100 (GC 41-349-93)
manualmanualIDEAL appliance manual — HENRAD WH FF30 (GC 41-349-87), HENRAD WH FF40 (GC 41-349-88), HENRAD WH FF50 (GC 41-349-89), HENRAD WH FF60 (GC 41-349-90), HENRAD WH FF70 (GC 41-349-91), HENRAD WH FF80 (GC 41-349-92)
manualmanualIDEAL appliance manual — OPTIA FF100 (GC 41-392-01), OPTIA FF30 (GC 41-391-54), OPTIA FF40 (GC 41-391-95), OPTIA FF50 (GC 41-391-96), OPTIA FF60 (GC 41-391-97), OPTIA FF70 (GC 41-391-98), OPTIA FF80 (GC 41-391-99)
manualmanualIDEAL appliance manual — RESPONSE 100 (GC 47-348-04), RESPONSE 120 (GC 47-348-01), RESPONSE 80 (GC 47-348-02)
manualmanualIDEAL appliance manual — RESPONSE FF80 (GC 47-415-09)
manualmanualIDEAL appliance manual — RESPONSE SE (GC 47-348-03)
manualNo technical questions yet for this part.
