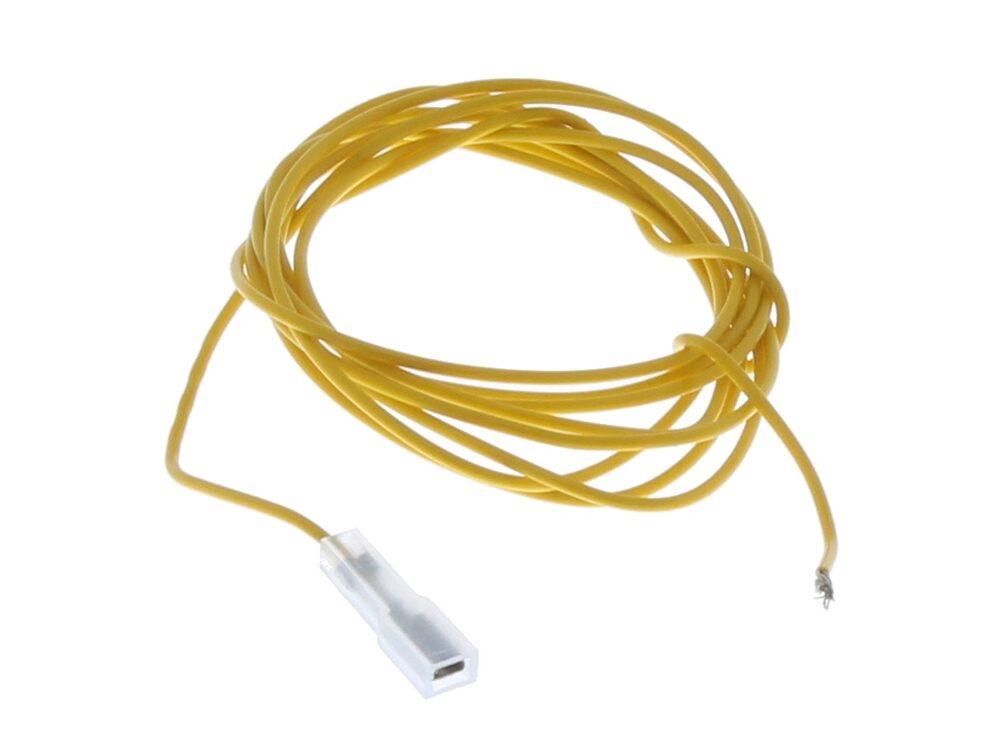

Ideal Detection Lead Assembly CXD 112448
Ideal detection lead assembly 112448 for Ideal Commercial CXD boilers, carrying the flame sensing signal to the boiler control.
At a glance
- Part type: HT lead / detection lead assembly
- Appliance family: Ideal Commercial CXD range
- Also known as 1175626
£5.39
£4.49 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal detection lead assembly, part number 112448, is a flame detection lead used on Ideal Commercial CXD boilers. It carries the flame sensing signal between the detection electrode and the boiler control, so the control can confirm that ignition has taken place and shut off the gas supply if no flame is proven. It is supplied as a complete lead assembly with its connectors fitted.
Signs this part needs replacing
- The boiler locks out on ignition or fails to prove flame
- Repeated flame loss faults or lockout codes shortly after the burner lights
- Intermittent starting, with the boiler sometimes running normally and sometimes not
- Cracked, brittle or heat-damaged insulation along the lead
- Corroded or loose connector at the electrode or control end
Before you order
- Check the GC number and model on the appliance data badge against the compatibility list.
- Confirm the lead currently fitted carries part number 112448 or the alternative number 1175626.
Mechanical
| Part type | Detection lead assembly |
|---|---|
| Appliance family | Ideal Commercial CXD |
Compliance
| Manufacturer part number (MPN) | 112448 |
|---|---|
| Barcode / EAN | 5022141124488 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1175626 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX 100 SERIES 3 | 41-387-66 | 41-387-66 | — | — |
| IDEAL COMMERCIAL CONCORD CX 100P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 40 SERIES 3 | 41-387-60 | 41-387-60 | — | — |
| IDEAL COMMERCIAL CONCORD CX 40P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 50 SERIES 3 | 41-387-61 | 41-387-61 | — | — |
| IDEAL COMMERCIAL CONCORD CX 50P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 60 SERIES 3 | 41-387-62 | 41-387-62 | — | — |
| IDEAL COMMERCIAL CONCORD CX 60P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 70 SERIES 3 | 41-387-63 | 41-387-63 | — | — |
| IDEAL COMMERCIAL CONCORD CX 70P SERIES 3 - PROPANE | — | — | — |
Showing 10 of 22 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — CONCORD CX 100 SERIES 3 (GC 41-387-66), CONCORD CX 100P SERIES 3 - PROPANE, CONCORD CX 40 SERIES 3 (GC 41-387-60), CONCORD CX 40P SERIES 3 - PROPANE, CONCORD CX 50 SERIES 3 (GC 41-387-61), CONCORD CX 50P SERIES 3 - PROPANE, CONCORD CX 60 SERIES 3 (GC 41-387-62), CONCORD CX 60P SERIES 3 - PROPANE, CONCORD CX 70 SERIES 3 (GC 41-387-63), CONCORD CX 70P SERIES 3 - PROPANE, CONCORD CX 80 SERIES 3 (GC 41-387-64), CONCORD CX 80P SERIES 3 - PROPANE, CONCORD CX 90 SERIES 3 (GC 41-387-65), CONCORD CX 90P SERIES 3 - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXD 40 SERIES 3, CONCORD CXD 50 SERIES 3, CONCORD CXD 60 SERIES 3, CONCORD CXD 70 SERIES 3, CONCORD CXD 80 SERIES 3, CONCORD CXD 90 SERIES 3
manualNo technical questions yet for this part.
