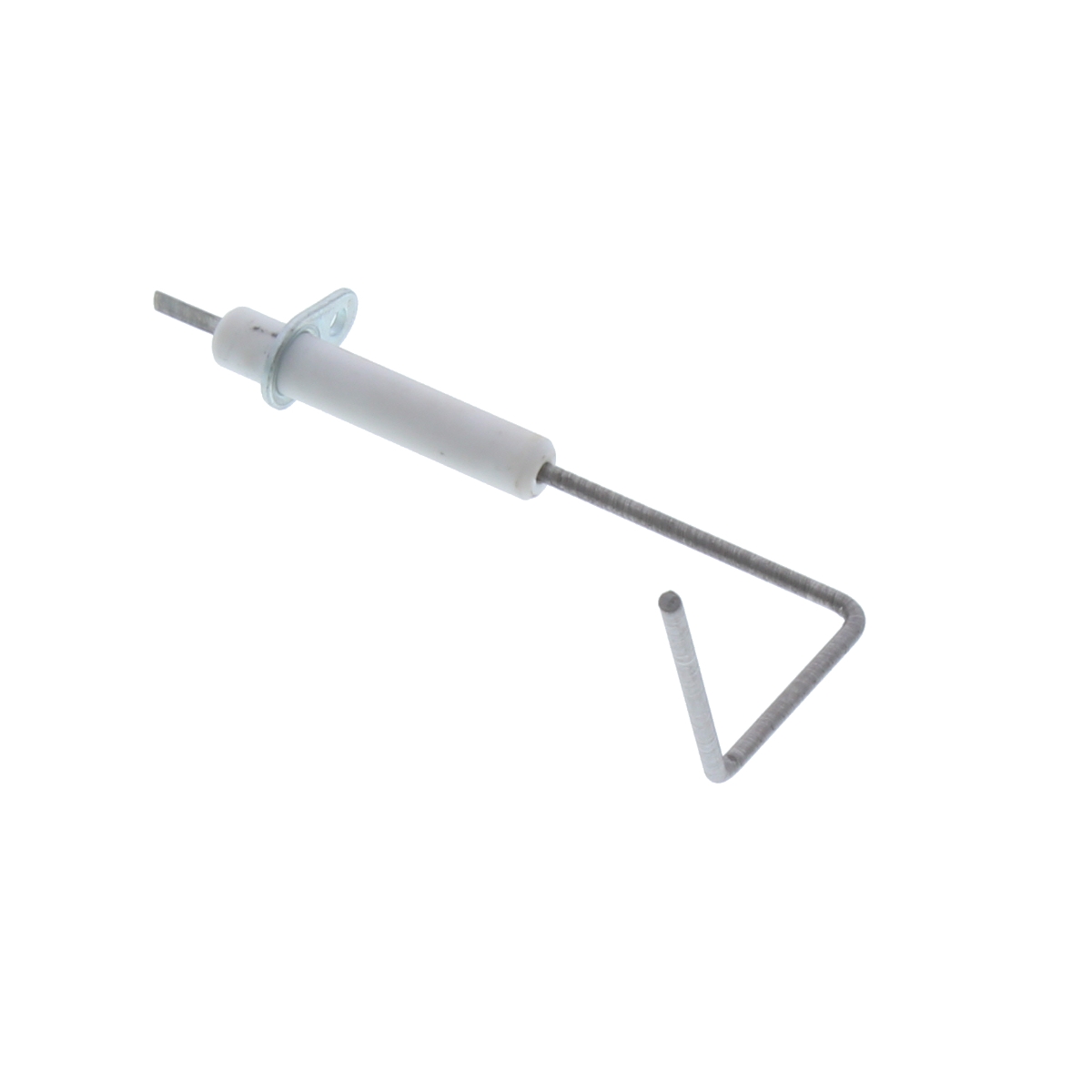

Ideal Flame Detection Electrode CXD 112364
Ideal flame detection electrode, part 112364, for Concord CXC and CXD Series 3 commercial boilers; senses flame presence at the burner.
At a glance
- Part type: Flame detection electrode
- Also known as 1175611, N7649
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£16.38
£13.65 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal flame detection electrode, part number 112364, is a sensing probe fitted at the burner of Ideal Commercial boilers. It monitors whether a flame is actually present, so the appliance does not continue to pass gas once the burner has failed to light or has gone out. This electrode is used across the Ideal Commercial Concord CXC and CXD Series 3 range.
Signs this part needs replacing
- The boiler locks out during or shortly after the ignition sequence
- Repeated flame failure faults logged on the control
- The burner lights but the control does not register a flame and shuts the gas valve
- Intermittent lockouts that clear on reset and return on the next demand
- Visible damage, heavy contamination or a distorted probe tip on inspection
Before you order
- Check the GC number or appliance serial plate against the compatibility list to confirm the correct electrode for your model
- Cross-check the alternative numbers 1175611 and N7649 against the part you are removing
- Inspect the electrode lead and any gasket or seal at the burner access point, as these may need renewing at the same time
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Electrodes And Ignitions |
|---|
Compliance
| Manufacturer part number (MPN) | 112364 |
|---|---|
| Barcode / EAN | 5022141123641 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1175611, N7649 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXC 116 SERIES 3 | 41-394-35 | 41-394-35 | — | — |
| IDEAL COMMERCIAL CONCORD CXC 48 SERIES 3 | 41-394-32 | 41-394-32 | — | — |
| IDEAL COMMERCIAL CONCORD CXC 70 SERIES 3 | 41-394-33 | 41-394-33 | — | — |
| IDEAL COMMERCIAL CONCORD CXC 94 SERIES 3 | 41-394-34 | 41-394-34 | — | — |
| IDEAL COMMERCIAL CONCORD CXD 100 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 40 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 50 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 60 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 70 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 80 SERIES 3 | — | — | — |
Showing 10 of 44 compatible appliances.
