Ideal
Ideal 111947 Fan Assembly
At a glance
- Part type: Fan assembly
- Also known as 1175549, N7871, IDEAL111947
Showing prices
£285.94
£238.28 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

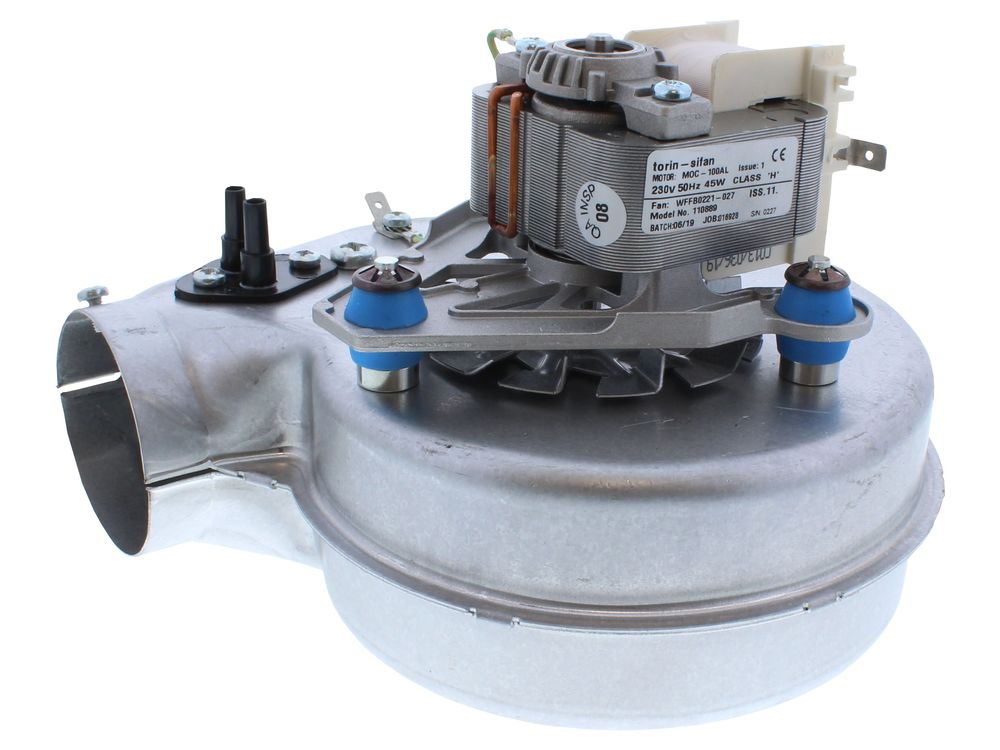

The Ideal 111947 is a complete fan assembly for Ideal NF200 Classic appliances. The fan pulls combustion air into the burner and drives the products of combustion out through the flue, which makes it central to both clean ignition and safe flue operation. Because it is supplied as a full assembly rather than a bare motor, the unit can be swapped as one piece during a service visit.
Signs this part needs replacing
- Whining, grinding or rumbling from the fan housing during or just after ignition
- Appliance fails to light, or locks out shortly after the fan is called
- Repeated ignition or fan-proving fault codes traced back to the fan circuit
- Impeller stiff, seized or turning only intermittently when checked by hand
- Overheat or flue-related faults where the fan is not shifting enough air
Before you order
- Confirm the appliance is an NF200 Classic and that its serial number carries the NZ prefix
- Match part number 111947 against the label on the existing fan before ordering
- Inspect the fan gasket and any sealing washers at the flue connection and renew them if perished
Mechanical
| Part type | Fan Assembly |
|---|
Compliance
| Manufacturer part number (MPN) | 111947 |
|---|---|
| GC number | 308-536 |
| Commodity code | 8414 59 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5022141119477, IDEAL111947, IDEAL111947, IDEAL111947, 264949376674, 1175549, N7871 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI FF280 | 47-415-08 | 47-415-08 | — | — |
| IDEAL CLASSIC FF 250P | 41-387-07 | 41-387-07 | — | — |
| IDEAL CLASSIC FF 260P | 41-387-08 | 41-387-08 | — | — |
| IDEAL CLASSIC FF 275P | 41-387-09 | 41-387-09 | — | — |
| IDEAL CLASSIC FF LX 230 | 41-387-24 | 41-387-24 | — | — |
| IDEAL CLASSIC FF LX 240 | 41-387-25 | 41-387-25 | — | — |
| IDEAL CLASSIC FF LX 250 | 41-387-26 | 41-387-26 | — | — |
| IDEAL CLASSIC FF LX 250P | 41-387-30 | 41-387-30 | — | — |
| IDEAL CLASSIC FF LX 260 | 41-387-27 | 41-387-27 | — | — |
| IDEAL CLASSIC FF LX 260P | 41-387-31 | 41-387-31 | — | — |
Showing 10 of 42 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — CLASSIC COMBI FF280 (GC 47-415-08)
manualmanualIDEAL appliance manual — CLASSIC FF 250P (GC 41-387-07), CLASSIC FF 260P (GC 41-387-08), CLASSIC FF 275P (GC 41-387-09), CLASSIC FF LX 250P (GC 41-387-30), CLASSIC FF LX 260P (GC 41-387-31), CLASSIC FF LX 275P (GC 41-387-32)
manualmanualIDEAL appliance manual — CLASSIC FF LX 230 (GC 41-387-24), CLASSIC FF LX 240 (GC 41-387-25), CLASSIC FF LX 250 (GC 41-387-26), CLASSIC FF LX 260 (GC 41-387-27), CLASSIC FF LX 270 (GC 41-387-28), CLASSIC FF LX 280 (GC 41-387-29)
manualmanualIDEAL appliance manual — CLASSIC FF230 (GC 41-387-02), CLASSIC FF240 (GC 41-387-03), CLASSIC FF250 (GC 41-387-04), CLASSIC FF260 (GC 41-387-05), CLASSIC FF280 (GC 41-387-06), CLASSIC NF LX 230 (GC 41-387-24), CLASSIC NF LX 240 (GC 41-387-25), CLASSIC NF LX 250 (GC 41-387-26), CLASSIC NF LX 260 (GC 41-387-27), CLASSIC NF LX 270 (GC 41-387-28), CLASSIC NF LX 280 (GC 41-387-29), CLASSIC NF230 (GC 41-387-01), CLASSIC NF240 (GC 41-387-02), CLASSIC NF250 (GC 41-387-03), CLASSIC NF260 (GC 41-387-04), CLASSIC NF270 (GC 41-387-05), CLASSIC NF280 (GC 41-387-06)
manualmanualIDEAL appliance manual — HENRAD WH FF LX30 (GC 41-349-94), HENRAD WH FF LX40 (GC 41-349-95), HENRAD WH FF LX50 (GC 41-349-96), HENRAD WH FF LX60 (GC 41-349-97), HENRAD WH FF LX70 (GC 41-349-98), HENRAD WH FF LX80 (GC 41-349-99)
manualmanualIDEAL appliance manual — HENRAD WH FF30 (GC 41-349-87), HENRAD WH FF40 (GC 41-349-88), HENRAD WH FF50 (GC 41-349-89), HENRAD WH FF60 (GC 41-349-90), HENRAD WH FF70 (GC 41-349-91), HENRAD WH FF80 (GC 41-349-92)
manualNo technical questions yet for this part.
