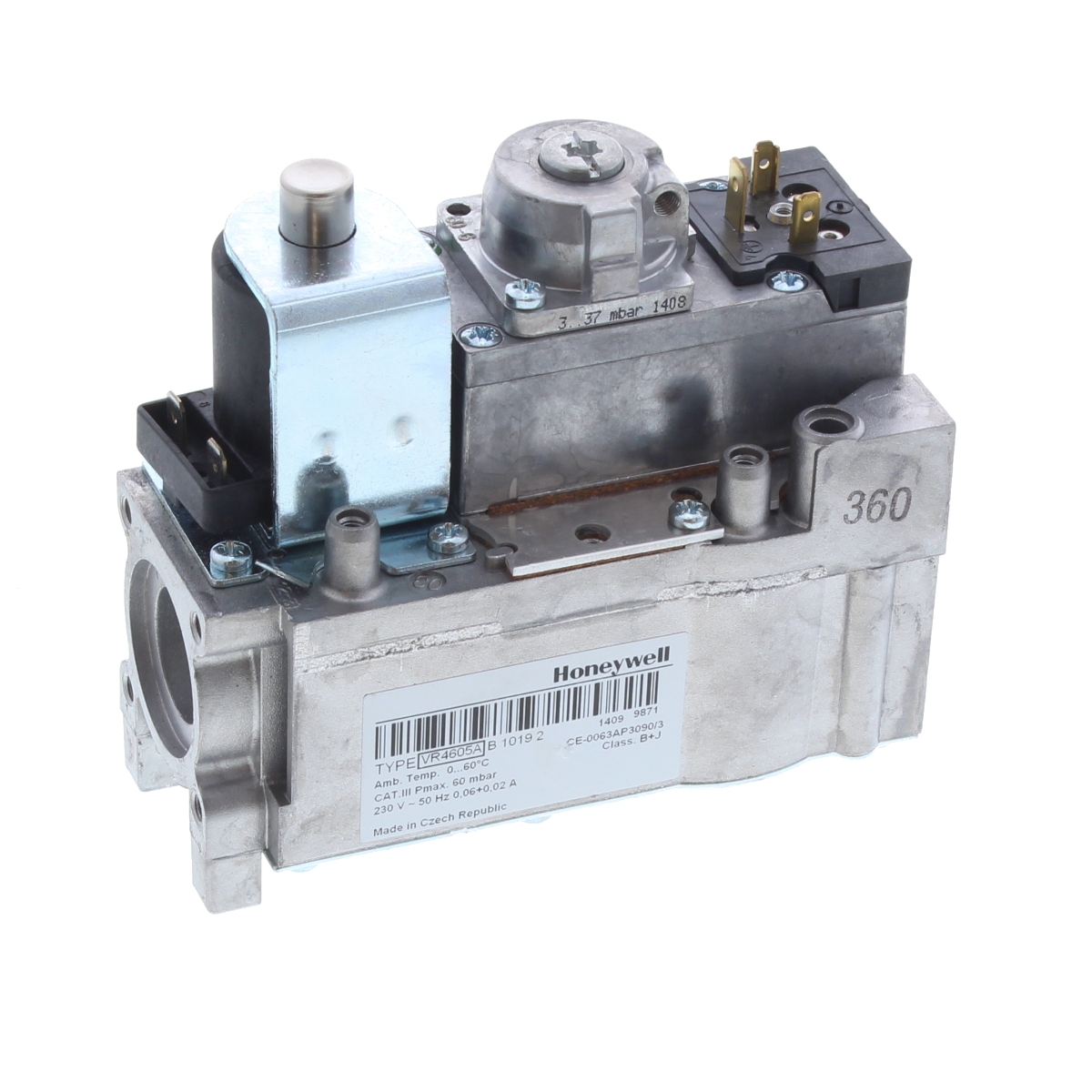

Ideal Gas Valve VR4605AB1019 111869
Replacement Ideal gas valve VR4605AB1019, part 111869, for Concord CXA, CXC, CXD and CXS commercial boilers; controls gas flow to the burner.
At a glance
- Part type: Gas Valve
- Also known as 1175539
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£391.91
£326.59 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal gas valve VR4605AB1019, part number 111869, is a replacement gas control valve for Ideal Commercial Concord boilers. It sits in the gas train and regulates the supply of gas into the appliance. When the boiler calls for heat, the printed circuit board sends a signal to the valve, which opens and lets gas through to the burner or to the pilot assembly, depending on the appliance model.
Signs this part needs replacing
- The boiler fails to light, with no gas reaching the burner or pilot.
- The burner lights and then goes out shortly afterwards.
- Intermittent lockouts or ignition faults that clear on a reset and return.
- The valve does not respond when the PCB signals a demand for gas.
- A pilot flame that will not hold on models using a pilot assembly.
Before you order
- Check the GC number on the appliance data badge against the list above to confirm the valve is correct for your model.
- Confirm the boiler model and, where possible, the serial number before ordering.
- Note the alternative part number 1175539 when cross-referencing an existing valve.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gas Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 111869 |
|---|---|
| GC number | E58-313 |
| Barcode / EAN | 5022141118692 |
| Commodity code | 8481 80 99 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1175539 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXA 100H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 100P - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 110 | 41-387-85 | 41-387-85 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 110H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 120 | 41-387-86 | 41-387-86 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 120H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 90 | 41-387-83 | 41-387-83 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 90H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 90P - PROPANE | 41-387-83 | 41-387-83 | — | — |
| IDEAL COMMERCIAL CONCORD CXAP 100H - PROPANE | — | — | — |
Showing 10 of 44 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL COMMERCIAL appliance manual — CONCORD CXA 100H, CONCORD CXA 110H, CONCORD CXA 120H, CONCORD CXA 90H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 100P - PROPANE, CONCORD CXA 90P - PROPANE (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 110 (GC 41-387-85), CONCORD CXA 120 (GC 41-387-86), CONCORD CXA 90 (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXAP 100H - PROPANE, CONCORD CXAP 110H - PROPANE, CONCORD CXAP 120H - PROPANE, CONCORD CXAP 90H - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXC 116 SERIES 3 (GC 41-394-35), CONCORD CXC 94 SERIES 3 (GC 41-394-34)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXD 70 SERIES 3, CONCORD CXD 80 SERIES 3, CONCORD CXD 90 SERIES 3
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXDI 110/H, CONCORD CXDI 120/H, CONCORD CXDI 140/H, CONCORD CXDI 160/H, CONCORD CXDI 180/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXDI 140, CONCORD CXDI 160
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110/H, CONCORD CXS 120/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110NG, CONCORD CXS 120NG
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110/H, CONCORD CXSD 120/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110NG (GC 41-391-47), CONCORD CXSD 120NG (GC 41-391-48)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 110/H, CONCORD CXSI 120/H, CONCORD CXSI 140/H, CONCORD CXSI 160/H, CONCORD CXSI 180/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 140, CONCORD CXSI 160
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXi 140 SERIES 2, CONCORD CXi 160 SERIES 2
