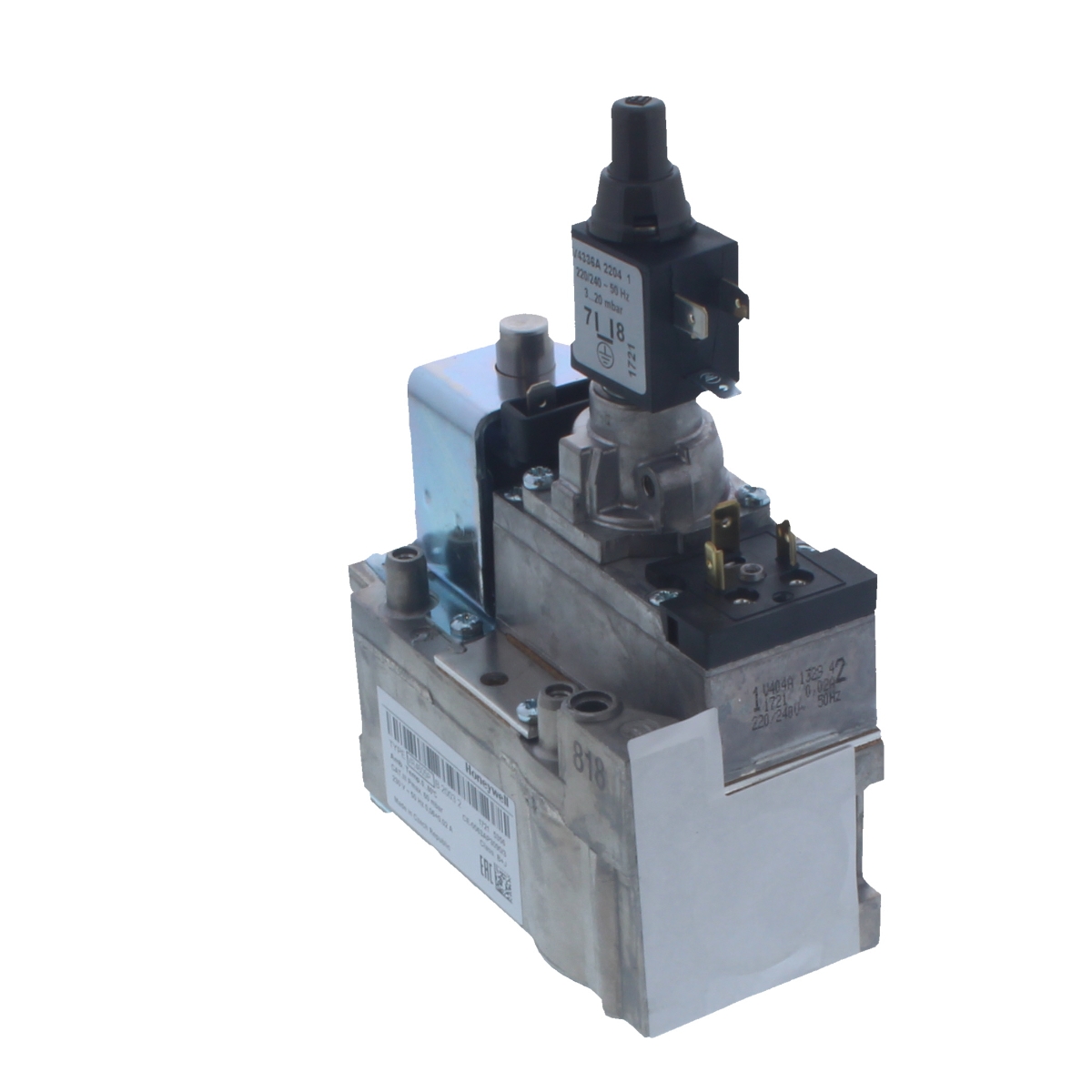

Ideal Gas Valve High/Low VR4605 PB2003 111867
Ideal high/low gas valve (VR4605 PB2003), part 111867, for Ideal Commercial Concord CXC and CXD series appliances.
At a glance
- Part type: Gas valve (high/low)
- Appliance family: Ideal Commercial Concord CXC and CXD series
- Also known as 1175537
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£414.16
£345.13 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal gas valve is a high/low type valve controlling gas delivery to the burner on Ideal Commercial appliances. It responds to a signal from the electronic control board: when demand for gas at the burner rises, the valve opens and meters flow through to the burner or pilot assembly, depending on the appliance model. This is the VR4605 PB2003 variant, supplied under Ideal part number 111867.
Signs this part needs replacing
- The burner fails to light or lights intermittently despite a call for heat from the controls
- The appliance locks out shortly after ignition or during a demand cycle
- No gas reaches the burner or pilot assembly when the control board signals for it
- Flame failure or unstable flame at the burner
- The valve body shows signs of sticking, seizure or an audible failure to open and close cleanly
Before you order
- Confirm the appliance model and GC number against the compatibility list, as the same valve reference is used across several Concord variants
- Check the existing valve marking reads VR4605 PB2003 before ordering
- Note the alternative part number 1175537 when cross-referencing older documentation
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gas Valves |
|---|---|
| Appliance family | Ideal Commercial Concord CXC / CXD |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 111867 |
|---|---|
| GC number | E58-307 |
| Barcode / EAN | 5022141118678 |
| Commodity code | 8481 80 51 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1175537 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXC 48 SERIES 3 | 41-394-32 | 41-394-32 | — | — |
| IDEAL COMMERCIAL CONCORD CXC 70 SERIES 3 | 41-394-33 | 41-394-33 | — | — |
| IDEAL COMMERCIAL CONCORD CXD 40 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 50 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 60 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 110 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 110/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 120 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 120/H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXDI 140 | — | — | — |
Showing 10 of 63 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL COMMERCIAL appliance manual — CONCORD CXC 48 SERIES 3 (GC 41-394-32), CONCORD CXC 70 SERIES 3 (GC 41-394-33)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXD 40 SERIES 3, CONCORD CXD 50 SERIES 3, CONCORD CXD 60 SERIES 3
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXDI 110, CONCORD CXDI 120, CONCORD CXDI 140, CONCORD CXDI 160, CONCORD CXDI 180
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXDI 110/H, CONCORD CXDI 120/H, CONCORD CXDI 140/H, CONCORD CXDI 160/H, CONCORD CXDI 180/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110/H, CONCORD CXS 120/H, CONCORD CXS 40/H, CONCORD CXS 50/H, CONCORD CXS 60/H, CONCORD CXS 70/H, CONCORD CXS 80/H, CONCORD CXS 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110NG, CONCORD CXS 120NG, CONCORD CXS 40NG, CONCORD CXS 50NG, CONCORD CXS 60NG, CONCORD CXS 70NG, CONCORD CXS 80NG, CONCORD CXS 90NG
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110/H, CONCORD CXSD 120/H, CONCORD CXSD 40/H, CONCORD CXSD 50/H, CONCORD CXSD 60/H, CONCORD CXSD 70/H, CONCORD CXSD 80/H, CONCORD CXSD 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110NG (GC 41-391-47), CONCORD CXSD 120NG (GC 41-391-48), CONCORD CXSD 40NG (GC 41-387-96), CONCORD CXSD 50NG (GC 41-387-97), CONCORD CXSD 60NG (GC 41-387-98), CONCORD CXSD 70NG, CONCORD CXSD 80NG (GC 41-387-99), CONCORD CXSD 90NG (GC 41-391-33)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 110, CONCORD CXSI 120, CONCORD CXSI 140, CONCORD CXSI 160, CONCORD CXSI 180
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 110/H, CONCORD CXSI 120/H, CONCORD CXSI 140/H, CONCORD CXSI 160/H, CONCORD CXSI 180/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXi 110 SERIES 2, CONCORD CXi 120 SERIES 2, CONCORD CXi 140 SERIES 2, CONCORD CXi 160 SERIES 2, CONCORD CXi 180 SERIES 2
manualNo technical questions yet for this part.
