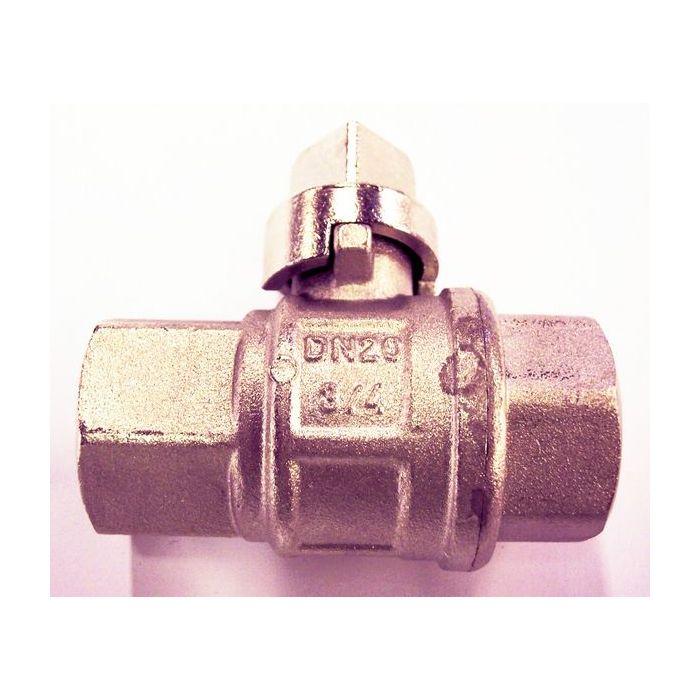

Ideal Ball Valve 3/4 Inch Square Head 111267
Ideal 111267 3/4 inch square head ball valve gas cock for Concord CX commercial boilers in the DF V2000 range.
At a glance
- Part type: Isolation valve / gas cock ball valve
- Also known as 1175459
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£99.52
£82.93 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 111267 is a 3/4 inch ball valve with a square operating head, supplied as a gas cock for the DF V2000 range. It sits on the gas feed to the appliance and lets an engineer isolate and reinstate the supply during servicing, commissioning or repair. The part is used across the Ideal Commercial Concord CX series.
Signs this part needs replacing
- The square head turns but the valve no longer shuts the gas supply off completely.
- A gas smell or visible weep around the spindle or gland.
- The operating head is stiff, seized or rounded off and will not turn cleanly with a spanner.
- A pressure drop or leak is found at the valve during a tightness test.
- Corrosion or mechanical damage to the valve body or head.
Before you order
- Check the GC number on the appliance data badge against the compatibility list, as the Concord CX range uses several variants.
- If you are ordering against an older reference, this part has previously been listed as 004391.
- Confirm the connection size and head type match the gas cock being replaced before fitting.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Isolation valve / gas cock ball valve |
|---|---|
| Appliance family | DF V2000 |
Compliance
| Manufacturer part number (MPN) | 111267 |
|---|---|
| Barcode / EAN | 5022141112676 |
| Commodity code | 8481 80 81 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 004391, 1175459 |
| Previous numbers | 004391 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX 100 SERIES 3 | 41-387-66 | 41-387-66 | — | — |
| IDEAL COMMERCIAL CONCORD CX 100P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 40 SERIES 3 | 41-387-60 | 41-387-60 | — | — |
| IDEAL COMMERCIAL CONCORD CX 40P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 50 SERIES 3 | 41-387-61 | 41-387-61 | — | — |
| IDEAL COMMERCIAL CONCORD CX 50P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 60 SERIES 3 | 41-387-62 | 41-387-62 | — | — |
| IDEAL COMMERCIAL CONCORD CX 60P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 70 SERIES 3 | 41-387-63 | 41-387-63 | — | — |
| IDEAL COMMERCIAL CONCORD CX 70P SERIES 3 - PROPANE | — | — | — |
Showing 10 of 69 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL COMMERCIAL appliance manual — CONCORD CX 100 SERIES 3 (GC 41-387-66), CONCORD CX 100P SERIES 3 - PROPANE, CONCORD CX 40 SERIES 3 (GC 41-387-60), CONCORD CX 40P SERIES 3 - PROPANE, CONCORD CX 50 SERIES 3 (GC 41-387-61), CONCORD CX 50P SERIES 3 - PROPANE, CONCORD CX 60 SERIES 3 (GC 41-387-62), CONCORD CX 60P SERIES 3 - PROPANE, CONCORD CX 70 SERIES 3 (GC 41-387-63), CONCORD CX 70P SERIES 3 - PROPANE, CONCORD CX 80 SERIES 3 (GC 41-387-64), CONCORD CX 80P SERIES 3 - PROPANE, CONCORD CX 90 SERIES 3 (GC 41-387-65), CONCORD CX 90P SERIES 3 - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 40 (GC 41-387-78), CONCORD CXA 50 (GC 41-387-79), CONCORD CXA 60 (GC 41-387-80), CONCORD CXA 70 (GC 41-387-81), CONCORD CXA 80 (GC 41-387-82)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 40H, CONCORD CXA 50H, CONCORD CXA 60H, CONCORD CXA 70H, CONCORD CXA 80H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 40P - PROPANE (GC 41-387-78), CONCORD CXA 50P - PROPANE (GC 41-387-79), CONCORD CXA 60P - PROPANE (GC 41-387-80), CONCORD CXA 70P - PROPANE (GC 41-387-81), CONCORD CXA 80P - PROPANE (GC 41-387-82)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXAP 40H - PROPANE, CONCORD CXAP 50H - PROPANE, CONCORD CXAP 60H - PROPANE, CONCORD CXAP 70H - PROPANE, CONCORD CXAP 80H - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXC 48 SERIES 3 (GC 41-394-32), CONCORD CXC 70 SERIES 3 (GC 41-394-33), CONCORD CXC 94 SERIES 3 (GC 41-394-34)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXD 40 SERIES 3, CONCORD CXD 50 SERIES 3, CONCORD CXD 60 SERIES 3, CONCORD CXD 70 SERIES 3, CONCORD CXD 80 SERIES 3, CONCORD CXD 90 SERIES 3
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 40/H, CONCORD CXS 50/H, CONCORD CXS 60/H, CONCORD CXS 70/H, CONCORD CXS 80/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 40NG, CONCORD CXS 50NG, CONCORD CXS 60NG, CONCORD CXS 70NG, CONCORD CXS 80NG
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 40/H, CONCORD CXSD 50/H, CONCORD CXSD 60/H, CONCORD CXSD 70/H, CONCORD CXSD 80/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 40NG (GC 41-387-96), CONCORD CXSD 50NG (GC 41-387-97), CONCORD CXSD 60NG (GC 41-387-98), CONCORD CXSD 70NG, CONCORD CXSD 80NG (GC 41-387-99)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD SUPER SERIES 4 - HORIZONTAL, CONCORD SUPER SERIES 4 - VERTICAL
