Ideal Ignition Lead Assembly Super Plus DBI 110523

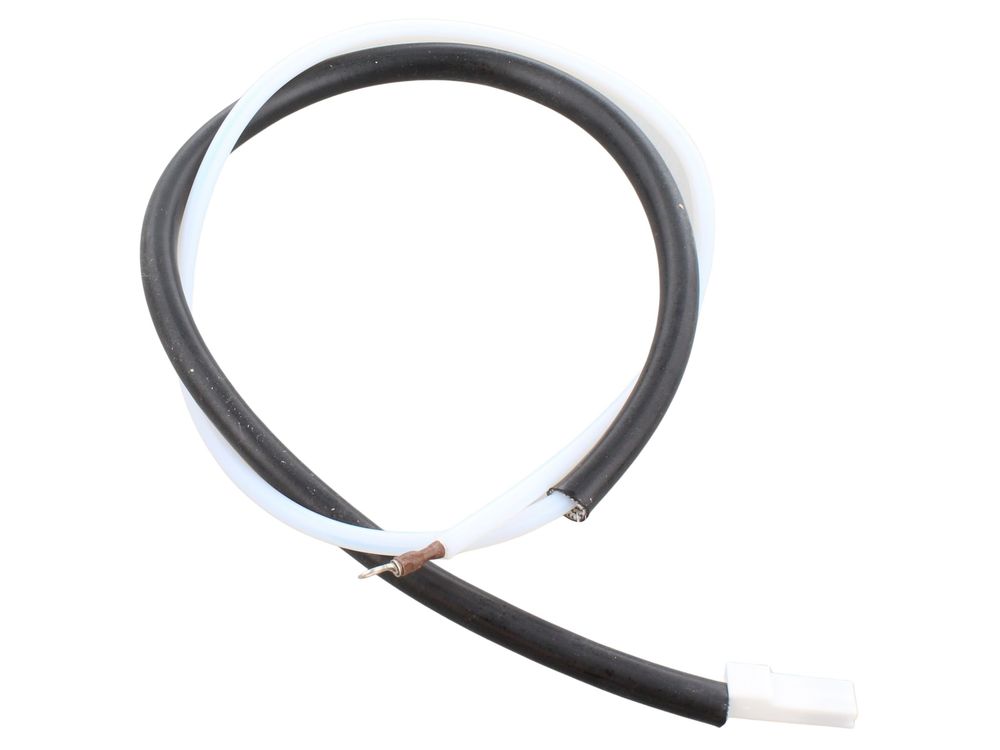

Ignition lead assembly (HT lead) for Ideal Commercial Super Plus and Super Plus DBI appliances, part 110523.
At a glance
- Part type: Ignition lead assembly (HT lead)
- Also known as 1175415
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£34.92
£29.10 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 110523 is an ignition lead assembly — an HT lead — used on Ideal Commercial Super Plus and Super Plus DBI appliances. It carries the high-tension voltage from the ignition source to the spark electrode, generating the spark that lights the burner during the ignition sequence. The lead is supplied as a complete assembly for direct replacement on the listed models.
Signs this part needs replacing
- The appliance fails to light and locks out during the ignition sequence
- No spark is visible at the electrode when ignition is called
- The lead insulation is cracked, brittle, scorched or discoloured
- Arcing or tracking to earth is visible along the length of the lead
- Ignition faults are intermittent and change when the lead is moved
Before you order
- Check the appliance model and GC number against the compatibility list before ordering.
- Older documentation may list this lead under the alternative number 1175415 rather than 110523.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Lead |
|---|
Compliance
| Manufacturer part number (MPN) | 110523 |
|---|---|
| Barcode / EAN | 5022141105234 |
| Commodity code | 8544 60 10 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1175415 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IDEAL SUPER PLUS | — | — | — | |
| IDEAL COMMERCIAL MODULE SUPER PLUS DBI | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 200/2 | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 200/2 DBI | 41-415-68 | 41-415-68 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 200/S | 41-415-68 | 41-415-68 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 300/3 | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 300/3 ALT | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 300/3 AT | 41-415-69 | 41-415-69 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 300/3 DBI | 41-415-69 | 41-415-69 | — | — |
Showing 10 of 15 compatible appliances.
