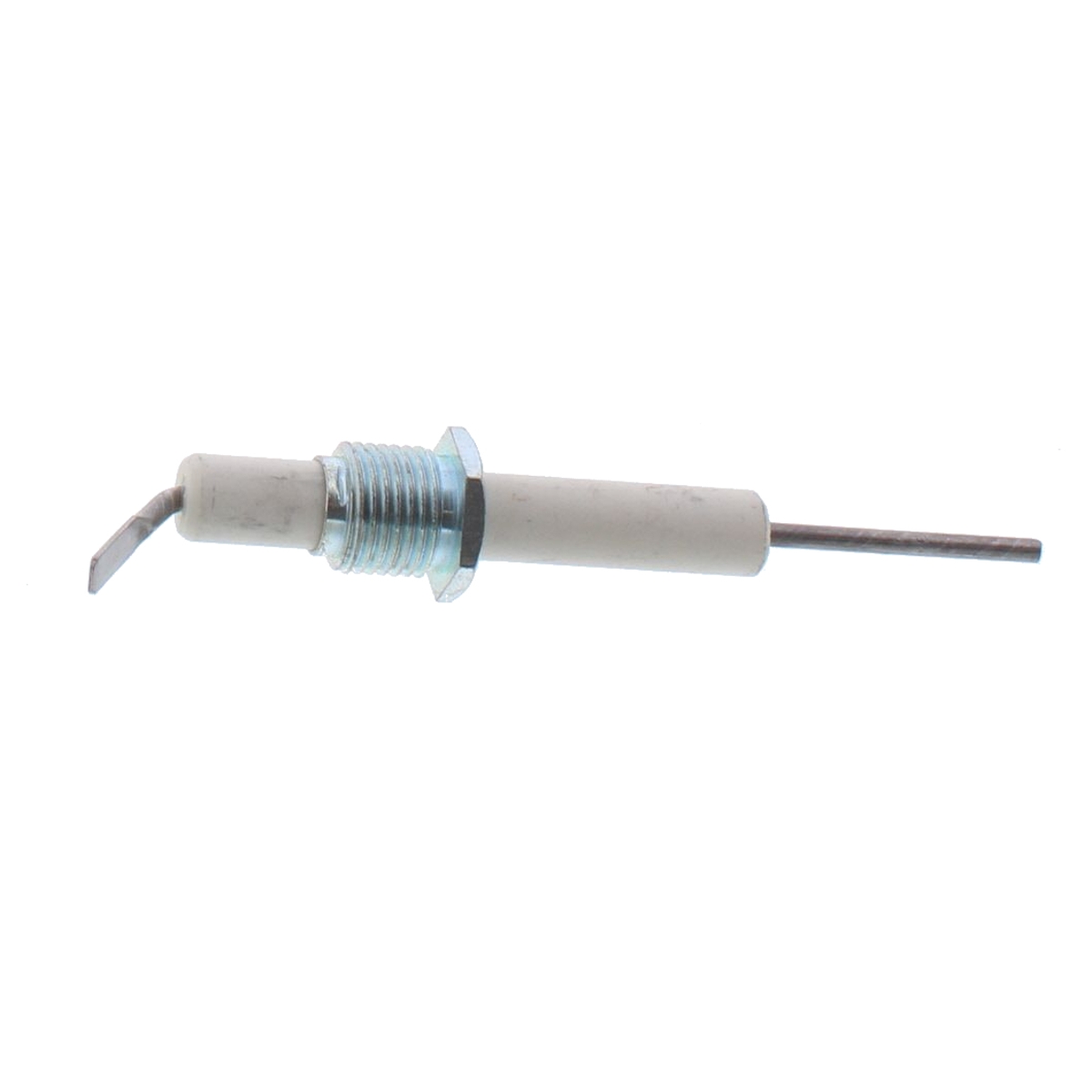

Baxi Pilot Ignition Electrode 102024
Baxi pilot ignition electrode 102024, the spark-generating component for Baxi Bermuda back boiler appliances and 133 compatible models.
At a glance
- Part type: Electrodes & Ignitions
- Also known as 1110964
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£12.00
£10.00 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi pilot ignition electrode, part number 102024, is the spark-generating component fitted to the pilot assembly of Baxi Bermuda back boiler appliances. It produces the spark that lights the pilot flame, which in turn establishes ignition at the main burner. Flame sensing electrodes work alongside it to monitor whether a flame is present, an important safety function that prevents gas being supplied when there is no flame.
Signs this part needs replacing
- The boiler fails to light and locks out on an ignition fault
- No spark is visible at the pilot assembly when the appliance is called for heat
- The pilot flame lights but does not hold, dropping out shortly after ignition
- Repeated lockouts that need a manual reset before the boiler will run
- Sooting, cracking, a worn tip or a damaged lead on the existing electrode
Before you order
- Check the GC number and model on the appliance data badge against the compatibility list before ordering.
- Inspect the existing electrode and its lead for damage, and confirm the pilot assembly is otherwise sound.
- Cross-reference the alternative part number 1110964 when checking older stock or documentation.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Electrodes & Ignitions |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 102024 |
|---|---|
| GC number | 387-852 |
| Barcode / EAN | 5039177577119 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1110964 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI BERMUDA 25/1 | — | — | — | |
| BAXI BAXI BERMUDA 401 | — | — | — | |
| BAXI BAXI BERMUDA 552 BBU | — | — | — | |
| BAXI BAXI BERMUDA 675-LFE | — | — | — | |
| BAXI BAXI BERMUDA 675C | — | — | — | |
| BAXI BAXI BERMUDA 675PW | — | — | — | |
| BAXI BAXI BERMUDA 675S | — | — | — | |
| BAXI BAXI BERMUDA 675W | — | — | — | |
| BAXI BAXI BERMUDA C WITH 551, OR 401 BBU | — | — | — | |
| BAXI BAXI BERMUDA PW WITH BERMUDA 551OR 401 BBU | — | — | — |
Showing 10 of 133 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
BAXI appliance manual — BERMUDA 25/1 (GC 44-077-51)
manualmanualBAXI appliance manual — BERMUDA 401 BBU (GC 44-077-49)
manualmanualBAXI appliance manual — BERMUDA 551 CHB(35/55) (GC 44-077-48)
manualmanualBAXI appliance manual — BERMUDA 552 - NG (GC 44-077-50)
manualmanualBAXI appliance manual — BERMUDA 675 BBU / LFE FIRE (GC 44-077-47), BERMUDA 675 C CAT 2TN - FIRE (GC 44-077-45), BERMUDA 675 PW CAT 2TN - FIRE (GC 44-077-43), BERMUDA 675 S CAT 2TN - FIRE (GC 44-077-44), BERMUDA 675 W CAT 2TN - FIRE (GC 44-077-46)
manualmanualBAXI appliance manual — BOSTON 2 40 OF (GC 41-077-80), BOSTON 2 50 OF (GC 41-077-81), BOSTON 2 60 OF (GC 41-077-82), BOSTON 2 70 OF (GC 41-077-83), BOSTON 2 80 OF (GC 41-077-84)
manualmanualBAXI appliance manual — BOSTON 2 40 RS (GC 41-077-85), BOSTON 2 50 RS (GC 41-077-86), BOSTON 2 60 RS (GC 41-077-87), BOSTON 2 70 RS (GC 41-077-88), BOSTON 2 80 RS (GC 41-077-89)
manualmanualBAXI appliance manual — BOSTON 40 OF (GC 41-077-61), BOSTON 50 OF (GC 41-077-62), BOSTON 60 OF (GC 41-077-63), BOSTON 70 0F (GC 41-077-64), BOSTON 80 OF (GC 41-077-65)
manualmanualBAXI appliance manual — BOSTON 40 RS (GC 41-077-66), BOSTON 50 RS (GC 41-077-67), BOSTON 60 RS (GC 41-077-68), BOSTON 70 RS (GC 41-077-69), BOSTON 80 RS (GC 41-077-70)
manualmanualBAXI appliance manual — FS 401 OF - FREE STANDING BOILER (GC 41-077-22), FS 401S OF - FREE STANDING BOILER (GC 41-077-19), FS 501 OF - FREE STANDING BOILER (GC 41-077-23), FS 501S OF - FREE STANDING BOILER (GC 41-077-20), FS 601 OF - FREE STANDING BOILER (GC 41-077-24), FS 601S OF - FREE STANDING BOILER (GC 41-077-21)
manualmanualBAXI appliance manual — FS 401 RS - FREE STANDING BOILER (GC 41-077-13), FS 501 RS - FREE STANDING BOILER (GC 41-077-14), FS 501S RS - FREE STANDING BOILER (GC 41-077-12)
manualmanualBAXI appliance manual — FS 601 RS - FREE STANDING BOILER (GC 41-077-28), FS 601S RS - FREE STANDING BOILER (GC 41-077-25), FS 701 RS - FREE STANDING BOILER (GC 41-077-29), FS 701S RS - FREE STANDING BOILER (GC 41-077-26), FS 801 RS - FREE STANDING BOILER (GC 41-077-30), FS 801S RS - FREE STANDING BOILER (GC 41-077-27)
manualmanualBAXI appliance manual — FS 701 OF - FREE STANDING BOILER (GC 41-077-17), FS 701S OF - FREE STANDING BOILER (GC 41-077-15), FS 801 OF - FREE STANDING BOILER (GC 41-077-18), FS 801S OF - FREE STANDING BOILER (GC 41-077-16)
manualmanualBAXI appliance manual — WM 20/3 RS (GC 41-077-39), WM 30/3 RS (GC 41-077-36), WM 38/3 RS (GC 41-077-35), WM 51/3 RS (GC 41-077-34)
manualmanualBAXI appliance manual — WM 281 RS (GC 41-077-07), WM 381 RS (GC 41-077-05), WM 532 RS (GC 41-077-06)
manualmanualBAXI appliance manual — WM 282 RS (GC 41-077-31), WM 382 RS (GC 41-077-32), WM 512 RS (GC 41-077-33)
manualmanualBAXI appliance manual — WM 40/3 OF (GC 41-077-38), WM 55/3 OF (GC 41-077-37)
manualmanualBAXI appliance manual — WM 511 RS (GC 41-077-08)
manualmanualBAXI appliance manual — WM 60/3 RS (GC 41-077-40)
manualNo technical questions yet for this part.
