Vokera

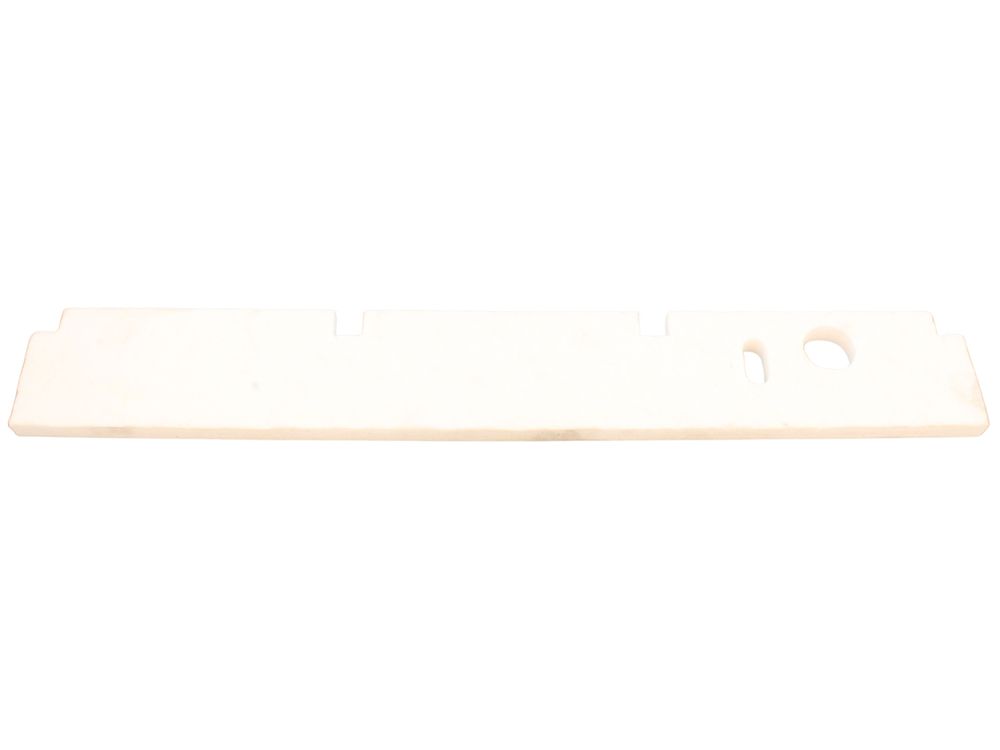

Vokera Upper Insulating Panel 1016
Upper insulating panel for the heat exchanger on selected Vokera gas boilers.
At a glance
- Also known as 1530973
£4.81
£4.01 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The upper insulating panel is a Vokera heat exchanger component that sits above the heat exchanger body on a range of older Vokera gas boilers. It provides thermal insulation around the upper section of the heat exchanger, limiting heat loss to surrounding components and the casing. The part carries the Vokera part number 1016 and supersedes the earlier code 8887.
Signs this part needs replacing
- Visible cracking, crumbling or breakdown of the panel material
- Panel detached from its seating above the heat exchanger
- Discolouration or scorching indicating prolonged heat exposure
- Moisture contamination or softening of the insulation
- Heat damage or discolouration to nearby components and wiring
Before you order
- Confirm the boiler model and GC number against the fitment list above
- Check the existing panel for the Vokera part number 1016 or the earlier code 8887
- Inspect the heat exchanger and surrounding seals for related damage before reassembly
- Verify the appliance is isolated from gas and power before any work begins
Compliance
| GC number | 793-499 |
|---|---|
| Alternative numbers | 1530973 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VOKERA ECLIPSE 216 ESS | 41-094-19 | 41-094-19 | — | — |
| VOKERA ECLIPSE 226 ESS | 41-094-20 | 41-094-20 | — | — |
| VOKERA ECLIPSE ESC | 47-094-24 | 47-094-24 | — | — |
| VOKERA HYDRA | 47-094-36 | 47-094-36 | — | — |
| VOKERA HYDRA 26 LPG | 47-094-37 | 47-094-37 | — | — |
| VOKERA HYDRA 26 NG | 47-094-36 | 47-094-36 | — | — |
| VOKERA PINNACLE 16 | 41-094-23 | 41-094-23 | — | — |
| VOKERA PINNACLE 16 LPG | 41-094-25 | 41-094-25 | — | — |
| VOKERA PINNACLE 26 | 41-094-24 | 41-094-24 | — | — |
| VOKERA PINNACLE 26 LPG | 41-094-26 | 41-094-26 | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VOKERA appliance manual — ECLIPSE 216 ESS (GC 41-094-19), ECLIPSE 226 ESS (GC 41-094-20)
manualmanualVOKERA appliance manual — ECLIPSE ESC (GC 47-094-24)
manualmanualVOKERA appliance manual — HYDRA (GC 47-094-36), HYDRA 26 LPG (GC 47-094-37), HYDRA 26 NG (GC 47-094-36)
manualmanualVOKERA appliance manual — PINNACLE 16 (GC 41-094-23), PINNACLE 16 LPG (GC 41-094-25), PINNACLE 26 (GC 41-094-24), PINNACLE 26 LPG (GC 41-094-26)
manualNo technical questions yet for this part.
