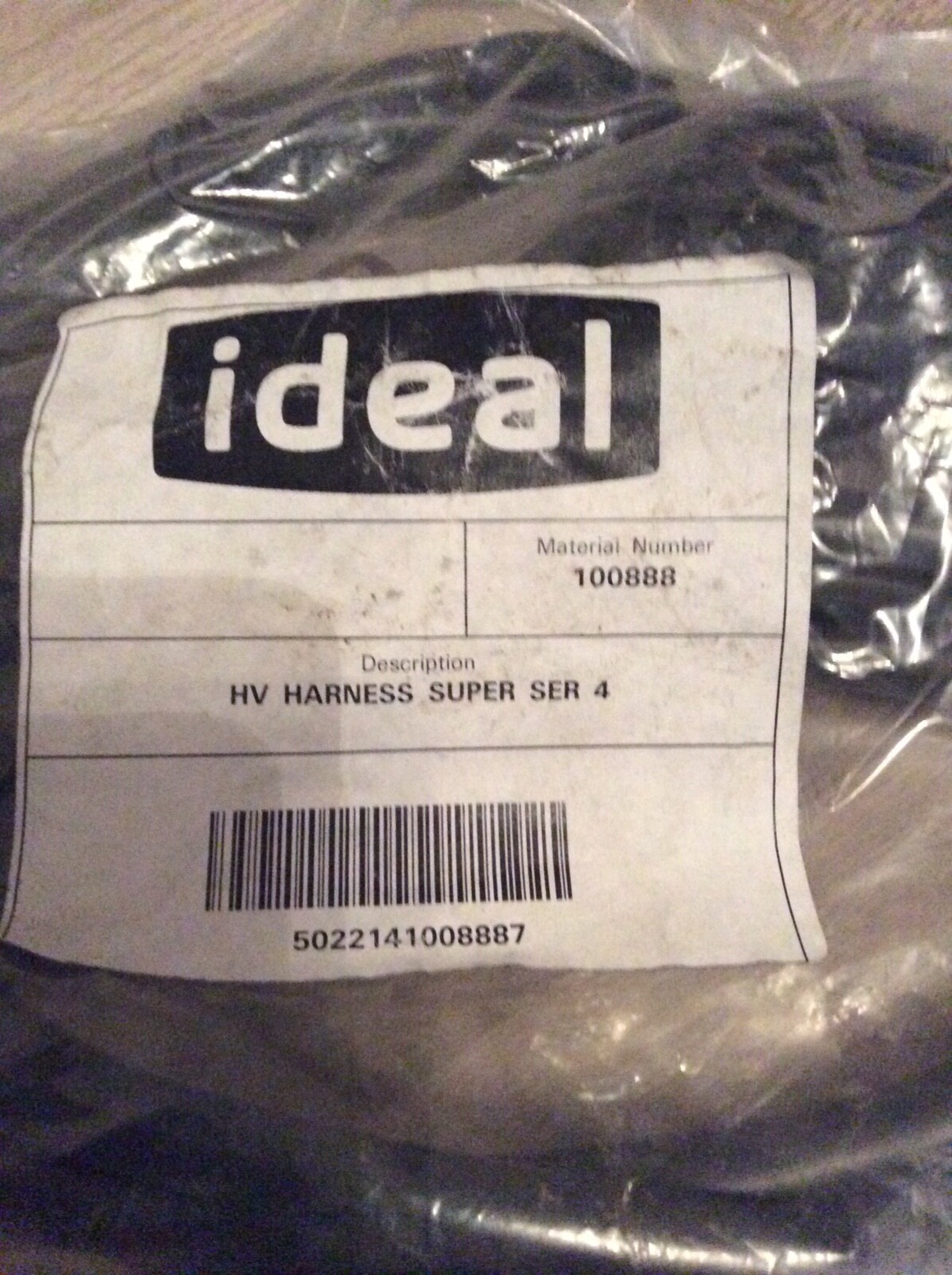

Ideal HV Harness Super Ser 4 100888
Ideal 100888 HV harness for Ideal Commercial Super Ser 4 appliances, routing the high-voltage electrical connections between components.
At a glance
- Part type: HV harness
- Also known as 8904160
£182.46
£152.05 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 100888 is a high-voltage (HV) wiring harness supplied for Ideal Commercial appliances in the Super Ser 4 range. It carries the electrical connections between the appliance's control components, so a damaged or degraded harness can interrupt ignition, sequencing or safety circuits. The assembly is supplied as a complete harness with its fitted plugs and terminals.
Signs this part needs replacing
- The appliance fails to ignite or drops out mid-sequence with no obvious mechanical cause
- Intermittent faults that change when the harness or its plugs are moved
- Error or lockout codes that return after resetting the appliance
- Visible damage to the harness: chafed or cracked insulation, scorched or discoloured conductors
- Loose, corroded or heat-damaged terminals in the harness plugs
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering
- Check the existing harness part number and cross-reference it with 8904160
- Inspect the harness plugs and any associated seals or grommets for wear, and replace them if damaged
- Isolate the electrical supply and follow the manufacturer's wiring diagram when fitting
Mechanical
| Part type | HV Harness |
|---|---|
| Appliance family | Super Ser 4 |
Compliance
| Manufacturer part number (MPN) | 100888 |
|---|---|
| Barcode / EAN | 5022141008887 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 8904160 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
