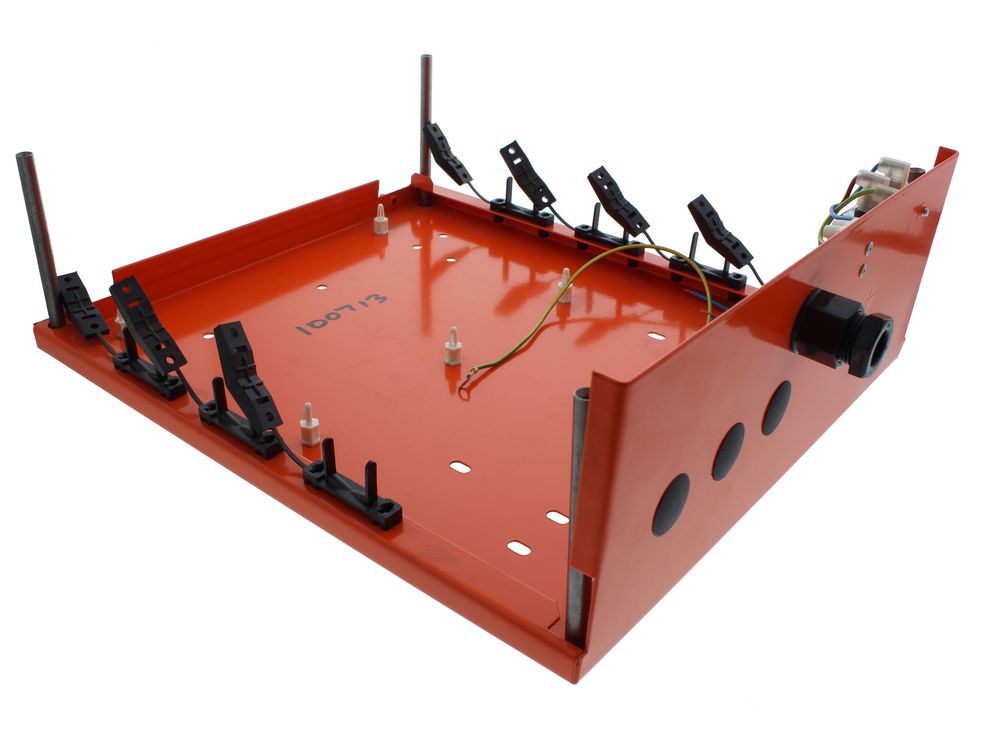

Ideal Control Box Assembly Super 4 100713
Ideal 100713 Control Box Assembly Super 4, a control box and panel assembly for Ideal Commercial appliances.
At a glance
- Part type: Control Box, Panels & Accessories
- Also known as 1175314
£508.30
£423.58 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 100713 Control Box Assembly Super 4 is the control housing and panel assembly used on Ideal Commercial appliances. It carries the controls and electrical connections that govern the appliance's operating sequence, so the boiler responds correctly to demand from the thermostat and programmer. It is supplied as an Ideal spare and is identified by part number 100713.
Signs this part needs replacing
- The appliance fails to respond to a call for heat from the thermostat or programmer.
- The control panel or display is blank, flickering or unresponsive when power is present.
- The appliance locks out repeatedly with no clear fault from the gas or water side.
- Visible heat damage, scorching or corrosion on the control housing or its connections.
- Loose, brittle or discoloured wiring terminations at the control box.
Before you order
- Confirm the appliance model and serial number against the compatibility list, as control boxes vary between Ideal Commercial ranges.
- Check the existing control box part number on the appliance or in the manufacturer's literature before ordering.
- Note the alternative number 1175314 when cross-referencing against older documentation or stock records.
- Work on the control box involves the appliance's electrical supply; isolate the power and follow the manufacturer's instructions.
Mechanical
| Part type | Control Box, Panels & Accessories |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 100713 |
|---|---|
| Barcode / EAN | 5022141007132 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1175314 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
