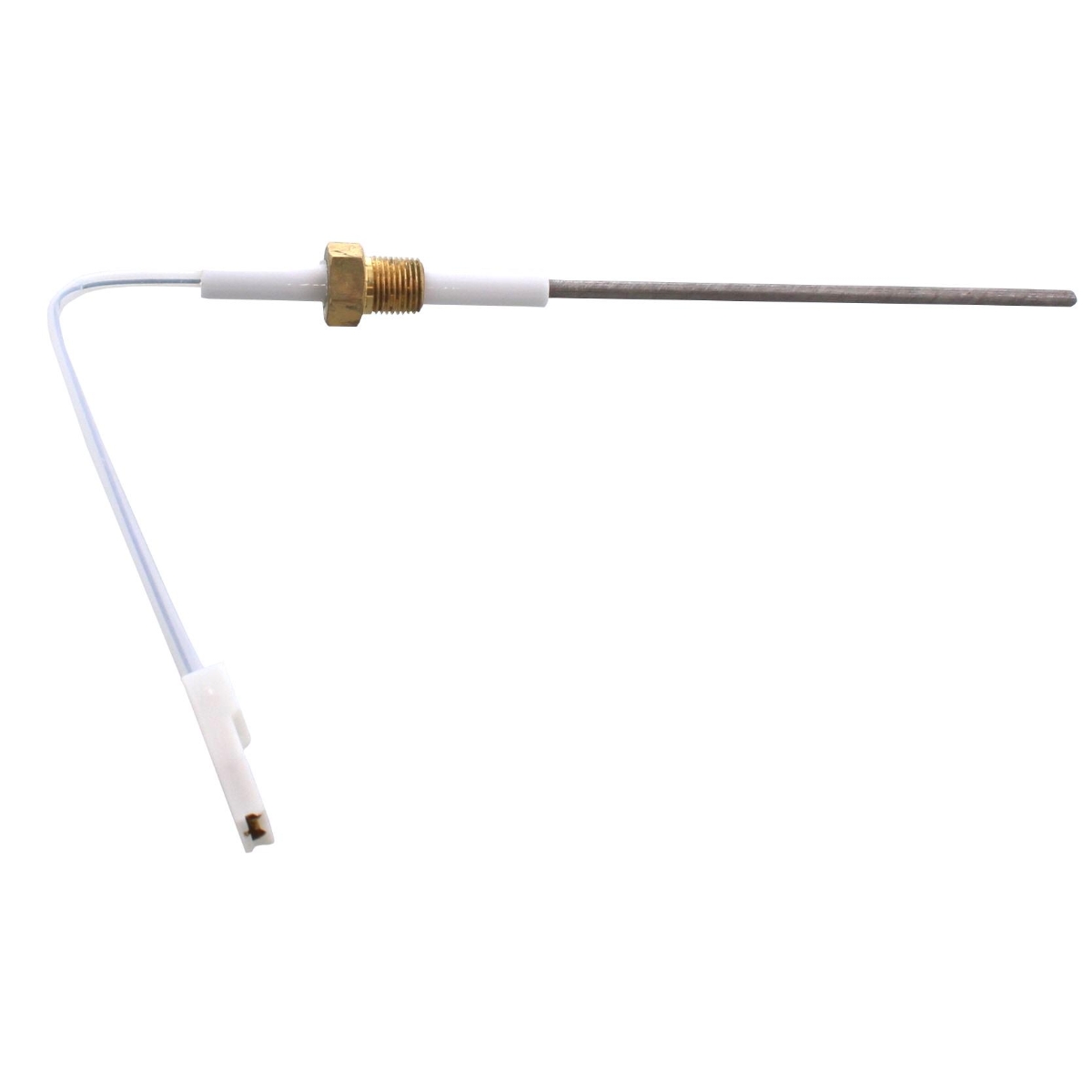

Ideal Flame Detection Electrode 100612
Ideal flame detection electrode probe assembly, part 100612, for Concord Super Series 4 commercial boilers; senses flame presence at the burner.
At a glance
- Part type: Electrodes
- Also known as 1175304
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£38.92
£32.43 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal flame detection electrode probe assembly, part number 100612, is a sensing component fitted to Ideal Commercial boilers. It monitors the burner for the presence of a flame and reports that signal back to the boiler control, which stops the gas supply if no flame is proven. It is used across the Ideal Commercial Concord Super Series 4 appliance family.
Signs this part needs replacing
- The boiler locks out shortly after ignition, or fails to establish a flame signal at all.
- Repeated lockouts that clear on reset but return on the next demand for heat.
- Spark is present and the gas valve opens, but the burner is not proven.
- Intermittent lockouts, often more frequent in damp or cold conditions.
- Flame signal or flame detection faults flagged on the boiler fault display.
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering.
- Cross-reference the alternative part number 1175304 when checking older stock or documentation.
- Inspect the electrode lead and its insulation for cracking or contamination while the burner is open.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Electrodes & Ignitions |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 100612 |
|---|---|
| Barcode / EAN | 5022141006128 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1175304 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD SUPER SERIES 4 - HORIZONTAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 4 - VERTICAL | — | — | — | |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
