Ideal Reset Switch Harness Super4 100611
Ideal 100611 reset switch harness for Concord Super Series 4 commercial appliances, supplied as a wiring harness for the reset switch circuit.
At a glance
- Part type: Wiring
- Also known as 1175303
£27.67
£23.06 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

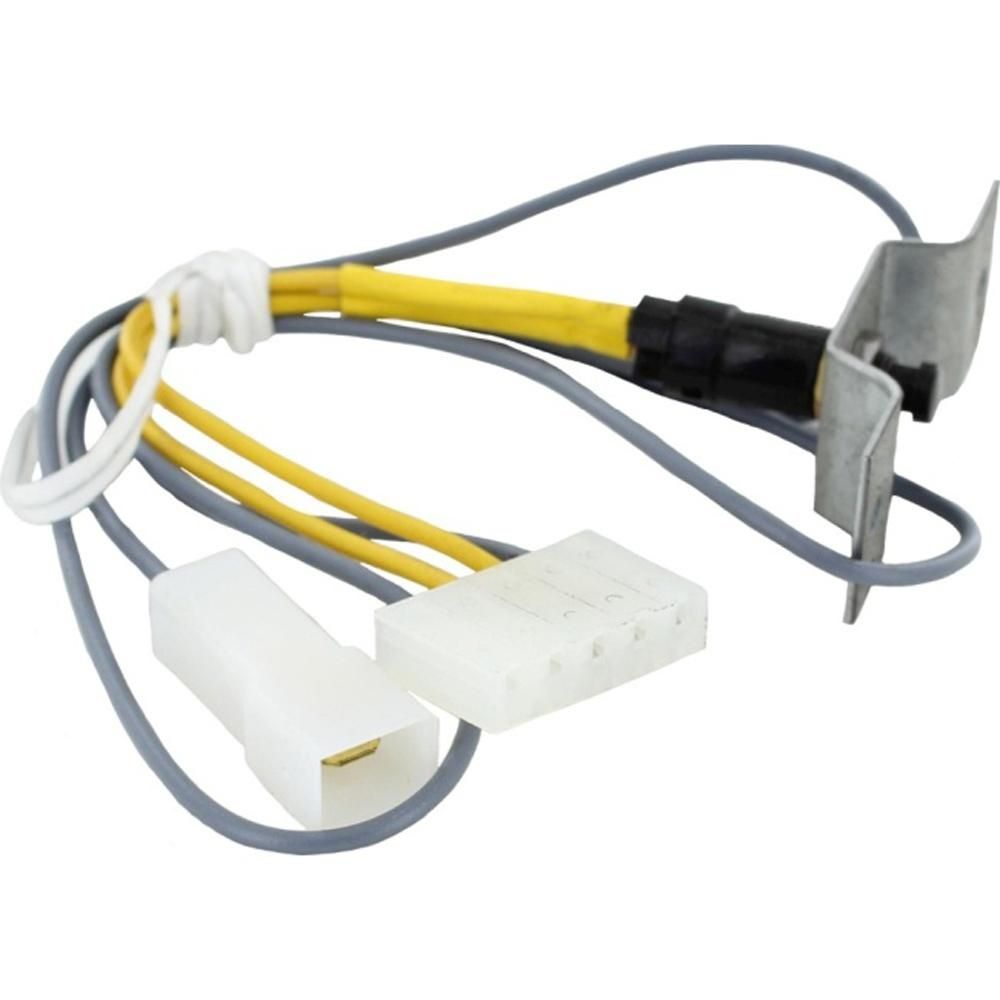

The Ideal 100611 is a reset switch harness — a wiring lead that connects the reset switch to the control circuit on Ideal Commercial Concord Super Series 4 appliances. It is manufactured by Ideal as a direct replacement electrical spare for the Super Series 4 range. The harness carries the reset signal so the appliance can be cleared and restarted after a lockout condition.
Signs this part needs replacing
- The reset switch has no effect when pressed and the appliance stays in lockout
- Reset works intermittently, or only when the harness is moved or flexed
- Visible damage to the lead — chafed insulation, scorching, or a broken conductor
- Loose or corroded terminals at the reset switch or the control board end
- Fault codes or lockouts that return immediately after a reset attempt
Before you order
- Confirm the appliance model and serial number against the compatibility list, as the Super Series 4 Horizontal and Vertical variants use different assemblies elsewhere on the unit
- Check the existing harness against the part number 100611 and the alternative number 1175303 before ordering
- Inspect the reset switch itself and any associated seals or gaskets while the appliance is open, and replace them at the same time if worn
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 100611 |
|---|---|
| Barcode / EAN | 5022141006111 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1175303 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD SUPER SERIES 4 - HORIZONTAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 4 - VERTICAL | — | — | — | |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
