Vokera

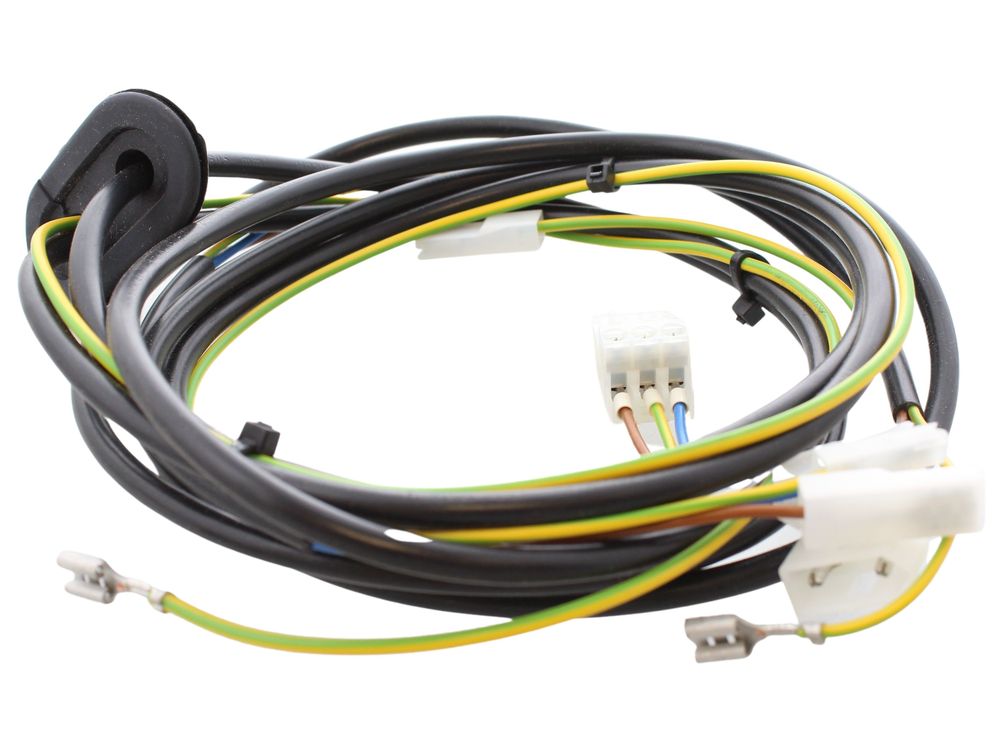

Vokera Wiring Harness 10028600
Vokera wiring harness 10028600 linking CN1 to the fan power supply and CN2 to the ignition transformer.
At a glance
- Also known as 1532309
£52.99
£44.16 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is a Vokera wiring harness, part number 10028600, used on Mynute HE and Unica gas boiler appliances. It carries the connections from CN1 to the fan power supply and from CN2 to the ignition transformer. The harness forms part of the boiler's internal electrical circuit, linking the control side to the fan and ignition components.
Signs this part needs replacing
- The fan does not run or runs intermittently despite a known-good fan.
- The boiler fails to ignite, with no spark at the ignition electrode.
- Fault codes or lockouts that point to fan or ignition circuits.
- Visible damage to the harness, such as chafed insulation, scorching or a loose plug.
- Intermittent operation that changes when the harness or its connectors are moved.
Before you order
- Confirm your appliance model against the fit list above.
- Check the existing harness part number and connector layout before removal.
- Inspect the CN1 and CN2 plugs and the mating sockets for damage or corrosion.
- Isolate the electrical supply to the boiler before carrying out any work.
Compliance
| Alternative numbers | 1532309 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VOKERA MYNUTE 12HE | 41-094-54 | 41-094-54 | — | — |
| VOKERA MYNUTE 15HE | 41-094-56 | 41-094-56 | — | — |
| VOKERA MYNUTE 15HE LPG | 41-094-57 | 41-094-57 | — | — |
| VOKERA MYNUTE 20HE | 41-094-58 | 41-094-58 | — | — |
| VOKERA MYNUTE 20HE LPG | 41-094-59 | 41-094-59 | — | — |
| VOKERA MYNUTE 25HE | 41-094-60 | 41-094-60 | — | — |
| VOKERA MYNUTE 25HE LPG | 41-094-61 | 41-094-61 | — | — |
| VOKERA UNICA 28BS | — | — | — | |
| VOKERA UNICA 28HE | 47-094-83 | 47-094-83 | — | — |
| VOKERA UNICA 28HE LPG | 47-094-84 | 47-094-84 | — | — |
Showing 10 of 15 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VOKERA appliance manual — MYNUTE 12HE (GC 41-094-54), MYNUTE 15HE (GC 41-094-56), MYNUTE 15HE LPG (GC 41-094-57), MYNUTE 20HE (GC 41-094-58), MYNUTE 20HE LPG (GC 41-094-59), MYNUTE 25HE (GC 41-094-60), MYNUTE 25HE LPG (GC 41-094-61)
manualmanualVOKERA appliance manual — UNICA 28HE (GC 47-094-83), UNICA 28HE LPG (GC 47-094-84)
manualNo technical questions yet for this part.
