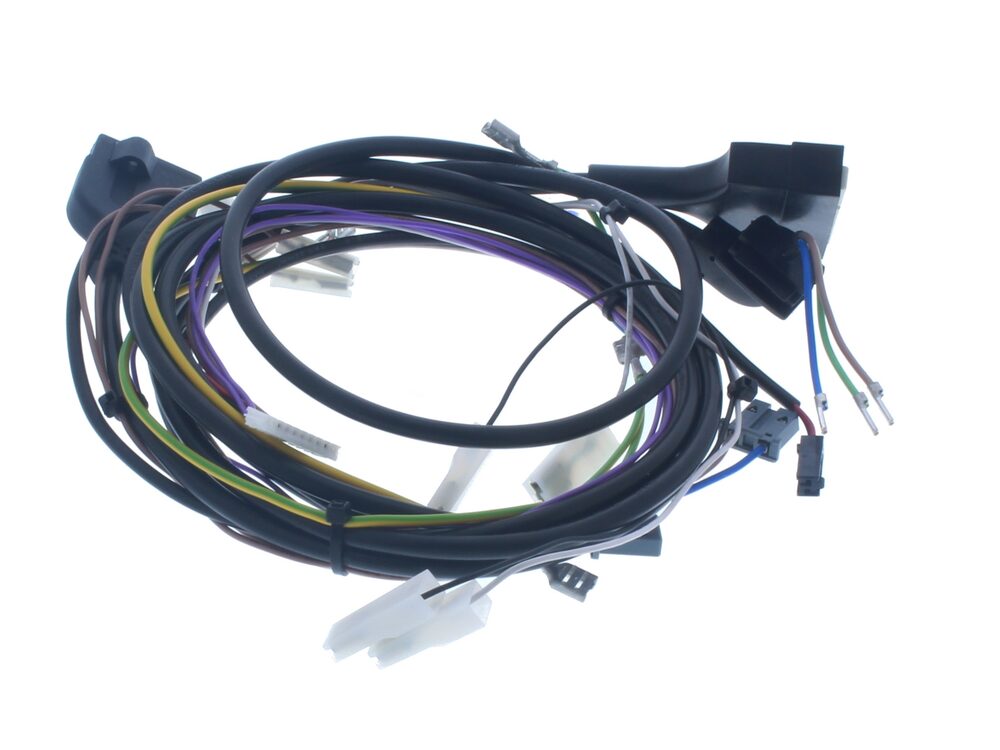

Vokera Wiring Harness 10027558
Vokera wiring harness 10027558 for Compact HE and Sabre HE gas boilers, linking the PCB to sensors, switches and valves.
At a glance
- Also known as 1531754
£101.05
£84.21 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vokera 10027558 is a wiring harness for Vokera Compact HE and Sabre HE gas boilers. It forms the main electrical loom between the printed circuit board and the boiler's sensing and control components, carrying low-voltage signals and mains feeds around the appliance. The harness terminates at the PCB, ground faston frame, flow switch, pump, diverter valve, H20 pressure switch, condense pressure switch, gas valve modulator and safety coils, and the DHW NTC.
Signs this part needs replacing
- Intermittent boiler operation, lockouts or fault codes traced to a broken or high-resistance conductor in the loom
- Cracked, brittle or heat-damaged insulation on one or more harness legs
- Corroded, loose or discoloured faston terminals at the frame, flow switch or pressure switches
- Pump, diverter valve, gas valve or DHW NTC failing to receive a signal despite the component testing correctly
- Visible chafing, pinching or rodent damage along the harness route
Before you order
- Confirm the boiler model and GC number against the fit list above, as the harness is specific to the Compact HE and Sabre HE ranges
- Check the connector count and leg layout on the existing harness matches the connections listed here
- Isolate the electrical supply and verify the boiler is safe to work on before removing the old harness
- Inspect the PCB and component terminals for damage that may have caused the harness failure
Mechanical
| Part type | WIRING |
|---|
Compliance
| Manufacturer part number (MPN) | 10027558 |
|---|---|
| GC number | H40-262 |
| Alternative numbers | 1531754 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VOKERA COMPACT 25HE B RATED | 47-094-73 | 47-094-73 | — | — |
| VOKERA COMPACT 25HE LPG B RATED | 47-094-74 | 47-094-74 | — | — |
| VOKERA COMPACT 29HE B RATED | 47-094-75 | 47-094-75 | — | — |
| VOKERA COMPACT 29HE LPG B RATED | 47-094-76 | 47-094-76 | — | — |
| VOKERA COMPACT 35HE B RATED | 47-094-77 | 47-094-77 | — | — |
| VOKERA COMPACT 35HE LPG B RATED | 47-094-78 | 47-094-78 | — | — |
| VOKERA SABRE 25HE | 47-094-70 | 47-094-70 | — | — |
| VOKERA SABRE 29HE | 47-094-71 | 47-094-71 | — | — |
| VOKERA SABRE 29HE SYSTEM | 41-094-43 | 41-094-43 | — | — |
| VOKERA SABRE 35HE | 47-094-72 | 47-094-72 | — | — |
Showing 10 of 15 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VOKERA appliance manual — COMPACT 25HE B RATED (GC 47-094-73), COMPACT 25HE LPG B RATED (GC 47-094-74), COMPACT 29HE B RATED (GC 47-094-75), COMPACT 29HE LPG B RATED (GC 47-094-76), COMPACT 35HE B RATED (GC 47-094-77), COMPACT 35HE LPG B RATED (GC 47-094-78)
manualmanualVOKERA appliance manual — SABRE 25HE (GC 47-094-70), SABRE 29HE (GC 47-094-71), SABRE 35HE (GC 47-094-72)
manualNo technical questions yet for this part.
