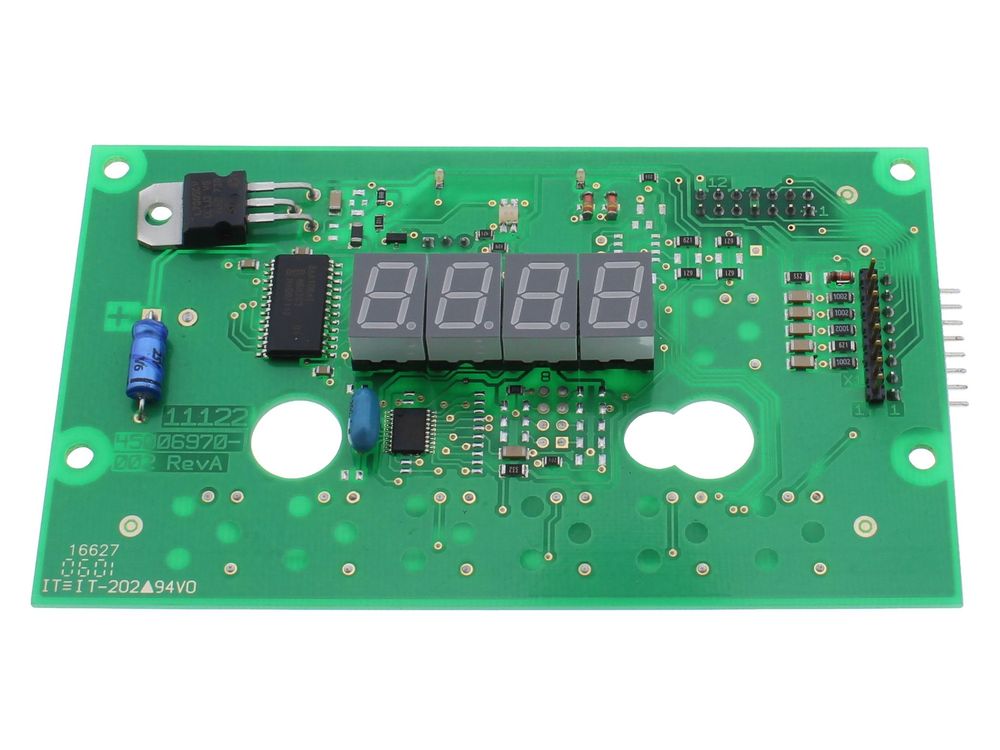

Vokera Display PCB 10023297
Display printed circuit board for Vokera Hydra and Pinnacle gas boilers, part number 10023297.
At a glance
- Also known as 1530683
£189.79
£158.16 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vokera display PCB, part number 10023297, is the printed circuit board that drives the user display on Vokera Hydra and Pinnacle gas boilers. It handles the readout of boiler status, temperature and fault information at the appliance fascia. The board is a serviceable component and is replaced as a complete unit.
Signs this part needs replacing
- The fascia display is completely blank while the boiler still runs
- Segments or digits are missing, dim or erratic
- The display flickers, freezes or resets during operation
- Fault codes or status information no longer appear on the readout
- The display responds intermittently or not at all to the boiler controls
Before you order
- Confirm your boiler model against the fitment list above before ordering
- Check that the fault lies with the display board rather than the main PCB or the wiring harness between them
- Inspect the board connector and ribbon for damage, moisture or poor seating before condemning the board
- Isolate the electrical supply to the boiler before removing or fitting any PCB
Compliance
| GC number | H03-348 |
|---|---|
| Alternative numbers | 1530683 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VOKERA HYDRA | 47-094-36 | 47-094-36 | — | — |
| VOKERA HYDRA 26 LPG | 47-094-37 | 47-094-37 | — | — |
| VOKERA HYDRA 26 NG | 47-094-36 | 47-094-36 | — | — |
| VOKERA PINNACLE 16 | 41-094-23 | 41-094-23 | — | — |
| VOKERA PINNACLE 16 LPG | 41-094-25 | 41-094-25 | — | — |
| VOKERA PINNACLE 26 | 41-094-24 | 41-094-24 | — | — |
| VOKERA PINNACLE 26 LPG | 41-094-26 | 41-094-26 | — | — |
| VOKERA VOKERA HYDRA | — | — | — | |
| VOKERA VOKERA HYDRA 26 NG | — | — | — | |
| VOKERA VOKERA PINNACLE 16 | — | — | — |
Showing 10 of 11 compatible appliances.
