Vokera Wiring Harness 10021117

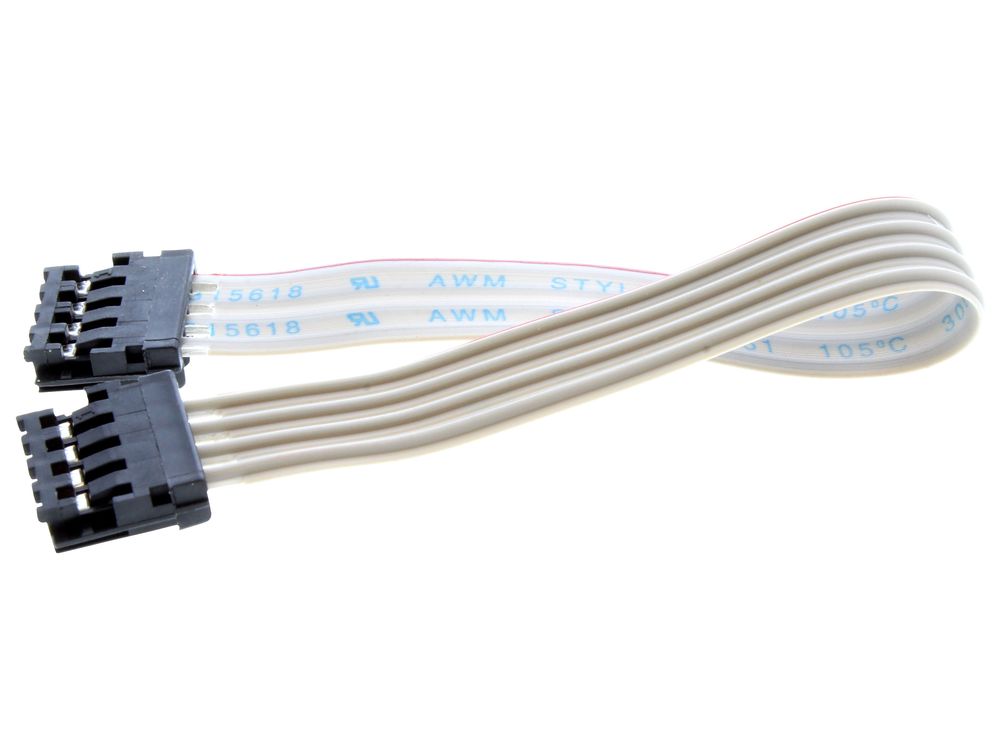

Ribbon cable connecting the main PCB to the display PCB on selected Vokera boilers.
At a glance
- Also known as M9-TO-M2-RIBBON-CABLE--MAIN-PCB-TO-DISPLAY-PCB-REPLACED-2701, USE-10021117, 1531518
£11.09
£9.24 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is a Vokera wiring harness, supplied as a ribbon cable that runs between the main PCB (M9) and the display PCB (M2). It carries the control and display signals between the two boards on the listed Vokera boiler models. It is a plug-in loom section, not a full appliance wiring set.
Signs this part needs replacing
- Blank or dead display panel with the boiler otherwise powered
- Intermittent or flickering display readings
- Display fault or communication error codes logged at the main PCB
- Visible damage, kinks, scorching or a loose connector on the ribbon cable
- Display functions dropping out when the cable or plug is moved
Before you order
- Confirm the exact boiler model against the fit list above
- On Linea 24 Mk3 and Linea 28 Mk3, check the serial number carries an X
- On Sabre HE PLUS 25 and 29, confirm the appliance is the pre-2009 version
- Check the M9 and M2 board connectors are undamaged before fitting the new cable
Compliance
| GC number | H03-443 |
|---|---|
| Alternative numbers | M9-TO-M2-RIBBON-CABLE--MAIN-PCB-TO-DISPLAY-PCB-REPLACED-2701, USE-10021117, 1531518 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VOKERA LINEA 24 MK3 - WITH X IN SERIAL No | 47-094-27 | 47-094-27 | — | — |
| VOKERA LINEA 28 MK3 - WITH X IN SERIAL No | 47-094-28 | 47-094-28 | — | — |
| VOKERA LINEA 726 | 47-094-40 | 47-094-40 | — | — |
| VOKERA LINEA 726 LPG | 47-094-41 | 47-094-41 | — | — |
| VOKERA LINEA 730 | 47-094-42 | 47-094-42 | — | — |
| VOKERA LINEA 730 LPG | 47-094-43 | 47-094-43 | — | — |
| VOKERA LINEA 735 | 47-094-44 | 47-094-44 | — | — |
| VOKERA LINEA 735 LPG | 47-094-45 | 47-094-45 | — | — |
| VOKERA LINEA PLUS AG | 47-094-31 | 47-094-31 | — | — |
| VOKERA MYNUTE 28e | 47-094-66 | 47-094-66 | — | — |
Showing 10 of 28 compatible appliances.
