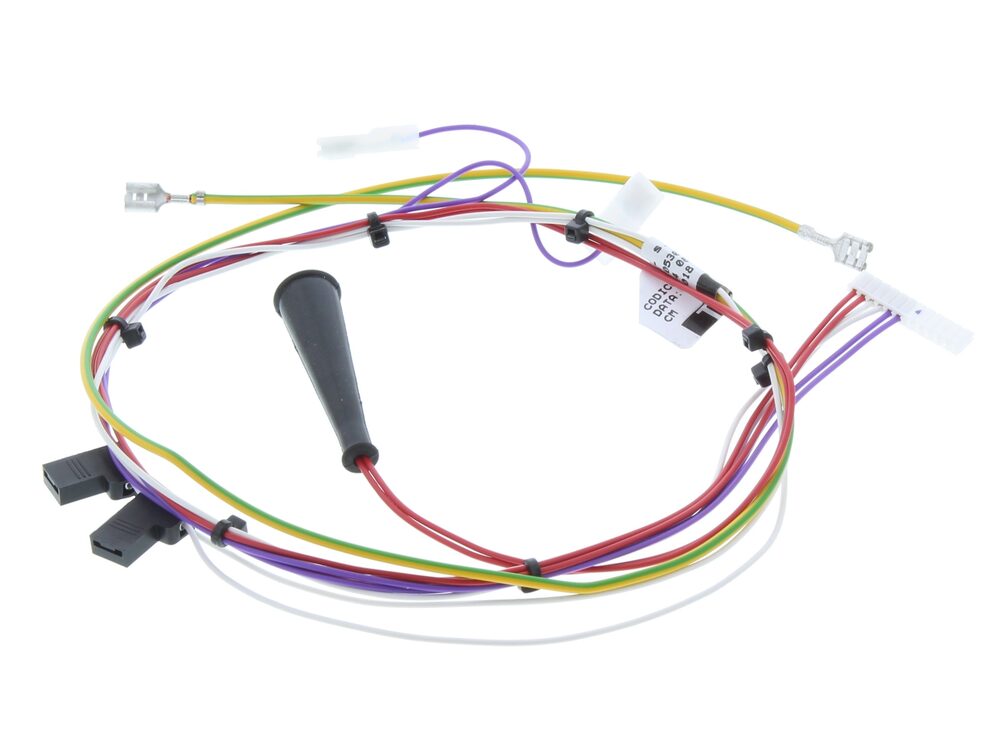

Vokera Wiring Harness 10020530
Wiring harness for Vokera Linea and Syntesi gas boilers, connecting to the hydraulic manifold.
At a glance
- Also known as M5-TO-DHW-NTC-WATER-PD-SWITCH--DHW-FLOW-SWITCH-LOOM, 1530587
£33.97
£28.31 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vokera 10020530 is a wiring harness used on Vokera Linea and Syntesi gas boilers. It connects the boiler wiring to the hydraulic manifold and associated components. It is listed for the Linea and Syntesi models shown below.
Signs this part needs replacing
- Boiler fails to fire or locks out intermittently
- Domestic hot water demand is not recognised, or hot water runs intermittently
- Error codes relating to sensor or manifold connections
- Visible damage to the loom, such as chafed insulation, heat damage, or corroded and loose connectors
- Faults that change when the harness is moved or reseated
Before you order
- Confirm your boiler model against the fit list above
- On Linea 24 Mk3 and Linea 28 Mk3, check that the serial number contains an X
- Inspect the existing harness connectors and routing before ordering
- Check the part number marked on the existing harness where visible
Compliance
| GC number | 794-150 |
|---|---|
| Alternative numbers | M5-TO-DHW-NTC-WATER-PD-SWITCH--DHW-FLOW-SWITCH-LOOM, 1530587 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VOKERA LINEA 24 MK3 - WITH X IN SERIAL No | 47-094-27 | 47-094-27 | — | — |
| VOKERA LINEA 28 MK3 - WITH X IN SERIAL No | 47-094-28 | 47-094-28 | — | — |
| VOKERA LINEA 726 | 47-094-40 | 47-094-40 | — | — |
| VOKERA LINEA 726 LPG | 47-094-41 | 47-094-41 | — | — |
| VOKERA LINEA 730 | 47-094-42 | 47-094-42 | — | — |
| VOKERA LINEA 730 LPG | 47-094-43 | 47-094-43 | — | — |
| VOKERA LINEA 735 | 47-094-44 | 47-094-44 | — | — |
| VOKERA LINEA 735 LPG | 47-094-45 | 47-094-45 | — | — |
| VOKERA LINEA PLUS AG | 47-094-31 | 47-094-31 | — | — |
| VOKERA SYNTESI 35 (B RATED) | 47-094-50 | 47-094-50 | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VOKERA appliance manual — LINEA 24 MK3 - WITH X IN SERIAL No (GC 47-094-27), LINEA 28 MK3 - WITH X IN SERIAL No (GC 47-094-28)
manualmanualVOKERA appliance manual — LINEA 726 (GC 47-094-40), LINEA 726 LPG (GC 47-094-41), LINEA 730 (GC 47-094-42), LINEA 730 LPG (GC 47-094-43), LINEA 735 (GC 47-094-44), LINEA 735 LPG (GC 47-094-45)
manualmanualVOKERA appliance manual — LINEA PLUS AG (GC 47-094-31)
manualmanualVOKERA appliance manual — SYNTESI 35 (B RATED) (GC 47-094-50), SYNTESI 35 LPG (B RATED) (GC 47-094-51)
manualNo technical questions yet for this part.
