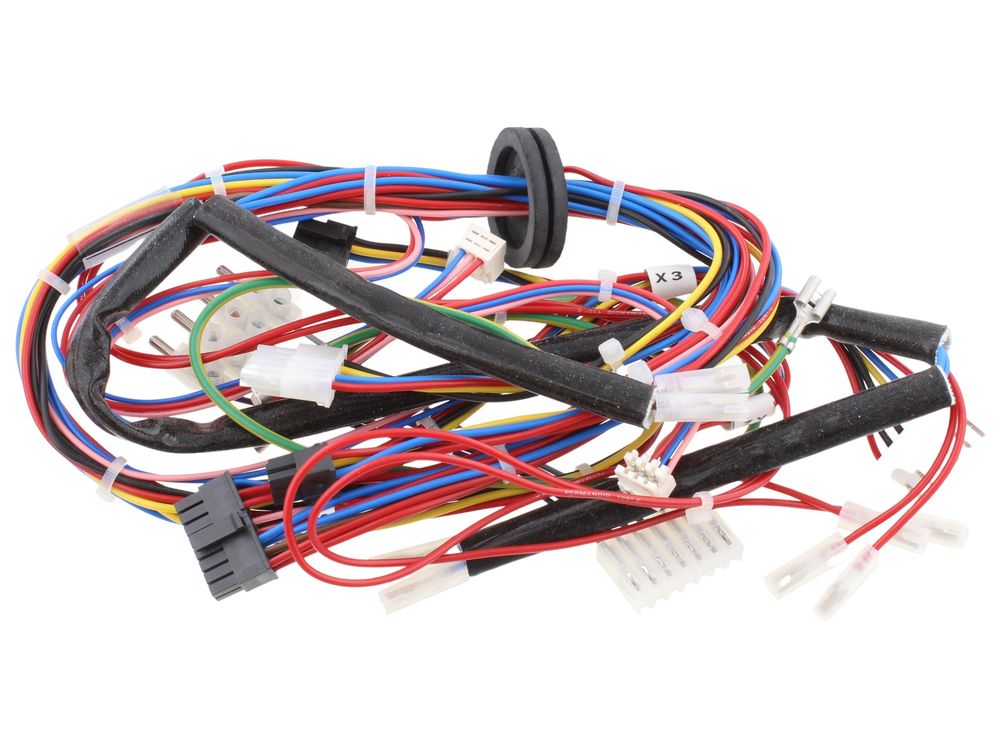

Johnson & Starley Wiring Assembly Low Voltage 1000-0523370
Low voltage wiring assembly for Johnson & Starley Reno 30C and Reno 37C gas boilers.
At a glance
- Also known as 1692042
£101.89
£84.91 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The 1000-0523370 is a low voltage wiring assembly (harness) manufactured by Johnson & Starley for use in its Reno range of gas boilers. It carries low voltage control and signal connections between the boiler's electrical components. It is supplied as a complete harness assembly for service and repair work.
Signs this part needs replacing
- Intermittent boiler operation or faults that come and go when the harness is moved
- The boiler fails to respond to controls or sensors connected through the harness
- Visible damage to the harness, such as chafed, cracked or heat-affected insulation
- Loose, corroded or discoloured connector terminals at either end of the assembly
- Repeated electrical or communication-related fault codes traced to the low voltage circuit
Before you order
- Confirm your appliance is a Johnson & Starley Reno 30C or Reno 37C
- Check the part number on the existing harness against 1000-0523370
- Inspect connector types and pin layout on the existing assembly before removal
- Isolate the electrical supply to the boiler before fitting
Compliance
| Alternative numbers | 1692042 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| JOHNSON & STARLEY JOHNSON AND STARLEY RENO 30C | — | — | — | |
| JOHNSON & STARLEY JOHNSON AND STARLEY RENO 37C | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
