Johnson & Starley

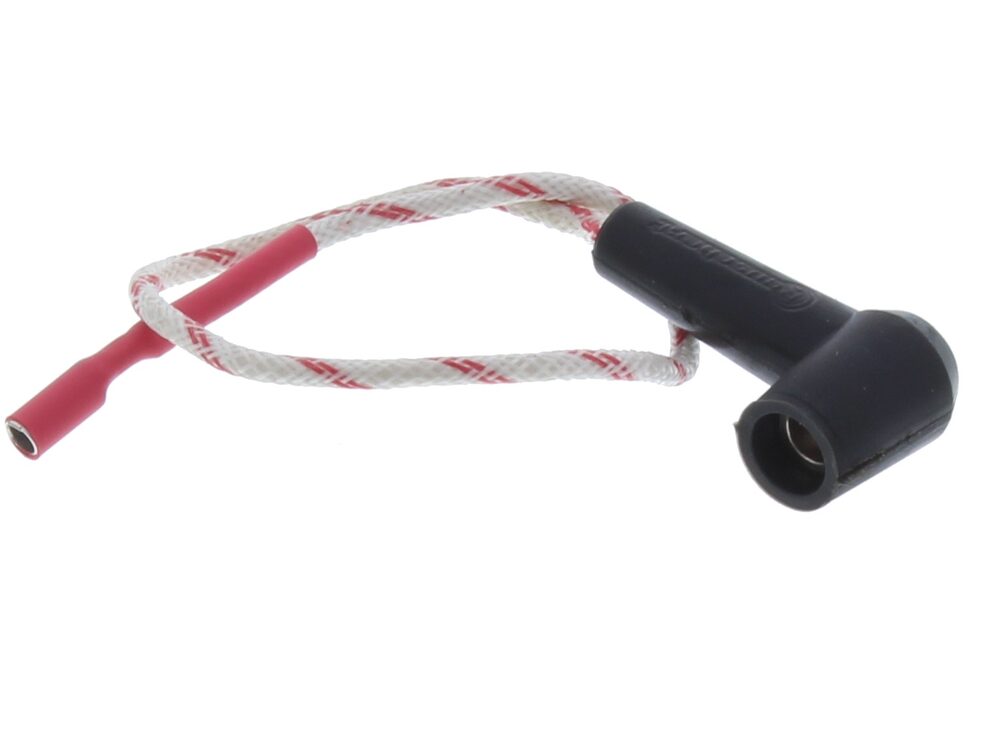

Johnson & Starley Ignition Electrode Lead 1000-0522680
Ignition electrode lead for Johnson & Starley Reno and Renoxtra gas boilers, carrying the spark to the burner.
At a glance
- Part type: ignition electrode lead
- Also known as 1690524
£37.34
£31.12 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Johnson & Starley 1000-0522680 is an ignition electrode lead used on Johnson & Starley Reno and Renoxtra gas boilers. It carries the ignition voltage from the control board to the ignition electrode at the burner. The lead is supplied as a single component for service replacement.
Signs this part needs replacing
- The boiler fails to ignite and goes to lockout, with no spark at the burner.
- Cracking, charring or brittle insulation is visible along the lead.
- Connectors at the electrode or control board are loose, corroded or discoloured.
- Ignition is intermittent, or lockouts recur after servicing.
Before you order
- Check the model and GC number on the appliance data badge against the fit list.
- Compare the lead with the part removed to confirm the connectors and routing match.
- Isolate the electrical supply and gas before fitting.
Compliance
| GC number | H38-938 |
|---|---|
| Barcode / EAN | 5055189902534 |
| Alternative numbers | 1690524 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| JOHNSON & STARLEY JOHNSON AND STARLEY RENO 16H | — | — | — | |
| JOHNSON & STARLEY JOHNSON AND STARLEY RENO 16S | — | — | — | |
| JOHNSON & STARLEY JOHNSON AND STARLEY RENO 25H | — | — | — | |
| JOHNSON & STARLEY JOHNSON AND STARLEY RENO 25S | — | — | — | |
| JOHNSON & STARLEY JOHNSON AND STARLEY RENO 30C | — | — | — | |
| JOHNSON & STARLEY JOHNSON AND STARLEY RENO 31H | — | — | — | |
| JOHNSON & STARLEY JOHNSON AND STARLEY RENO 31S | — | — | — | |
| JOHNSON & STARLEY JOHNSON AND STARLEY RENO 37C | — | — | — | |
| JOHNSON & STARLEY JOHNSON AND STARLEY RENOXTRA 30C / 37C | — | — | — | |
| JOHNSON & STARLEY RENO 16S | 41-416-05 | 41-416-05 | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
JOHNSON & STARLEY appliance manual — RENO 16S (GC 41-416-05), RENO 16S PROPANE (GC 41-416-09), RENO 25S (GC 41-416-02), RENO 25S PROPANE (GC 41-416-12), RENO 31S (GC 41-416-04), RENO 31S PROPANE (GC 41-416-08)
manualmanualJOHNSON & STARLEY appliance manual — RENO 30C (GC 47-416-01), RENO 30C PROPANE (GC 47-416-04), RENO 37C (GC 47-416-02), RENO 37C PROPANE (GC 47-416-03)
manualNo technical questions yet for this part.
