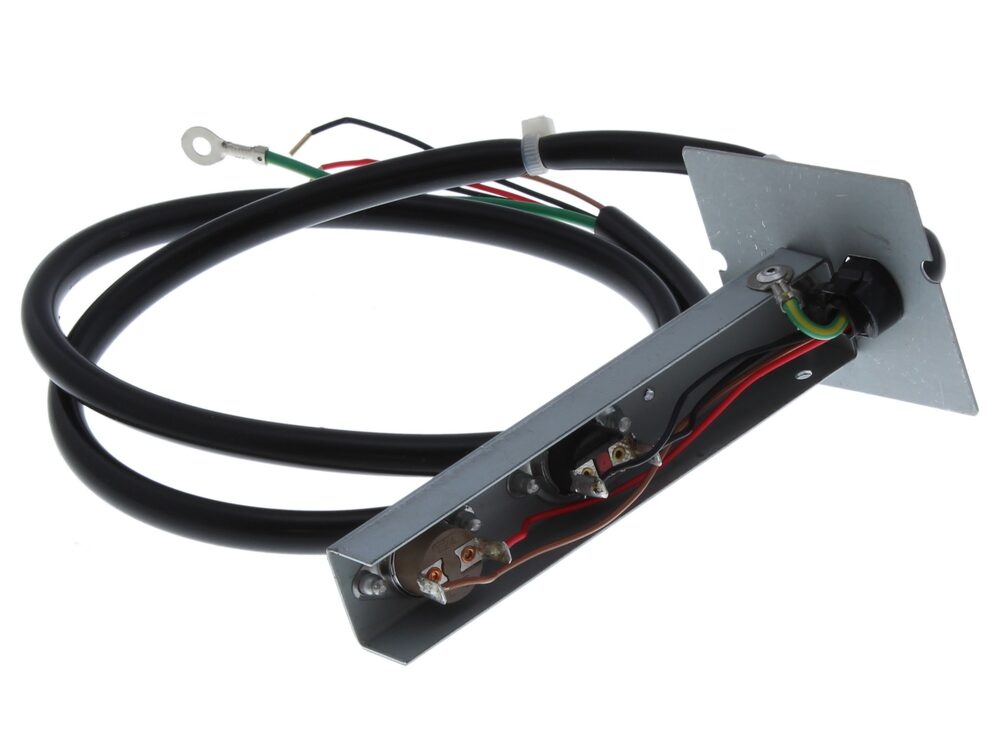

Johnson & Starley Fan & Limit Thermostat 1000-0516125
Fan and limit thermostat (non ET) for Johnson & Starley Hispec warm air units.
At a glance
- Also known as 1690980
£99.70
£83.08 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The fan and limit thermostat (non ET) is a Johnson & Starley control component used on Hispec warm air units. It monitors appliance temperature and controls fan operation, switching the fan on and off in line with the heat demand and acting as a limit safeguard. It is supplied as a non ET variant, so it is not fitted with the ET sensing element used on other versions.
Signs this part needs replacing
- The fan fails to start when the appliance reaches temperature, or runs continuously.
- The appliance locks out or shuts down before reaching its normal operating temperature.
- Erratic fan cycling, with the fan cutting in and out at short intervals.
- Overheating symptoms traced to a limit stat that no longer opens or closes correctly.
- Continuity or resistance readings across the thermostat that fall outside the expected range for the appliance.
Before you order
- Confirm the appliance model against the fit list above, as the non ET variant is not interchangeable with ET versions.
- Check the existing thermostat's part number and terminal arrangement before removal.
- Verify the fault is with the thermostat rather than the fan motor, wiring or air circulation.
- Isolate the appliance electrically and follow the manufacturer's instructions for access and replacement.
Compliance
| GC number | 245-520 |
|---|---|
| Barcode / EAN | 5055189901926 |
| Alternative numbers | 1690980 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| JOHNSON & STARLEY HISPEC J25 WARM AIR UNIT | 42-451-04 | 42-451-04 | — | — |
| JOHNSON & STARLEY HISPEC J25RS WARM AIR UNIT | 42-451-08 | 42-451-08 | — | — |
| JOHNSON & STARLEY HISPEC J32 WARM AIR UNIT - REAR RISING DUCT | 42-416-06 | 42-416-06 | — | — |
| JOHNSON & STARLEY HISPEC J32 WARM AIR UNIT PROPANE | 42-416-07 | 42-416-07 | — | — |
| JOHNSON & STARLEY HISPEC J32 WARM AIR UNIT PROPANE - REAR RISING DUCT | 42-416-08 | 42-416-08 | — | — |
| JOHNSON & STARLEY HISPEC J32 WARM AIR UNIT | 42-451-02 | 42-451-02 | — | — |
| JOHNSON & STARLEY HISPEC M31 WARM AIR UNIT | 42-451-10 | 42-451-10 | — | — |
| JOHNSON & STARLEY JOHNSON AND STARLEY HISPEC J25 | — | — | — | |
| JOHNSON & STARLEY JOHNSON AND STARLEY HISPEC J25RS | — | — | — | |
| JOHNSON & STARLEY JOHNSON AND STARLEY HISPEC J32 | — | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
JOHNSON & STARLEY appliance manual — HISPEC J25 WARM AIR UNIT (GC 42-451-04)
manualmanualJOHNSON & STARLEY appliance manual — HISPEC J25RS WARM AIR UNIT (GC 42-451-08)
manualmanualJOHNSON & STARLEY appliance manual — HISPEC J32 WARM AIR UNIT - REAR RISING DUCT (GC 42-416-06), HISPEC J32 WARM AIR UNIT (GC 42-451-02)
manualmanualJOHNSON & STARLEY appliance manual — HISPEC J32 WARM AIR UNIT PROPANE (GC 42-416-07), HISPEC J32 WARM AIR UNIT PROPANE - REAR RISING DUCT (GC 42-416-08)
manualmanualJOHNSON & STARLEY appliance manual — HISPEC M31 WARM AIR UNIT (GC 42-451-10)
manualNo technical questions yet for this part.
