Johnson & Starley Relay PCB Assembly 1000-0511760

Johnson & Starley

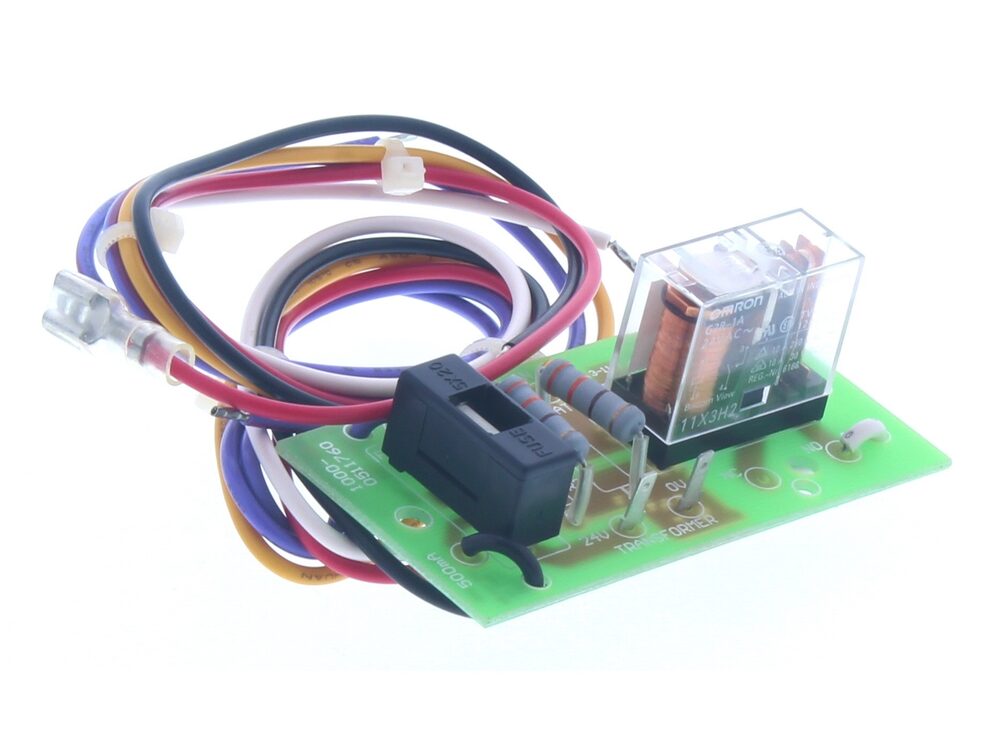

Johnson & Starley Relay PCB Assembly 1000-0511760

Relay PCB assembly for Johnson & Starley Hispec warm air units, part number 1000-0511760.

At a glance

  • Also known as 1690948
Manufacturer part no.
1000-0511760
GC number
245-413
Showing prices

£96.23

£80.19 ex. VAT · VAT at 20%

Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question

Same-day dispatch

Ordered by 4pm Mon–Fri, 10:30am Sat.

30-day returns

Unused, in original packaging.

What it is

The 1000-0511760 is a relay printed circuit board assembly manufactured by Johnson & Starley. It is used in Hispec warm air units, where the relay stage switches the fan and heating circuits in response to control demand. The board is supplied as a complete assembly for service replacement.

Signs this part needs replacing

  • Relay chatter or repeated clicking from the board when there is a call for heat
  • Fan or burner failing to start despite a confirmed control demand
  • Intermittent operation, with the appliance cutting in and out at random
  • Visible burning, pitting or discolouration at the relay contacts or board tracks
  • No response from the appliance to thermostat or control input

Before you order

  • Confirm the appliance model and GC number against the fitment list above
  • Check the part number printed on the existing board matches 1000-0511760
  • Inspect the wiring loom and plug connections for damage before fitting a new board
  • Isolate the electrical supply to the appliance before removing or fitting the board

Not sure which part?

Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
