Alpha
Alpha Pressure Switch 1.027277
At a glance
- Part type: Pressure switch
- Also known as 1257404
Showing prices
£30.04
£25.03 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

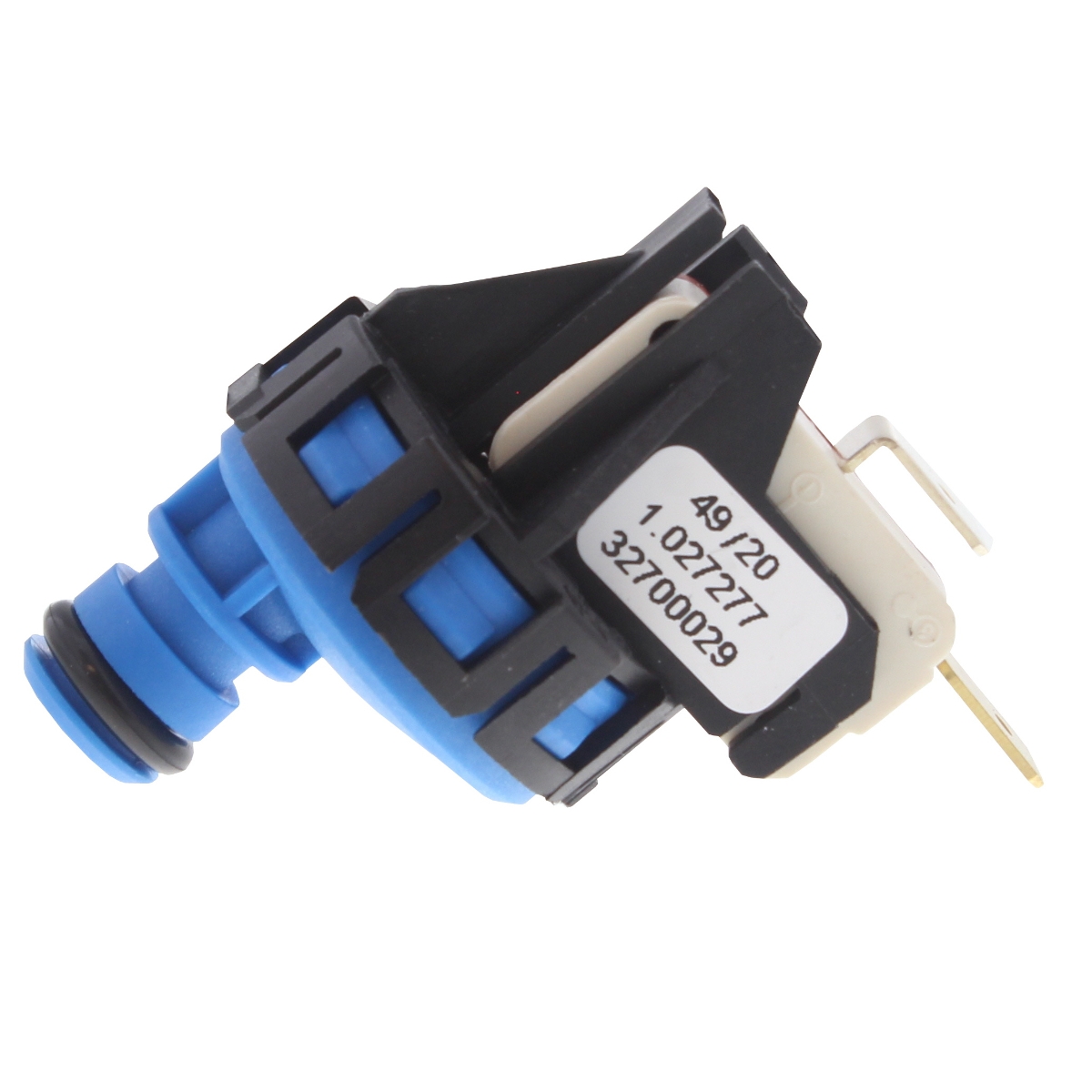

The Alpha 1.027277 is a pressure switch used in Alpha domestic gas boilers. It monitors pressure within the appliance and signals the control board when the required condition is met, allowing the boiler to proceed through its ignition sequence and continue running safely. It is a direct replacement component for the Alpha CD and ECO families.
Signs this part needs replacing
- Boiler locks out during or shortly after the ignition sequence
- Fan or air pressure fault code displayed on the boiler
- Intermittent firing, with the boiler starting on some attempts and failing on others
- Boiler runs briefly then shuts down and repeats the cycle
- No response from the switch when pressure conditions change, confirmed by meter or continuity testing
Before you order
- Confirm the model and GC number against the compatibility list, as several Alpha variants use different switch arrangements
- Check the alternative numbers 1257404 and 027277 against the label on the existing component
- Isolate the electrical supply before removing the old switch and note the wiring positions
- Inspect the sensing tube and its connections for blockage, splits or loose fit, as these can mimic a failed switch
Mechanical
| Part type | Pressure Switches |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 1.027277 |
|---|---|
| Commodity code | 9032 20 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 160805095614, ALPHA1.027277, WATER-PRESSURE-SWITCH, ALPHA1.027277, PRIMARY-PRESSURE-SWITCH-PRIMARY-PRESSURE-SWITCH, 1257404 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA ALPHA CD28C EXTRA LPG | — | — | — | |
| ALPHA ALPHA CD35C | — | — | — | |
| ALPHA ALPHA CD35C LPG | — | — | — | |
| ALPHA ALPHA ECO | — | — | — | |
| ALPHA ALPHA ECO 2 | — | — | — | |
| ALPHA ALPHA ECO 2 BOILER | 47-532-60 | 47-532-60 | — | — |
| ALPHA ALPHA ECO 2 PLUS | — | — | — | |
| ALPHA ALPHA ECO 2 PLUS BOILER | 47-532-63 | 47-532-63 | — | — |
| ALPHA ALPHA ECO BOILER | — | — | — | |
| ALPHA ALPHA INTEC 12S | — | — | — |
Showing 10 of 111 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
ALPHA appliance manual — ALPHA ECO 2 BOILER (GC 47-532-60)
manualmanualALPHA appliance manual — ALPHA ECO 2 PLUS BOILER (GC 47-532-63)
manualmanualALPHA appliance manual — ALPHA ECO BOILER
manualmanualALPHA appliance manual — E-TEC 20NXS (GC 41-532-53), E-TEC 20NXS LPG (GC 41-532-53), E-TEC 30NXS (GC 41-532-54), E-TEC 30NXS LPG (GC 41-532-54), E-TEC 35NXS (GC 41-532-55), E-TEC 35NXS LPG (GC 41-532-55)
manualmanualALPHA appliance manual — E-TEC 20S (GC 41-532-47), E-TEC 20S (LPG), E-TEC 30S (GC 41-532-48), E-TEC 30S (LPG), E-TEC 35S (GC 41-532-52), E-TEC 35S (LPG) (GC 41-532-52)
manualmanualALPHA appliance manual — E-TEC 28 (GC 47-532-69), E-TEC 28 (LPG) (GC 47-532-73), E-TEC 33 (GC 47-532-70), E-TEC 33 (LPG) (GC 47-532-74)
manualmanualALPHA appliance manual — E-TEC 33NX (GC 47-532-82), E-TEC 33NX LPG (GC 47-532-83)
manualmanualALPHA appliance manual — E-TEC HYBRID 33HB
manualmanualALPHA appliance manual — E-TEC PLUS 28 (GC 47-532-77), E-TEC PLUS 28 (LPG) (GC 47-532-77), E-TEC PLUS 33 (GC 47-532-78), E-TEC PLUS 38 (GC 47-532-79), E-TEC PLUS 38 (LPG) (GC 47-532-79)
manualmanualALPHA appliance manual — EVOKE 28 (GC 47-532-71), EVOKE 28 (LPG) (GC 47-532-75), EVOKE 33 (GC 47-532-72), EVOKE 33 (LPG) (GC 47-532-76)
manualmanualALPHA appliance manual — EVOKE 28NX (GC 47-532-84), EVOKE 28NX LPG (GC 47-532-85), EVOKE 33NX (GC 47-532-86), EVOKE 33NX LPG (GC 47-532-87)
manualmanualALPHA appliance manual — INTEC 40GS2
manualmanualALPHA appliance manual — InTEC 12S (GC 41-532-22), InTEC 12S (LPG) (GC 41-532-25), InTEC 18S (GC 41-532-23), InTEC 18S (LPG) (GC 41-532-26), InTEC 28S (GC 41-532-24), InTEC 28S (LPG) (GC 41-532-27)
manualmanualALPHA appliance manual — InTEC 2 20SE (GC 41-532-28), InTEC 2 30SE (GC 41-532-29)
manualmanualALPHA appliance manual — InTEC 2 25X (GC 47-532-61), InTEC 2 28X (GC 47-532-62)
manualmanualALPHA appliance manual — InTEC 2 25XE, InTEC 2 28XE
manualmanualALPHA appliance manual — InTEC 2 26CE (GC 47-532-66), InTEC 2 30CE (GC 47-532-67), InTEC 2 35CE (GC 47-532-68)
manualmanualALPHA appliance manual — InTEC 24X (GC 47-532-45), InTEC 24X (LPG) (GC 47-532-52), InTEC 26C (GC 47-532-47), InTEC 26C (LPG) (GC 47-532-54), InTEC 28X (GC 47-532-46), InTEC 28X (LPG) (GC 47-532-53), InTEC 30C (GC 47-532-48), InTEC 30C (LPG) (GC 47-532-55), InTEC 34C (GC 47-532-49), InTEC 34C (LPG) (GC 47-532-56)
manualmanualALPHA appliance manual — InTEC 30C ErP (GC 47-532-48), InTEC 30C ErP (LPG) (GC 47-532-55), InTEC 34C ErP (GC 47-532-49), InTEC 34C ErP (LPG) (GC 47-532-56)
manualmanualALPHA appliance manual — InTEC 30GS (GC 47-532-50), InTEC 30GS (LPG) (GC 47-532-57), InTEC 40GS (GC 47-532-51), InTEC 40GS (LPG) (GC 47-532-58)
manualmanualALPHA appliance manual — InTEC 30GS ErP (GC 47-532-50), InTEC 30GS ErP (LPG) (GC 47-532-57), InTEC 40GS ErP (GC 47-532-51), InTEC 40GS ErP (LPG) (GC 47-532-58)
manualNo technical questions yet for this part.
