Alpha
Alpha Siphon Plug Condensate Trap 1.024876

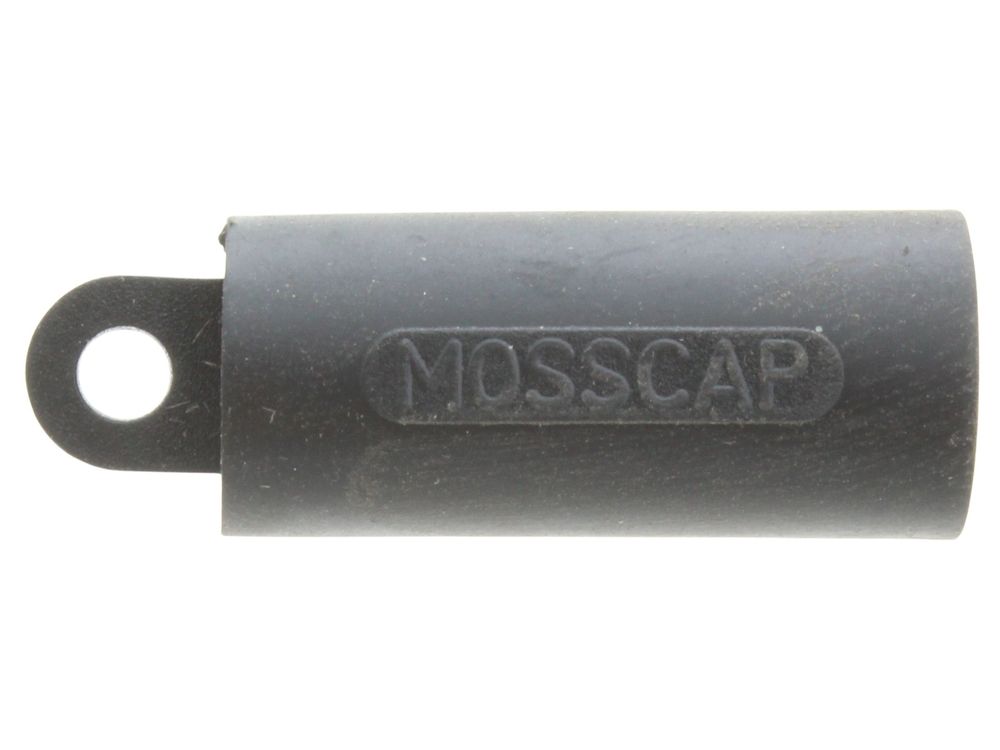

Siphon plug for the condensate trap on Alpha He25 and He33 LPG boilers, part number 1.024876.
At a glance
- Appliance family: Alpha He series LPG boilers
- Also known as 1258093
£1.15
£0.96 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The siphon plug is a component of the condensate trap assembly used on Alpha gas boilers. It seals the siphon body so that condensate collects and discharges correctly rather than escaping into the boiler casing. This part is supplied under Alpha part number 1.024876.
Signs this part needs replacing
- Water or condensate leaking from the siphon or trap area
- Condensate pooling inside the boiler casing or beneath the appliance
- Gurgling or irregular draining from the condensate trap
- Visible cracking, distortion or perished sealing on the plug
- Boiler lockout linked to a blocked or leaking condensate trap
Before you order
- Confirm your boiler model against the fit list above
- Check the existing part number 1.024876 on the component or in the manufacturer's parts list
- Inspect the trap housing and seal faces for damage before fitting
- Isolate the electrical supply and allow the boiler to drain before work begins
Compliance
| Alternative numbers | 1258093 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA HE25 | 47-532-41 | 47-532-41 | — | — |
| ALPHA HE25 (LPG) | 47-532-42 | 47-532-42 | — | — |
| ALPHA HE33 | 47-532-43 | 47-532-43 | — | — |
| ALPHA HE33 (LPG) | 47-532-44 | 47-532-44 | — | — |
