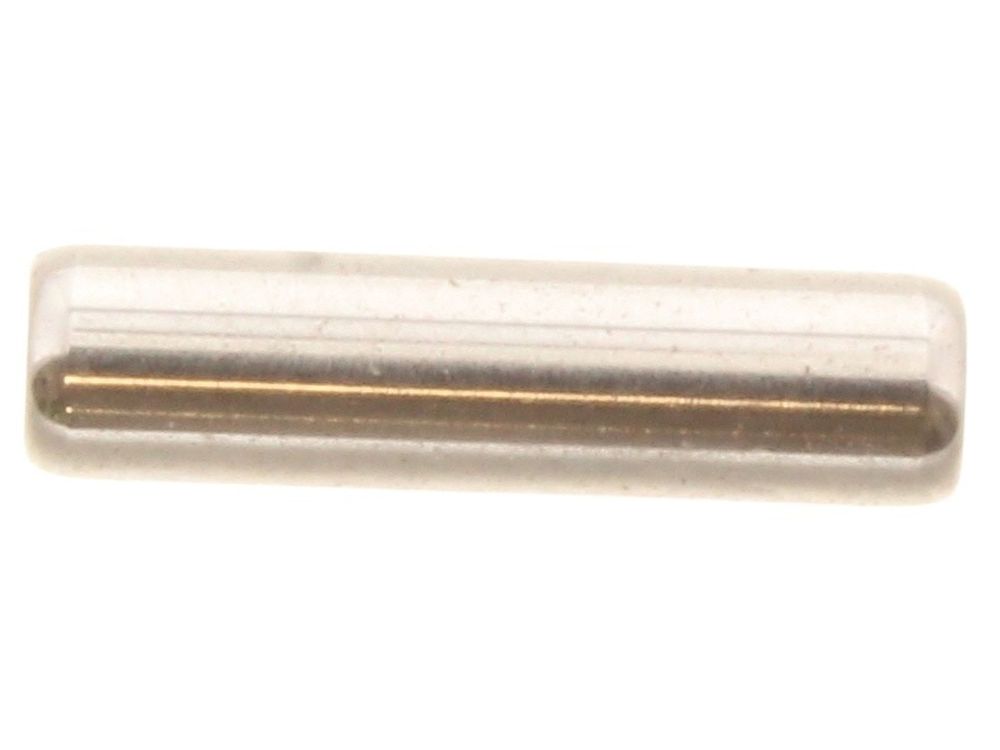

Alpha Hinge Spring Mounting Pin 1.024509
Hinge spring mounting pin for the control panel front cover on Alpha CD and InTEC gas boilers.
At a glance
- Also known as CYLINDRICAL-PIN-CD252835C, 1257805
Showing prices
£0.40
£0.33 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Alpha 1.024509 is a hinge spring mounting pin for the control panel front cover on Alpha gas boilers. It secures the hinge spring assembly that allows the control panel front cover to pivot. This component is used across a range of Alpha CD and InTEC appliances.
Signs this part needs replacing
- Control panel front cover feels loose or does not sit correctly.
- Hinge spring becomes detached or fails to hold tension.
- Cover will not stay in the open or closed position.
- Visible wear, bending or breakage of the mounting pin.
- Difficulty opening or closing the control panel front cover.
Before you order
- Confirm your boiler model is listed in the Fits section.
- Check the GC number where shown against your appliance data badge.
- Verify the existing hinge spring mounting pin matches part number 1.024509.
- Inspect the hinge assembly for other damaged components before ordering.
Compliance
| Alternative numbers | CYLINDRICAL-PIN-CD252835C, 1257805 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA ALPHA CD12S | — | — | — | |
| ALPHA ALPHA CD20S | — | — | — | |
| ALPHA ALPHA CD28C EXTRA | — | — | — | |
| ALPHA ALPHA CD28C EXTRA LPG | — | — | — | |
| ALPHA ALPHA CD35C | — | — | — | |
| ALPHA ALPHA CD35C LPG | — | — | — | |
| ALPHA ALPHA INTEC 12S | — | — | — | |
| ALPHA ALPHA INTEC 12S LPG | — | — | — | |
| ALPHA ALPHA INTEC 18S LPG | — | — | — | |
| ALPHA ALPHA INTEC 26C | — | — | — |
Showing 10 of 81 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
ALPHA appliance manual — CD12S (GC 41-532-16), CD12S (LPG) (GC 41-532-17), CD20S (GC 41-532-18), CD20S (LPG) (GC 41-532-19), CD28S (GC 41-532-20), CD28S (LPG) (GC 41-532-21)
manualmanualALPHA appliance manual — CD25C (GC 47-532-31), CD25C (LPG) (GC 47-532-32), CD28C (GC 47-532-33), CD28C (LPG) (GC 47-532-34), CD28C EXTRA, CD28C EXTRA (LPG), CD35C (GC 47-532-35), CD35C (LPG) (GC 47-532-36)
manualmanualALPHA appliance manual — CD25X (GC 47-532-39), CD25X (LPG) (GC 47-532-40), CD28X (GC 47-532-37), CD28X (LPG) (GC 47-532-38)
manualmanualALPHA appliance manual — INTEC 40GS2
manualmanualALPHA appliance manual — InTEC 12S (GC 41-532-22), InTEC 12S (LPG) (GC 41-532-25), InTEC 18S (GC 41-532-23), InTEC 18S (LPG) (GC 41-532-26), InTEC 28S (GC 41-532-24), InTEC 28S (LPG) (GC 41-532-27)
manualmanualALPHA appliance manual — InTEC 2 20SE (GC 41-532-28), InTEC 2 30SE (GC 41-532-29)
manualmanualALPHA appliance manual — InTEC 2 26CE (GC 47-532-66), InTEC 2 30CE (GC 47-532-67), InTEC 2 35CE (GC 47-532-68)
manualmanualALPHA appliance manual — InTEC 26C (GC 47-532-47), InTEC 26C (LPG) (GC 47-532-54), InTEC 30C (GC 47-532-48), InTEC 30C (LPG) (GC 47-532-55), InTEC 34C (GC 47-532-49), InTEC 34C (LPG) (GC 47-532-56)
manualmanualALPHA appliance manual — InTEC 30C ErP (GC 47-532-48), InTEC 30C ErP (LPG) (GC 47-532-55), InTEC 34C ErP (GC 47-532-49), InTEC 34C ErP (LPG) (GC 47-532-56)
manualmanualALPHA appliance manual — InTEC 30GS (GC 47-532-50), InTEC 30GS (LPG) (GC 47-532-57), InTEC 40GS (GC 47-532-51), InTEC 40GS (LPG) (GC 47-532-58)
manualmanualALPHA appliance manual — InTEC 30GS ErP (GC 47-532-50), InTEC 30GS ErP (LPG) (GC 47-532-57), InTEC 40GS ErP (GC 47-532-51), InTEC 40GS ErP (LPG) (GC 47-532-58)
