Alpha
Alpha Gas Valve Dungs 1.023673
At a glance
- Part type: Gas valve
- Also known as 1250373
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£161.23
£134.36 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

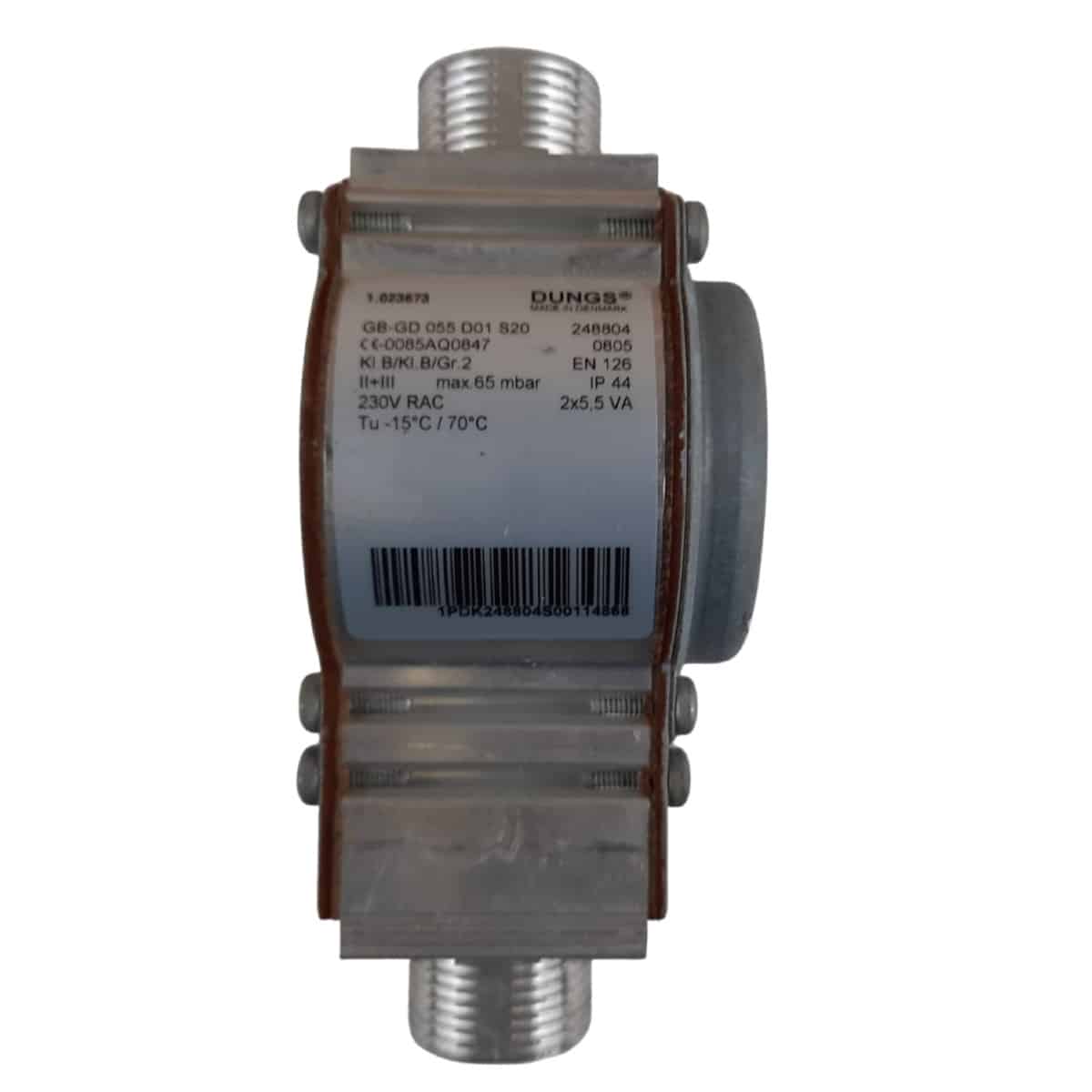

The Alpha 1.023673 is a Dungs gas valve used on Alpha gas boilers. It regulates the flow of gas to the burner under the boiler's electronic control, opening and closing on demand and holding the correct pressure for safe combustion. It is supplied as a boxed Alpha part and is the current number for the earlier 1.018808 valve.
Signs this part needs replacing
- The boiler fails to light, with no gas reaching the burner despite a call for heat.
- Repeated lockouts or flame-failure faults shortly after ignition.
- The burner lights and then drops out, or the flame is weak and unstable.
- Clicking from the valve area with no subsequent ignition.
- Gas pressure at the burner test point reads low or will not hold steady.
Before you order
- Check the GC number on the appliance data badge against the compatibility list, as several Alpha CD variants use different valve numbers.
- Confirm whether the boiler carries the earlier 1.018808 valve, which this number replaces.
- Inspect the valve mounting gasket and gas pipe seals and renew them if they are compressed or damaged.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gas valve |
|---|
Compliance
| Manufacturer part number (MPN) | 1.023673 |
|---|---|
| GC number | H28-395 |
| Barcode / EAN | 8015065379819 |
| Commodity code | 8481 80 81 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 8015065379819, ALPHA1.023673, ALPHA1.023673, 1.018808, 1250373 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA ALPHA CD12S | — | — | — | |
| ALPHA ALPHA CD13R | — | — | — | |
| ALPHA ALPHA CD18R | — | — | — | |
| ALPHA ALPHA CD20S | — | — | — | |
| ALPHA ALPHA CD24R | — | — | — | |
| ALPHA ALPHA CD28C EXTRA | — | — | — | |
| ALPHA ALPHA CD28C EXTRA LPG | — | — | — | |
| ALPHA ALPHA CD35C | — | — | — | |
| ALPHA ALPHA CD35C LPG | — | — | — | |
| ALPHA CD12S | 41-532-16 | 41-532-16 | — | — |
Showing 10 of 33 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ALPHA appliance manual — CD12S (GC 41-532-16), CD12S (LPG) (GC 41-532-17), CD20S (GC 41-532-18), CD20S (LPG) (GC 41-532-19), CD28S (GC 41-532-20), CD28S (LPG) (GC 41-532-21)
manualmanualALPHA appliance manual — CD13R (GC 41-532-05), CD13R (LPG) (GC 41-532-11), CD18R (GC 41-532-03), CD18R (LPG) (GC 41-532-09), CD24R (GC 41-532-04), CD24R (LPG) (GC 41-532-10)
manualmanualALPHA appliance manual — CD25C (GC 47-532-31), CD25C (LPG) (GC 47-532-32), CD28C (GC 47-532-33), CD28C (LPG) (GC 47-532-34), CD28C EXTRA, CD28C EXTRA (LPG), CD35C (GC 47-532-35), CD35C (LPG) (GC 47-532-36)
manualmanualALPHA appliance manual — CD25X (GC 47-532-39), CD25X (LPG) (GC 47-532-40), CD28X (GC 47-532-37), CD28X (LPG) (GC 47-532-38)
manualNo technical questions yet for this part.
