Alpha

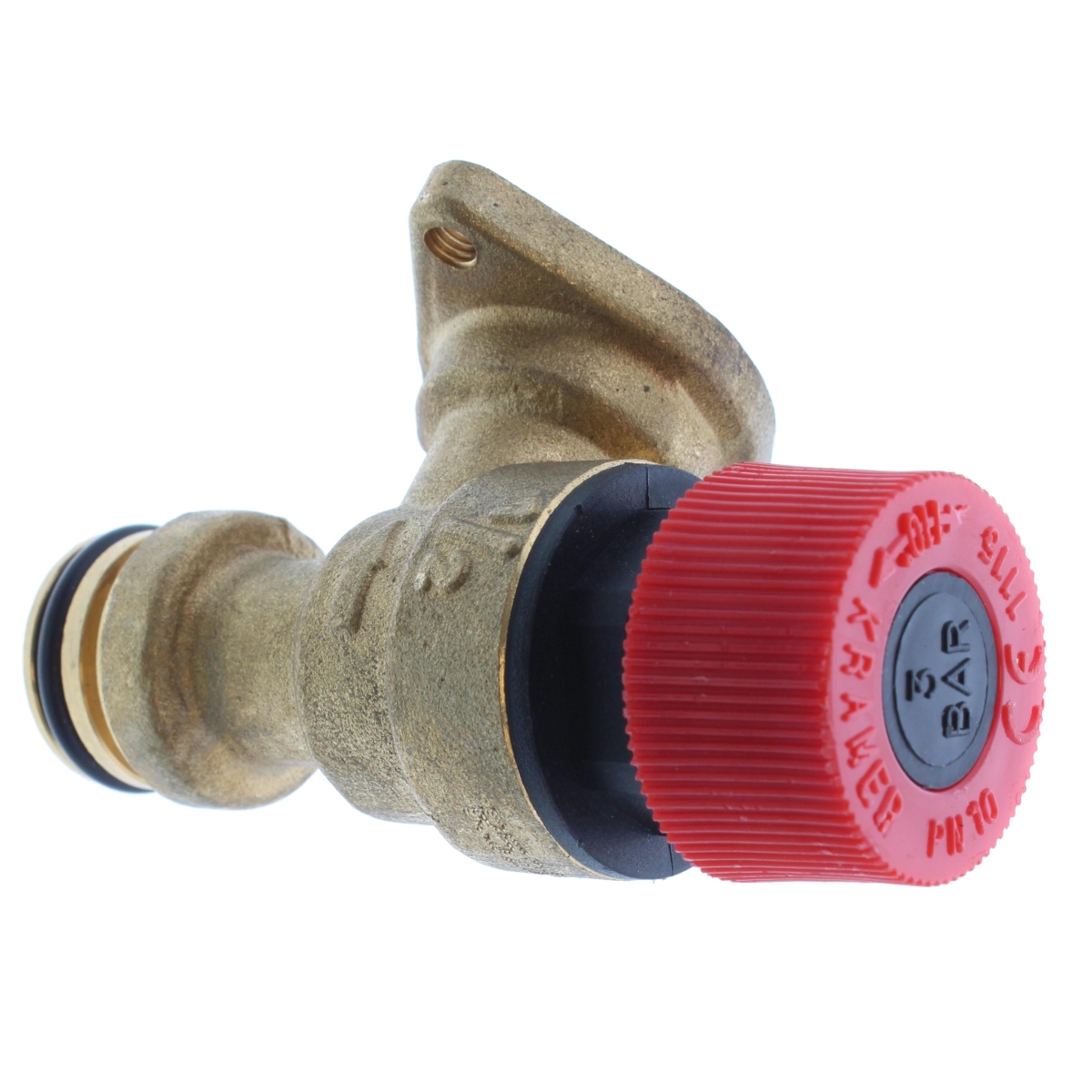

Alpha Pressure Relief Valve 3 Bar 1.023565
At a glance
- Part type: Pressure relief valve
- Appliance family: Alpha CD range
- Also known as 1257765
£35.33
£29.44 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Alpha 3 bar pressure relief valve is a safety component fitted to Alpha CD range boilers. It opens and discharges water when system pressure climbs to its 3 bar set point, protecting the heat exchanger and other pressurised parts from over-pressure. The valve is supplied by Alpha under part number 1.023565 and is listed as a temperature and pressure relief valve spare.
Signs this part needs replacing
- Water continually dripping or running from the boiler discharge pipe when the system is cold
- System pressure rising steadily and repeatedly blowing off through the relief pipe
- Boiler losing pressure overnight with no visible leak elsewhere on the system
- The valve failing to reseat after it has lifted, leaving the discharge pipe wet
- Scale or debris visible at the valve outlet, or the valve spindle sticking when operated
Before you order
- Check the appliance GC number and model against the compatibility list to confirm this valve suits your boiler
- Confirm the part number 1.023565 on the existing valve or in the manufacturer's literature before ordering
- Note the alternative numbers 1257765 and 023565, which may appear on older stock or documentation
Mechanical
| Part type | Temperature & Pressure Relief Valves |
|---|---|
| Appliance family | Alpha CD Range |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 1.023565 |
|---|---|
| Barcode / EAN | 8015065385162 |
| Commodity code | 8481 40 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1257765 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA ALPHA CD12S | — | — | — | |
| ALPHA ALPHA CD20S | — | — | — | |
| ALPHA ALPHA CD28C EXTRA | — | — | — | |
| ALPHA ALPHA CD28C EXTRA LPG | — | — | — | |
| ALPHA ALPHA CD35C | — | — | — | |
| ALPHA ALPHA CD35C LPG | — | — | — | |
| ALPHA CD12S | 41-532-16 | 41-532-16 | — | — |
| ALPHA CD12S (LPG) | 41-532-17 | 41-532-17 | — | — |
| ALPHA CD20S | 41-532-18 | 41-532-18 | — | — |
| ALPHA CD20S (LPG) | 41-532-19 | 41-532-19 | — | — |
Showing 10 of 28 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ALPHA appliance manual — CD12S (GC 41-532-16), CD12S (LPG) (GC 41-532-17), CD20S (GC 41-532-18), CD20S (LPG) (GC 41-532-19), CD28S (GC 41-532-20), CD28S (LPG) (GC 41-532-21)
manualmanualALPHA appliance manual — CD25C (GC 47-532-31), CD25C (LPG) (GC 47-532-32), CD28C (GC 47-532-33), CD28C (LPG) (GC 47-532-34), CD28C EXTRA, CD28C EXTRA (LPG), CD35C (GC 47-532-35), CD35C (LPG) (GC 47-532-36)
manualmanualALPHA appliance manual — CD25X (GC 47-532-39), CD25X (LPG) (GC 47-532-40), CD28X (GC 47-532-37), CD28X (LPG) (GC 47-532-38)
manualmanualALPHA appliance manual — HE25 (GC 47-532-41), HE25 (LPG) (GC 47-532-42), HE33 (GC 47-532-43), HE33 (LPG) (GC 47-532-44)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
