Alpha

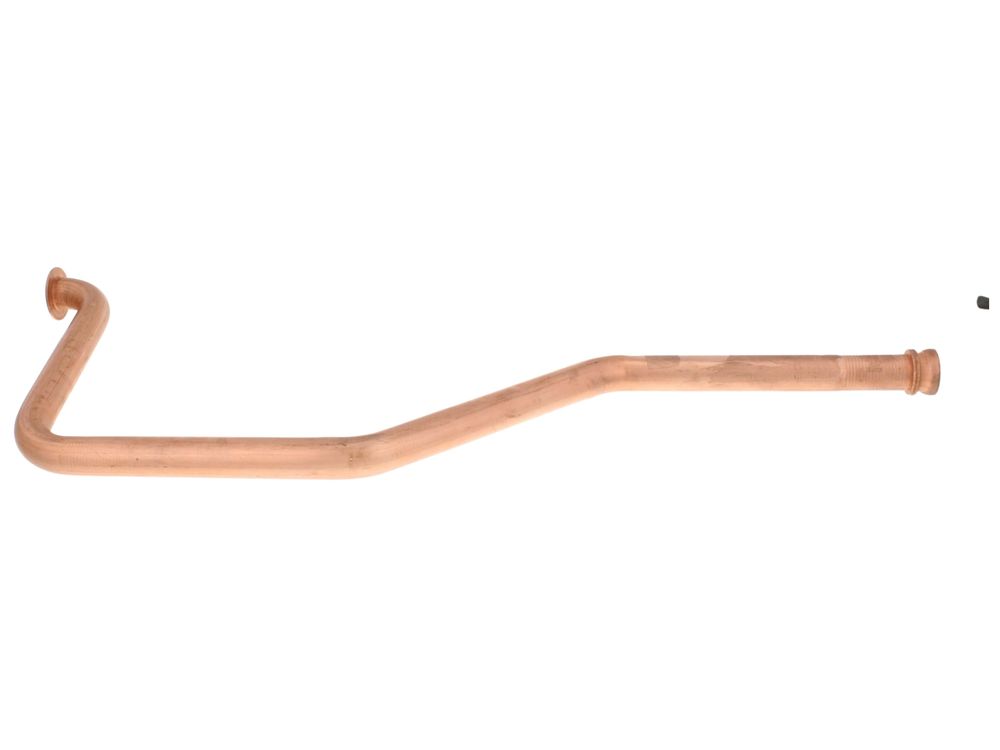

Alpha Pipe Pump To Heat Exchanger 1.018849
18mm diameter pipe connecting the pump to the heat exchanger on Alpha CD32C LPG boilers.
At a glance
- Also known as 1250251
Showing prices
£37.62
£31.35 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Alpha 1.018849 is an 18mm diameter pipe that connects the pump to the heat exchanger. It is used on Alpha CD32C LPG boilers. The pipe carries water between the pump and the heat exchanger within the appliance.
Signs this part needs replacing
- Visible leaks or weeping at the pipe connections
- Corrosion or scale build-up on the pipe surface
- Loss of system pressure
- Overheating or poor circulation linked to a restricted pipe
- Physical damage such as kinks or cracks
Before you order
- Confirm your boiler model is Alpha CD32C (LPG) with GC number 47-532-30
- Check the pipe diameter and connection points match the failed part
- Inspect the pump and heat exchanger connections for damage before fitting
Compliance
| Alternative numbers | 1250251 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA ALPHA CD32C | — | — | — | |
| ALPHA CD32C | 47-532-21 | 47-532-21 | — | — |
| ALPHA CD32C (LPG) | 47-532-30 | 47-532-30 | — | — |
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
