Alpha
Alpha Room Sealed Chamber Seal 1.013154
Alpha room sealed chamber seal, part 1.013154, for Alpha C and CB series boilers; a replacement gasket for the combustion chamber cover.
At a glance
- Part type: Gaskets, seals and washers
- Also known as 1250063
Showing prices
£10.70
£8.92 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

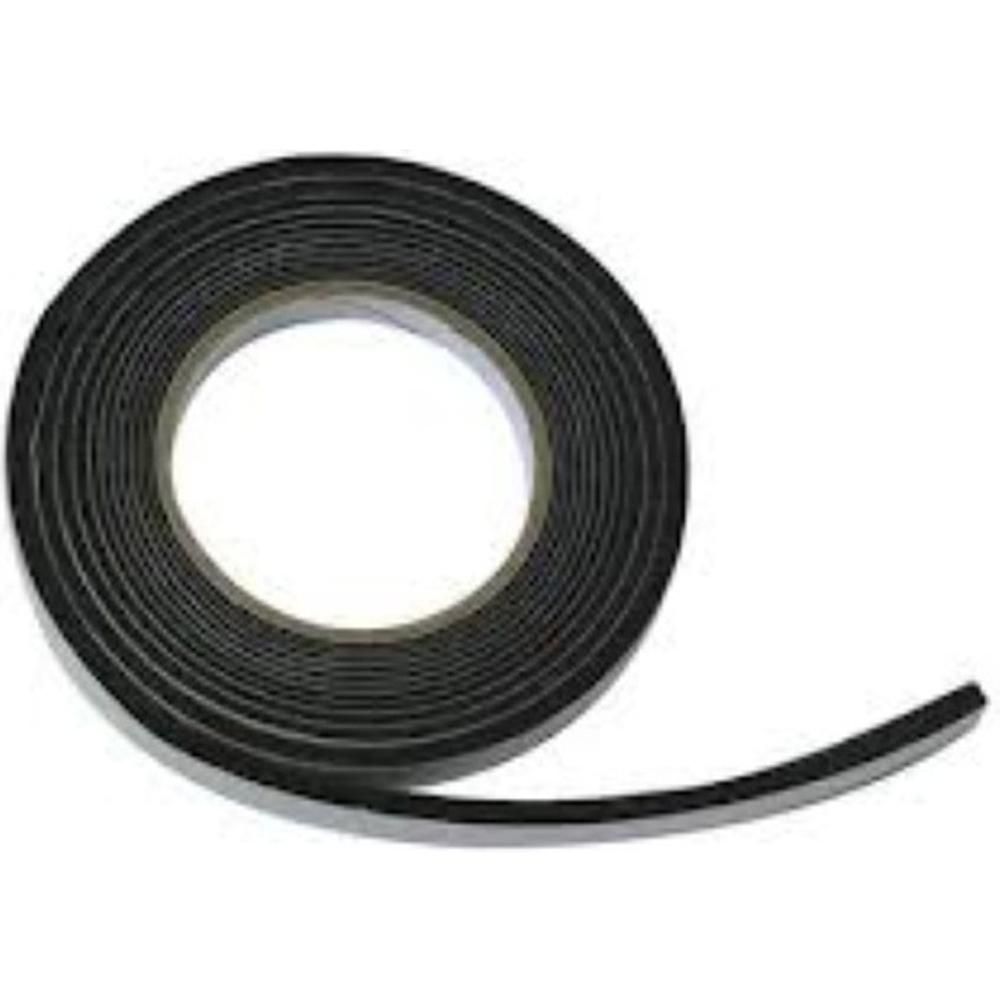

The Alpha room sealed chamber seal is a replacement gasket that sits between the combustion chamber cover and the boiler casing on Alpha room sealed appliances. It forms the gas-tight joint that keeps products of combustion inside the combustion circuit and out of the room the boiler is installed in. The seal is listed under Alpha's gaskets, seals and washers range and is used across the Alpha C and CB appliance families.
Signs this part needs replacing
- The seal is visibly flattened, hardened or perished when the chamber cover is removed for servicing.
- Cracks, splits or crumbling material along the sealing face.
- Soot staining or discolouration around the chamber cover joint, suggesting leakage past the seal.
- A smell of combustion products near the appliance, or combustion readings that drift after the cover has been refitted.
- The seal has been compressed and does not recover its shape, so the cover cannot be pulled down evenly.
Before you order
- Check the GC number and appliance serial plate against the compatibility list to confirm the seal suits your model.
- Compare the numbers on the old seal with 1.013154, 1250063, 1.031569 and 6.5404690 before ordering.
- If other gaskets on the combustion circuit are disturbed during the same job, check whether a seal kit is a better option.
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 1.013154 |
|---|---|
| Barcode / EAN | 8015065012495 |
| Commodity code | 4016 93 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | CASE-SEAL, SEAL-ROOM-SEALED-CHAMBER, 1.031569, 6.5404690, 1250063 |
| Previous numbers | 1.031569, 6.5404690 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA ALPHA C23 | — | — | — | |
| ALPHA ALPHA C27 | — | — | — | |
| ALPHA ALPHA CB24 | — | — | — | |
| ALPHA ALPHA CB24X | — | — | — | |
| ALPHA ALPHA CB28 | — | — | — | |
| ALPHA ALPHA CB28X | — | — | — | |
| ALPHA ALPHA CB50 | — | — | — | |
| ALPHA ALPHA CD24C | — | — | — | |
| ALPHA ALPHA CD24S | — | — | — | |
| ALPHA ALPHA CD32C | — | — | — |
Showing 10 of 91 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
