Alpha

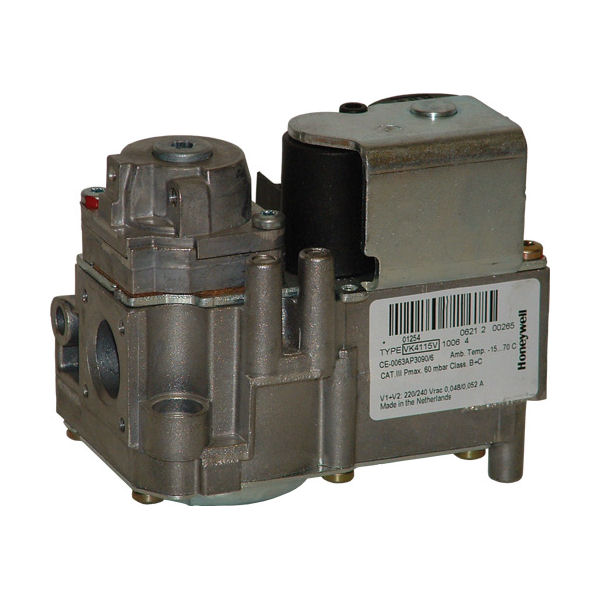

Alpha Gas Valve VK4115V 1.011846
At a glance
- Part type: Gas valve
- Also known as 1250033
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£218.05
£181.71 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The VK4115V is a gas valve manufactured by Alpha for use in its CD-series domestic boilers. It is a gas distribution device: when the burner requires more gas, the printed circuit board sends a signal to the valve, which opens and allows gas to pass through to the burner or the pilot assembly. It sits on the gas train between the supply and the combustion components, so correct operation is essential to safe ignition and modulation.
Signs this part needs replacing
- The boiler fails to ignite even though the PCB is calling for heat
- No gas reaches the burner or pilot assembly when the valve is energised
- Intermittent lockouts or flame-failure faults that clear and return
- Unstable or weak flame at the burner after ignition
- Audible clicking from the valve without any corresponding gas flow
Before you order
- Confirm the appliance model and GC number against the compatibility list, as this valve covers a number of CD-series variants
- Check the existing valve designation and part number on the boiler before ordering
- Inspect the valve sealing washers and connections at the same time, as these are disturbed during replacement
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gas valve |
|---|
Compliance
| Manufacturer part number (MPN) | 1.011846 |
|---|---|
| GC number | E94-410 |
| Commodity code | 8481 80 40 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | GAS-VALVE-VK4115-CD24SC, GAS-VALVE-VK4115V, 1250033 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA ALPHA CD18S | — | — | — | |
| ALPHA ALPHA CD24C | — | — | — | |
| ALPHA ALPHA CD24S | — | — | — | |
| ALPHA ALPHA CD30S | — | — | — | |
| ALPHA ALPHA CD32C | — | — | — | |
| ALPHA ALPHA CD50 | — | — | — | |
| ALPHA CD18S | 41-532-06 | 41-532-06 | — | — |
| ALPHA CD18S (LPG) | 41-532-13 | 41-532-13 | — | — |
| ALPHA CD24C | 47-532-19 | 47-532-19 | — | — |
| ALPHA CD24C (LPG) | 47-532-29 | 47-532-29 | — | — |
Showing 10 of 18 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ALPHA appliance manual — CD18S (GC 41-532-06), CD18S (LPG) (GC 41-532-13), CD30S (GC 41-532-08), CD30S (LPG) (GC 41-532-14)
manualmanualALPHA appliance manual — CD24C (GC 47-532-19), CD24C (LPG) (GC 47-532-29), CD24S (GC 41-532-02), CD24S (LPG) (GC 41-532-15), CD32C (GC 47-532-21), CD32C (LPG) (GC 47-532-30)
manualmanualALPHA appliance manual — CD50 (GC 47-532-24), CD50 (LPG)
