Alpha
Alpha Pressure Relief Valve 3 Bar 1.011126
At a glance
- Part type: Pressure relief valve
- Also known as 1250023
£30.00
£25.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

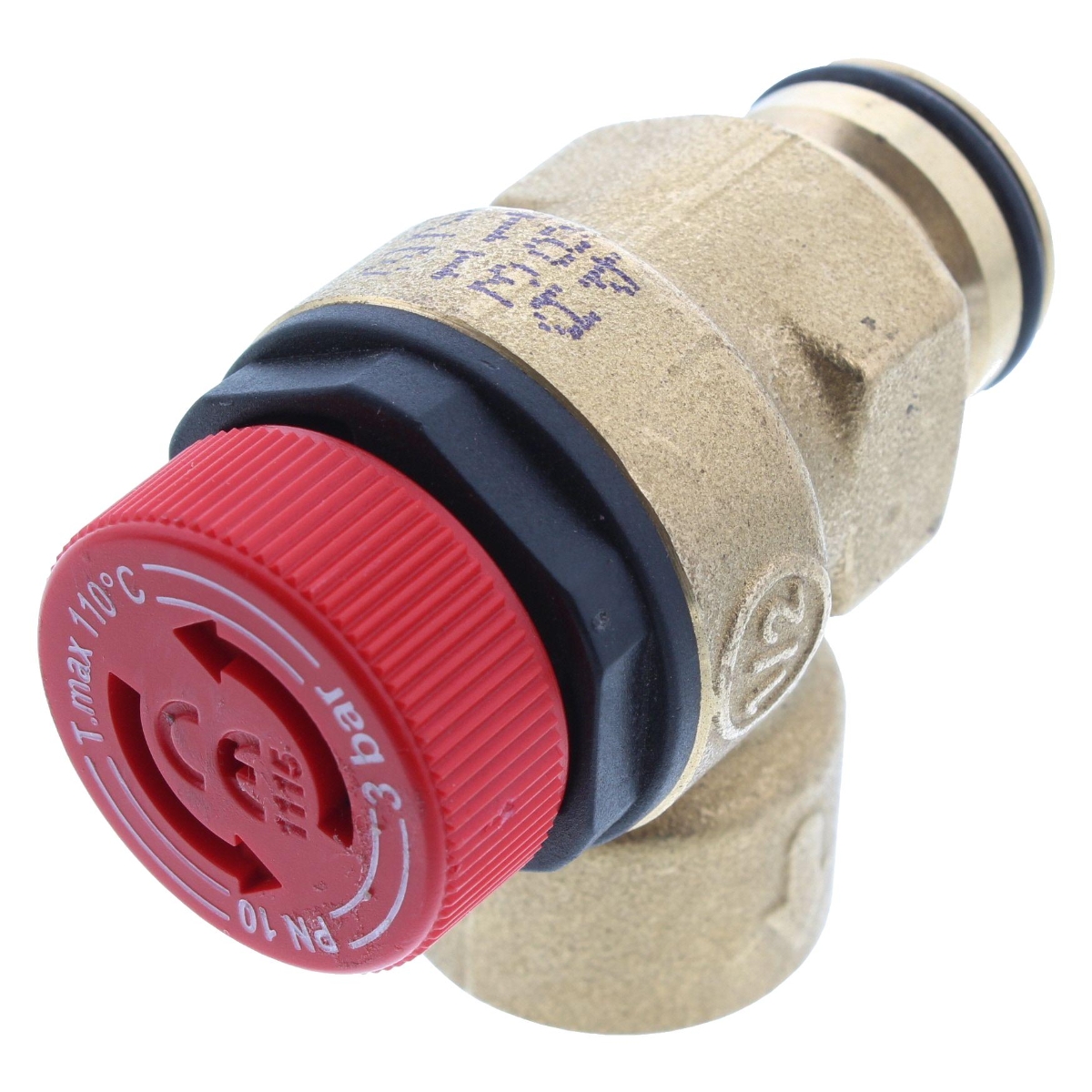

The Alpha 3 bar pressure relief valve is a safety component fitted to the sealed heating circuit of Alpha gas appliances. It opens progressively as system pressure rises, releasing water before the pressure reaches a level that could damage the boiler or the pipework. This valve is used across a wide range of Alpha combi and system models.
Signs this part needs replacing
- Water weeping or dripping from the discharge pipe when the system is cold
- Pressure gauge reading climbing steadily with no obvious cause
- The valve failing to reseat after a pressure release, leaving a constant trickle
- Boiler locking out or cutting out on a pressure-related fault
- Scale or corrosion visible around the valve body or outlet
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct valve
- Compare the part number on the existing valve with 1.011126 before ordering
- Confirm whether the sealing washer or connection seal needs renewing at the same time
- Work on the sealed system should be carried out by a competent heating engineer
Mechanical
| Part type | Temperature & Pressure Relief Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 1.011126 |
|---|---|
| GC number | E57-703 |
| Barcode / EAN | 8015065304224 |
| Commodity code | 8481 40 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | ALPHA1.011126, 1250023 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA ALPHA C23 | — | — | — | |
| ALPHA ALPHA C27 | — | — | — | |
| ALPHA ALPHA CB24 | — | — | — | |
| ALPHA ALPHA CB24X | — | — | — | |
| ALPHA ALPHA CB28 | — | — | — | |
| ALPHA ALPHA CB28X | — | — | — | |
| ALPHA ALPHA CB50 | — | — | — | |
| ALPHA ALPHA CD18S | — | — | — | |
| ALPHA ALPHA CD24C | — | — | — | |
| ALPHA ALPHA CD24S | — | — | — |
Showing 10 of 51 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ALPHA appliance manual — C23 (GC 47-532-22), C23 (LPG), C27 (GC 47-532-23), C27 (LPG)
manualmanualALPHA appliance manual — CB24 (GC 47-532-15), CB24 (LPG), CB24X (GC 47-532-14), CB24X (LPG), CB28 (GC 47-532-16), CB28 (LPG), CB28X (GC 47-532-17), CB28X (LPG)
manualmanualALPHA appliance manual — CB50 (GC 47-532-18), CB50 (LPG)
manualmanualALPHA appliance manual — CD18S (GC 41-532-06), CD18S (LPG) (GC 41-532-13), CD30S (GC 41-532-08), CD30S (LPG) (GC 41-532-14)
manualmanualALPHA appliance manual — CD24C (GC 47-532-19), CD24C (LPG) (GC 47-532-29), CD24S (GC 41-532-02), CD24S (LPG) (GC 41-532-15), CD32C (GC 47-532-21), CD32C (LPG) (GC 47-532-30)
manualmanualALPHA appliance manual — CD50 (GC 47-532-24), CD50 (LPG)
manualmanualALPHA appliance manual — HE CB25 (GC 47-532-25), HE CB25 (LPG) (GC 47-532-27), HE CB33 (GC 47-532-26), HE CB33 (LPG) (GC 47-532-44), HE SY25 (GC 41-532-07), HE SY25 (LPG) (GC 41-532-12)
manualmanualALPHA appliance manual — SY24 (GC 41-532-01), SY24 (LPG)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
