Vaillant Ignition Wire 091551
Vaillant 091551 ignition wire for Ecomax 200, 600 and 800 series gas boilers.
At a glance
- Also known as 1373359
£25.87
£21.56 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

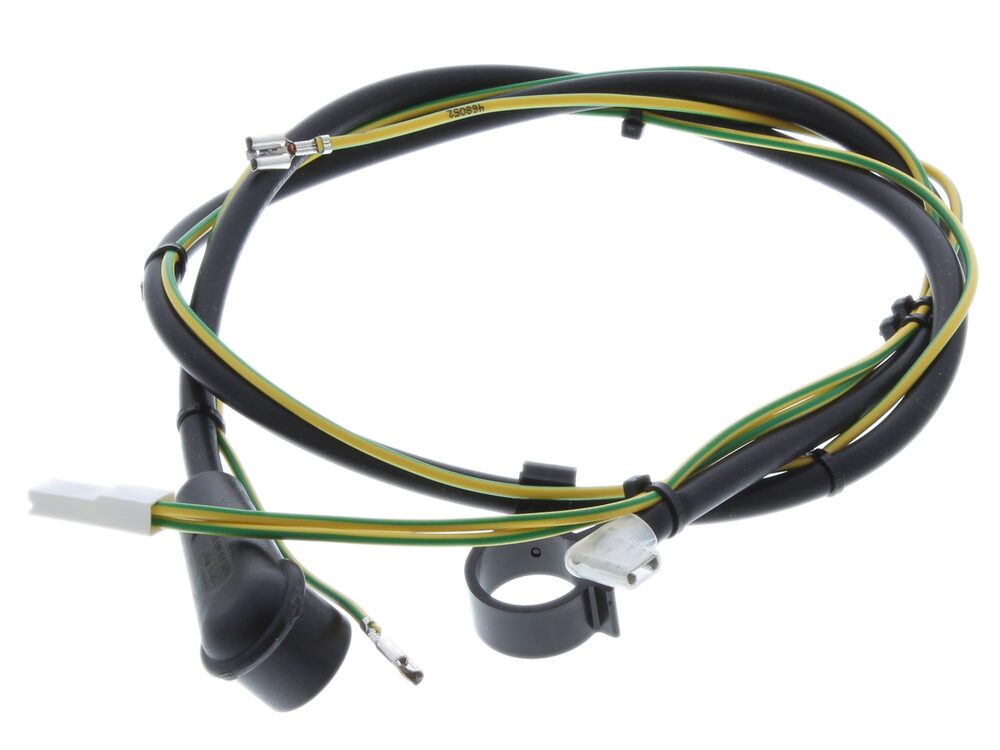

The Vaillant 091551 ignition wire is the high-voltage lead that carries the spark from the ignition transformer or PCB to the ignition electrode on Vaillant Ecomax gas boilers. It forms part of the ignition circuit and must be sound for the burner to light reliably. The lead is supplied as a single wire for the Ecomax range.
Signs this part needs replacing
- Boiler fails to light or repeatedly goes to lockout with no spark at the electrode
- Visible cracking, charring or brittle insulation on the ignition lead
- Spark tracking or arcing to earth along the lead instead of at the electrode tip
- Intermittent ignition, with the boiler lighting on some attempts but not others
- Damaged or corroded terminal ends where the lead connects to the electrode or ignition source
Before you order
- Confirm your boiler model against the fitment list above before ordering
- Check the existing lead for the part number 091551 where it is marked
- Inspect the ignition electrode and its gap at the same time, as a worn electrode can mimic a faulty lead
- Isolate the appliance and follow the manufacturer's instructions before removing any ignition components
Compliance
| Barcode / EAN | 4024074398906 |
|---|---|
| Alternative numbers | 1373359 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VAILLANT ECOMAX 200 VUW286/2 C (47-044-24) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 2E VUW246/2 EC (47-044-12) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 2E VUW356 C (47-044-27) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 613/2E VU126/2 C (41-044-27) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 618/2E VU186/2 C (41-044-28) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 622/2E VU226/2 C (41-044-29) | — | — | — | |
| VAILLANT VU 126/2-C | 41-044-27 | 41-044-27 | — | — |
| VAILLANT VU 186/2-C | 41-044-28 | 41-044-28 | — | — |
| VAILLANT VU 226/2-C | 41-044-29 | 41-044-29 | — | — |
| VAILLANT VU 356-C | 41-044-43 | 41-044-43 | — | — |
Showing 10 of 26 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VAILLANT appliance manual — VU 126/2-C (GC 41-044-27), VU 186/2-C (GC 41-044-28), VU 226/2-C (GC 41-044-29), VU 356-C (GC 41-044-43), VU 356/2-C (GC 41-044-43), VUW 246/2-C (GC 47-044-12), VUW 286/2-C (GC 47-044-17), VUW 356-C (GC 47-044-27), ecoMAX 613/2E VU 126/2 C (2001-2006) (GC 41-044-27), ecoMAX 618/2E VU 186/2 C (2001-2006) (GC 41-044-28), ecoMAX 622/2E VU 226/2 C (2001-2006) (GC 41-044-29), ecoMAX 635 E VU 356-C (2004-2006) (GC 41-044-43), ecoMAX 635 VU 356/2-C (2006-2008) (GC 41-044-43), ecoMAX 824/2 E-C VUW 246/2 E-C (2001-2006) (GC 47-044-12), ecoMAX 828/2E VUW 286/2 C (2001-2006) (GC 47-044-17), ecoMAX 835E VUW 356 C (2002-2006) (GC 47-044-27)
manualmanualVAILLANT appliance manual — VU 656-7 (GC 41-044-59), ecoMAX 665 VU 656-7 (2006-2006) (GC 41-044-59)
