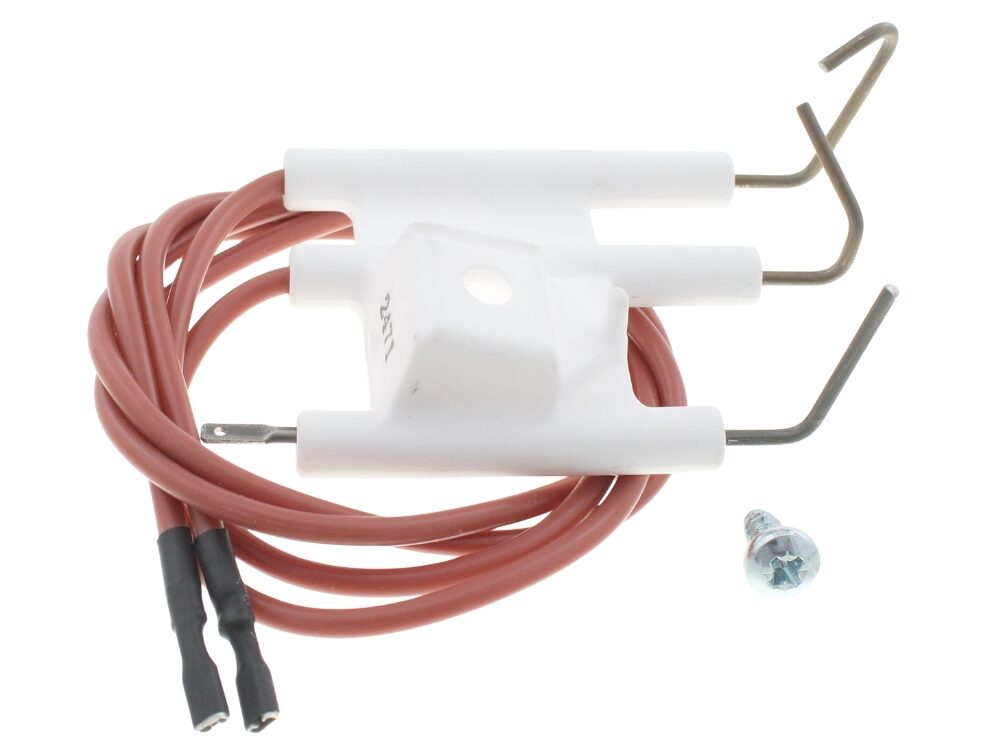

Vaillant Ignition & Monitoring Electrode 090724
Ignition and monitoring electrode, part 090724, for Vaillant Thermocompact and Turbomax gas boilers.
At a glance
- Also known as 1373337
Showing prices
£43.13
£35.94 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 090724 is an ignition and monitoring electrode used on Vaillant Thermocompact and Turbomax gas boilers. It provides the spark that lights the burner and feeds the flame signal back to the boiler's control board. It is a serviceable component within the combustion circuit and is replaced when ignition or flame detection becomes unreliable.
Signs this part needs replacing
- Boiler fails to ignite, with no spark at the burner
- Repeated lockouts shortly after the burner lights
- Flame established but the boiler shuts down as if no flame is present
- Visible cracking, erosion or heavy carbon build-up on the electrode tip or ceramic insulator
- Intermittent ignition that worsens over time
Before you order
- Confirm the boiler model and variant against the fitment list above
- Check the existing electrode for damage, correct gap and secure lead connection before condemning it
- Inspect the ignition lead and control board, as ignition faults are not always caused by the electrode
- Work on the combustion circuit should be carried out by a competent gas engineer
Compliance
| Barcode / EAN | 4024074383155 |
|---|---|
| Alternative numbers | 1373337 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT THERMOcompact 615E VU 152-5 (2000-2001) | 41-044-23 | 41-044-23 | — | — |
| VAILLANT THERMOcompact 615E VU 152/2-5 (2001-2002) | 41-044-23 | 41-044-23 | — | — |
| VAILLANT THERMOcompact 615E VU 152/2-5 R1 (2002-2004) | 41-044-23 | 41-044-23 | — | — |
| VAILLANT THERMOcompact 615E VU 152/2-5 R3 (2004-2006) | 41-044-23 | 41-044-23 | — | — |
| VAILLANT THERMOcompact 620E VU 202-5 (2000-2001) | 41-044-24 | 41-044-24 | — | — |
| VAILLANT THERMOcompact 620E VU 202/2-5 (2001-2002) | 41-044-24 | 41-044-24 | — | — |
| VAILLANT THERMOcompact 620E VU 202/2-5 R1 (2002-2003) | 41-044-24 | 41-044-24 | — | — |
| VAILLANT THERMOcompact 620E VU 202/2-5 R2 (2003-2004) | 41-044-24 | 41-044-24 | — | — |
| VAILLANT THERMOcompact 620E VU 202/2-5 R3 (2004-2006) | 41-044-24 | 41-044-24 | — | — |
| VAILLANT THERMOcompact 624E VU 242-5 (2000-2001) | 41-044-25 | 41-044-25 | — | — |
Showing 10 of 115 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
VAILLANT appliance manual — THERMOcompact 615E VU 152/2-5 (2001-2002) (GC 41-044-23), THERMOcompact 615E VU 152/2-5 R1 (2002-2004) (GC 41-044-23), THERMOcompact 615E VU 152/2-5 R3 (2004-2006) (GC 41-044-23), THERMOcompact 620E VU 202/2-5 (2001-2002) (GC 41-044-24), THERMOcompact 620E VU 202/2-5 R1 (2002-2003) (GC 41-044-24), THERMOcompact 620E VU 202/2-5 R2 (2003-2004) (GC 41-044-24), THERMOcompact 620E VU 202/2-5 R3 (2004-2006) (GC 41-044-24), THERMOcompact 624E VU 242/2-5 (2001-2002) (GC 41-044-25), THERMOcompact 624E VU 242/2-5 R1 (2002-2003) (GC 41-044-25), THERMOcompact 624E VU 242/2-5 R2 (2003-2004) (GC 41-044-25), THERMOcompact 624E VU 242/2-5 R3 (2004-2006) (GC 41-044-25), THERMOcompact 628E VU 282/2-5 (2001-2002) (GC 41-044-26), THERMOcompact 628E VU 282/2-5 R1 (2002-2003) (GC 41-044-26), THERMOcompact 628E VU 282/2-5 R2 (2003-2004) (GC 41-044-26), THERMOcompact 628E VU 282/2-5 R3 (2004-2006) (GC 41-044-26), TURBOmax Plus 824E VUW 242-5 (2000-2001) (GC 47-044-04), TURBOmax Plus 824E VUW 242/2-5 (2001-2002) (GC 47-044-04), TURBOmax Plus 824E VUW 242/2-5 R1 (2002-2002) (GC 47-044-04), TURBOmax Plus 824E VUW 242/2-5 R2 (2003-2004) (GC 47-044-04), TURBOmax Plus 824E VUW 242/2-5 R3 (2004-2004) (GC 47-044-04), TURBOmax Plus 828E VUW 282/2-5 (2001-2002) (GC 47-044-09), TURBOmax Plus 828E VUW 282/2-5 R1 (2002-2002) (GC 47-044-09), TURBOmax Plus 828E VUW 282/2-5 R2 (2003-2004) (GC 47-044-09), TURBOmax Plus 828E VUW 282/2-5 R3 (2004-2004) (GC 47-044-09), VU 152/2-5 (GC 41-044-23), VU 152/2-5 R1 (GC 41-044-23), VU 152/2-5 R3 (GC 41-044-23), VU 202/2-5 (GC 41-044-24), VU 202/2-5 R1 (GC 41-044-24), VU 202/2-5 R2 (GC 41-044-24), VU 202/2-5 R3 (GC 41-044-24), VU 242/2-5 (GC 41-044-25), VU 242/2-5 R1 (GC 41-044-25), VU 242/2-5 R2 (GC 41-044-25), VU 242/2-5 R3 (GC 41-044-25), VU 282/2-5 (GC 41-044-26), VU 282/2-5 R1 (GC 41-044-26), VU 282/2-5 R2 (GC 41-044-26), VU 282/2-5 R3 (GC 41-044-26), VUW 242-5 (GC 47-044-04), VUW 242/2-5 (GC 47-044-04), VUW 242/2-5 R1 (GC 47-044-04), VUW 242/2-5 R2 (GC 47-044-04), VUW 242/2-5 R3 (GC 47-044-04), VUW 282/2-5 (GC 47-044-09), VUW 282/2-5 R1 (GC 47-044-09), VUW 282/2-5 R2 (GC 47-044-09), VUW 282/2-5 R3 (GC 47-044-09)
manualmanualVAILLANT appliance manual — TURBOmax Pro 24E VUW 242-3 (2000-2001) (GC 47-044-10), TURBOmax Pro 24E VUW 242/2-3 R1 (2002-2002) (GC 47-044-10), TURBOmax Pro 24E VUW 242/2-3 R2 (2003-2004) (GC 47-044-10), TURBOmax Pro 24E VUW 242/2-3 R3 (2004-2004) (GC 47-044-10), TURBOmax Pro 28E VUW 282-3 (2000-2001) (GC 47-044-11), TURBOmax Pro 28E VUW 282/2-3 R1 (2002-2002) (GC 47-044-11), TURBOmax Pro 28E VUW 282/2-3 R2 (2003-2004) (GC 47-044-11), TURBOmax Pro 28E VUW 282/2-3 R3 (2004-2004) (GC 47-044-11), VUW 242-3 (GC 47-044-10), VUW 242/2-3 R1 (GC 47-044-10), VUW 242/2-3 R2 (GC 47-044-10), VUW 242/2-3 R3 (GC 47-044-10), VUW 282/2-3 R1 (GC 47-044-11), VUW 282/2-3 R2 (GC 47-044-11), VUW 282/2-3 R3 (GC 47-044-11)
manualmanualVAILLANT appliance manual — TURBOmax Pro 24E VUW 242/2-3 (2001-2002) (GC 47-044-10), TURBOmax Pro 28E VUW 282/2-3 (2001-2002) (GC 47-044-11), VUW 242/2-3 (GC 47-044-10), VUW 282/2-3 (GC 47-044-11)
manualNo technical questions yet for this part.
