Vaillant

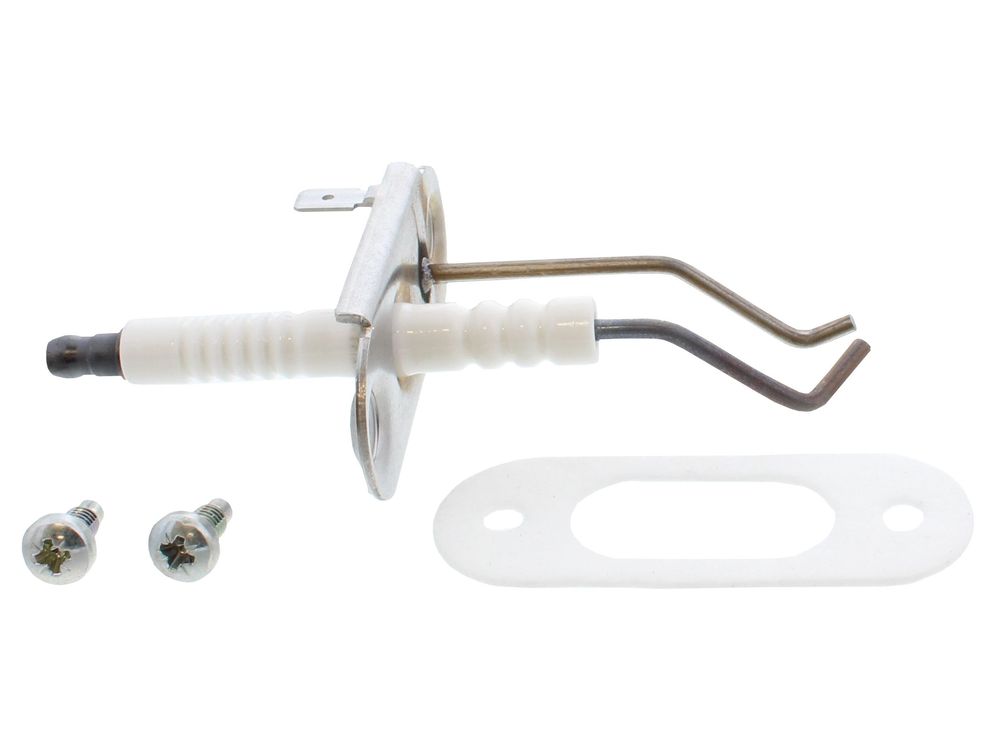

Vaillant Ignition Electrode VAILLANT090709
Vaillant 090709 ignition electrode, a combustion and exhaust spare for Vaillant gas appliances, supplied singly with a 1 year guarantee.
At a glance
- Part type: Ignition electrode
- Also known as VAILLANT090709
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£43.20
£36.00 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 090709 is an ignition electrode, classed in the combustion and exhaust group of boiler spares. It forms part of the ignition circuit on Vaillant gas appliances, where it provides the spark that lights the gas and air mixture during a start-up sequence. The electrode is supplied as a single unit.
Signs this part needs replacing
- The appliance fails to light and locks out during the ignition sequence
- No spark is visible at the electrode tip when a start-up is attempted
- Repeated ignition faults or lockout codes that clear on reset and return
- A cracked, crazed or discoloured ceramic insulator on the electrode body
- An eroded, pitted or carbon-bridged electrode tip, or a spark tracking away from the intended gap
Before you order
- Confirm that 090709 matches the part number shown on the appliance data badge or in the manufacturer's literature
- Compare the electrode length, tip profile and mounting arrangement with the part being removed
- Check the ignition lead, its insulation and the burner earth connection while access is available
- Set the electrode gap and position to the dimensions given in the appliance instructions before reassembly
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Ignition Electrode |
|---|
Compliance
| Manufacturer part number (MPN) | 090709 |
|---|---|
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 4024074429006, VAILLANT090709, VAILLANT090709, VAILLANT090709, 254889041330, 43375507, 1373335 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT ECOmax 613 VU 126 E-C (2000-2001) | 41-044-20 | 41-044-20 | — | — |
| VAILLANT ECOmax 618 VU 196 E-C (2000-2001) | 41-044-21 | 41-044-21 | — | — |
| VAILLANT ECOmax 622 VU 246 E-C (2000-2001) | 41-044-22 | 41-044-22 | — | — |
| VAILLANT ECOmax 824 VUW 246 E-C (1999-2001) | 47-044-07 | 47-044-07 | — | — |
| VAILLANT ECOmax 828 VUW 286 E-C (1999-2001) | 47-044-08 | 47-044-08 | — | — |
| VAILLANT VAILLANT ECOMAX 1E VUW246 EC (47-044-07) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 200 VUW286/2 C (47-044-24) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 2E VUW246/2 EC (47-044-12) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 2E VUW286 EC (47-044-17) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 2E VUW356 C (47-044-27) | — | — | — |
Showing 10 of 161 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
VAILLANT appliance manual — ECOmax 824 VUW 246 E-C (1999-2001) (GC 47-044-07), ECOmax 828 VUW 286 E-C (1999-2001) (GC 47-044-08), VUW 246 E-C (GC 47-044-07), VUW 286 E-C (GC 47-044-08)
manualmanualVAILLANT appliance manual — VU 126/2-C (GC 41-044-27), VU 186/2-C (GC 41-044-28), VU 226/2-C (GC 41-044-29), VU 356-C (GC 41-044-43), VU 356/2-C (GC 41-044-43), VUW 246/2-C (GC 47-044-12), VUW 286/2-C (GC 47-044-17), VUW 356-C (GC 47-044-27), ecoMAX 613/2E VU 126/2 C (2001-2006) (GC 41-044-27), ecoMAX 618/2E VU 186/2 C (2001-2006) (GC 41-044-28), ecoMAX 622/2E VU 226/2 C (2001-2006) (GC 41-044-29), ecoMAX 635 E VU 356-C (2004-2006) (GC 41-044-43), ecoMAX 635 VU 356/2-C (2006-2008) (GC 41-044-43), ecoMAX 824/2 E-C VUW 246/2 E-C (2001-2006) (GC 47-044-12), ecoMAX 828/2E VUW 286/2 C (2001-2006) (GC 47-044-17), ecoMAX 835E VUW 356 C (2002-2006) (GC 47-044-27)
manualmanualVAILLANT appliance manual — VU 126/3-5 (GC 41-044-44), VU 126/3-5 R1 (GC 41-044-44), VU 156/3-5 (GC 41-044-45), VU 156/3-5 R1 (GC 41-044-45), VU 186/3-5 (GC 41-044-46), VU 186/3-5 R1 (GC 41-044-46), VU 246/3-5 (GC 41-044-47), VU 246/3-5 R1 (GC 41-044-47), VU 306/3-5 (GC 41-044-48), VU 306/3-5 R1 (GC 41-044-48), VU 376/3-5 R1 (GC 41-044-49), VUW 246/3-3 R1 (GC 47-044-36), VUW 246/3-3 R2 (GC 47-044-36), VUW 246/3-5 (GC 47-044-31), VUW 246/3-5 R1 (GC 47-044-31), VUW 246/3-5 R3 (GC 47-044-31), VUW 286/3-3 (GC 47-044-30), VUW 286/3-3 R1 (GC 47-044-30), VUW 286/3-3 R2 (GC 47-044-30), VUW 316/3-5 (GC 47-044-32), VUW 316/3-5 R1 (GC 47-044-32), VUW 316/3-5 R3 (GC 47-044-32), VUW 316/3-5 R5 (GC 47-044-32), VUW 376/3-5 (GC 47-044-33), VUW 376/3-5 R1 (GC 47-044-33), ecoTEC PLUS 612 VU 126/3-5 (2005-2005) (GC 41-044-44), ecoTEC PLUS 612 VU 126/3-5 R1 (2005-2006) (GC 41-044-44), ecoTEC PLUS 615 VU 156/3-5 (2005-2005) (GC 41-044-45), ecoTEC PLUS 615 VU 156/3-5 R1 (2005-2006) (GC 41-044-45), ecoTEC PLUS 618 VU 186/3-5 (2005-2005) (GC 41-044-46), ecoTEC PLUS 618 VU 186/3-5 R1 (2005-2006) (GC 41-044-46), ecoTEC PLUS 624 VU 246/3-5 (2005-2006) (GC 41-044-47), ecoTEC PLUS 624 VU 246/3-5 R1 (2005-2006) (GC 41-044-47), ecoTEC PLUS 630 VU 306/3-5 (2005-2005) (GC 41-044-48), ecoTEC PLUS 630 VU 306/3-5 R1 (2005-2006) (GC 41-044-48), ecoTEC PLUS 637 VU 376/3-5 R1 - 2006-2006 (GC 41-044-49), ecoTEC PLUS 824 VUW 246/3-5 (2005-2005) (GC 47-044-31), ecoTEC PLUS 824 VUW 246/3-5 R1 (2005-2006) (GC 47-044-31), ecoTEC PLUS 824 VUW 246/3-5 R3 (2011-2012) (GC 47-044-31), ecoTEC PLUS 831 VUW 316/3-5 (2005-2005) (GC 47-044-32), ecoTEC PLUS 831 VUW 316/3-5 R1 (2005-2006) (GC 47-044-32), ecoTEC PLUS 831 VUW 316/3-5 R3 (2011-2012) (GC 47-044-32), ecoTEC PLUS 831 VUW 316/3-5 R5 (2013 - 2013) (GC 47-044-32), ecoTEC PLUS 837 VUW 376/3-5 (2005-2005) (GC 47-044-33), ecoTEC PLUS 837 VUW 376/3-5 R1 (2005-2006) (GC 47-044-33), ecoTEC PRO 24 VUW 246/3-3 R1 (2005-2006) (GC 47-044-36), ecoTEC PRO 24 VUW 246/3-3 R2 (2008-2012) (GC 47-044-36), ecoTEC PRO 28 VUW 286/3-3 (2005-2006) (GC 47-044-30), ecoTEC PRO 28 VUW 286/3-3 R1 (2005-2006) (GC 47-044-30), ecoTEC PRO 28 VUW 286/3-3 R2 (GC 47-044-30)
manualmanualVAILLANT appliance manual — VU 156 (GC 41-044-53), VU 186 (GC 41-044-54), VU 286 (GC 41-044-55), VU 286-O (GC 41-044-31), VU 386 (GC 41-044-57), ecoTEC PLUS 415 VU 156 (2006) (GC 41-044-53), ecoTEC PLUS 418 VU 186 (2006) (GC 41-044-54), ecoTEC PLUS 428 VU 286 (2006) (GC 41-044-55), ecoTEC PLUS 438 VU 386 (2006) (GC 41-044-57)
manualmanualVAILLANT appliance manual — VU 186-O (GC 41-044-30), ecoMAX PRO 18E VU 186-0 (2003-2006) (GC 41-044-30), ecoMAX PRO 28E VU 286-0 (2003-2006) (GC 41-044-31)
manualmanualVAILLANT appliance manual — VU 466/4-5 (GC 41-044-58), VU 656/4-5 (GC 41-044-59), ecoTEC VU 466/4-5 (2007-2015) (GC 41-044-58), ecoTEC VU 656/4-5 (2007-2015) (GC 41-044-59)
manualmanualVAILLANT appliance manual — VU 656-7 (GC 41-044-59), ecoMAX 665 VU 656-7 (2006-2006) (GC 41-044-59)
manualmanualVAILLANT appliance manual — VUI 376/3-5 (GC 47-044-39), ecoTEC 937 VUI 376/3-5 (2006-2012) (GC 47-044-39)
manualmanualVAILLANT appliance manual — VUW 326/4-7 (GC 47-044-37), VUW 386/4-7 (GC 47-044-38), ecoTEC EXCLUSIVE 832 VUW 326/4-7 (GC 47-044-37), ecoTEC EXCLUSIVE 838 VUW 386/4-7 (GC 47-044-38)
manualNo technical questions yet for this part.
