Vaillant

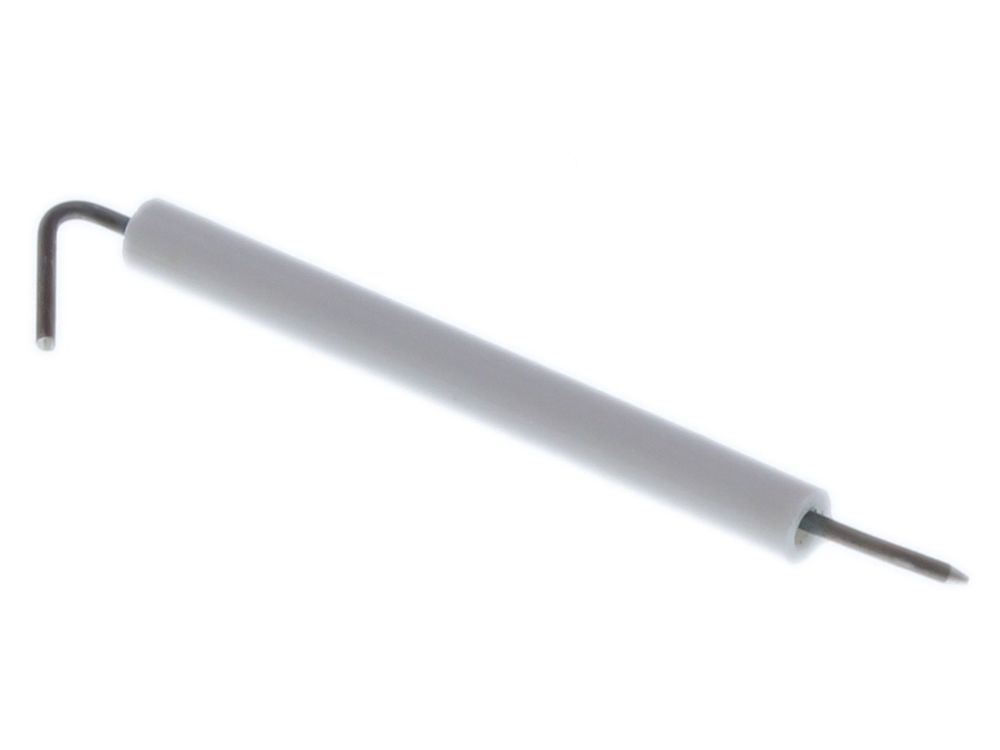

Vaillant Monitoring Electrode 090563
Vaillant 090563 monitoring electrode for Thermocompact, Turbomax and Thermo Compact gas boilers.
At a glance
- Also known as 1373320
£17.23
£14.36 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 090563 is a monitoring electrode used in Vaillant gas boilers, including the Thermocompact, Turbomax and Thermo Compact families. It sits in the combustion circuit and provides the flame monitoring signal the boiler's control board uses to confirm a burner flame is present. It is a serviceable component, replaced when the electrode or its insulation degrades.
Signs this part needs replacing
- Boiler locks out shortly after the burner lights, or fails to sustain a flame
- Repeated ignition attempts with the burner extinguishing each time
- Flame failure or flame monitoring fault indicated by the boiler controls
- Visible contamination, corrosion or pitting on the electrode tip
- Cracked or discoloured ceramic insulator, or a damaged lead connection
Before you order
- Confirm the boiler model and GC number from the appliance rating plate against the fit list above
- Compare the electrode against the one removed from the boiler before fitting
- Inspect the existing electrode seal and lead, and renew if damaged
- Isolate the gas and electrical supply before any work on the combustion circuit
Compliance
| GC number | 283-692 |
|---|---|
| Barcode / EAN | 4024074117132 |
| Alternative numbers | 1373320 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT THERMOcompact VU 142/1E (1998-2000) | 41-044-16 | 41-044-16 | — | — |
| VAILLANT THERMOcompact VU 242/2E (1988-2000) | — | — | — | |
| VAILLANT THERMOcompact VU 282/3E (1998-2000) | — | — | — | |
| VAILLANT THERMOcompact VU GB 142/1 E (1998-2000) | 41-044-16 | 41-044-16 | — | — |
| VAILLANT THERMOcompact VU GB 182/1E (1998-2000) | 41-044-13 | 41-044-13 | — | — |
| VAILLANT THERMOcompact VU GB 182E (1995-1998) | 41-044-13 | 41-044-13 | — | — |
| VAILLANT THERMOcompact VU GB 242/1E (1998-2000) | 41-044-18 | 41-044-18 | — | — |
| VAILLANT THERMOcompact VU GB 242E (1995-1998) | 41-044-14 | 41-044-14 | — | — |
| VAILLANT THERMOcompact VU GB 282/1E (1998-2000) | 41-044-19 | 41-044-19 | — | — |
| VAILLANT THERMOcompact VU GB 282E (1995-1998) | 41-044-15 | 41-044-15 | — | — |
Showing 10 of 41 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VAILLANT appliance manual — THERMOcompact VU 142/1E (1998-2000) (GC 41-044-16), THERMOcompact VU GB 142/1 E (1998-2000) (GC 41-044-16), THERMOcompact VU GB 182/1E (1998-2000) (GC 41-044-13), THERMOcompact VU GB 242/1E (1998-2000) (GC 41-044-18), THERMOcompact VU GB 282/1E (1998-2000) (GC 41-044-19), VU 142/1 E (GC 41-044-16), VU 182/1 E (GC 41-044-13), VU 242/1 E (GC 41-044-18), VU 282/1 E (GC 41-044-19)
manualmanualVAILLANT appliance manual — TURBOmax VUW 242/1E (1998-2000) (GC 47-044-02), TURBOmax VUW 282/1E (1998-2000) (GC 47-044-06), VUW 242/1 E (GC 47-044-02), VUW 282/1 E (GC 47-044-06)
manualmanualVAILLANT appliance manual — TURBOmax VUW 242E (1995-1998) (GC 47-044-25), TURBOmax VUW 282E (1995-1998) (GC 47-044-26), VUW 242 E (GC 47-044-25), VUW 282 E (GC 47-044-26)
manualNo technical questions yet for this part.
