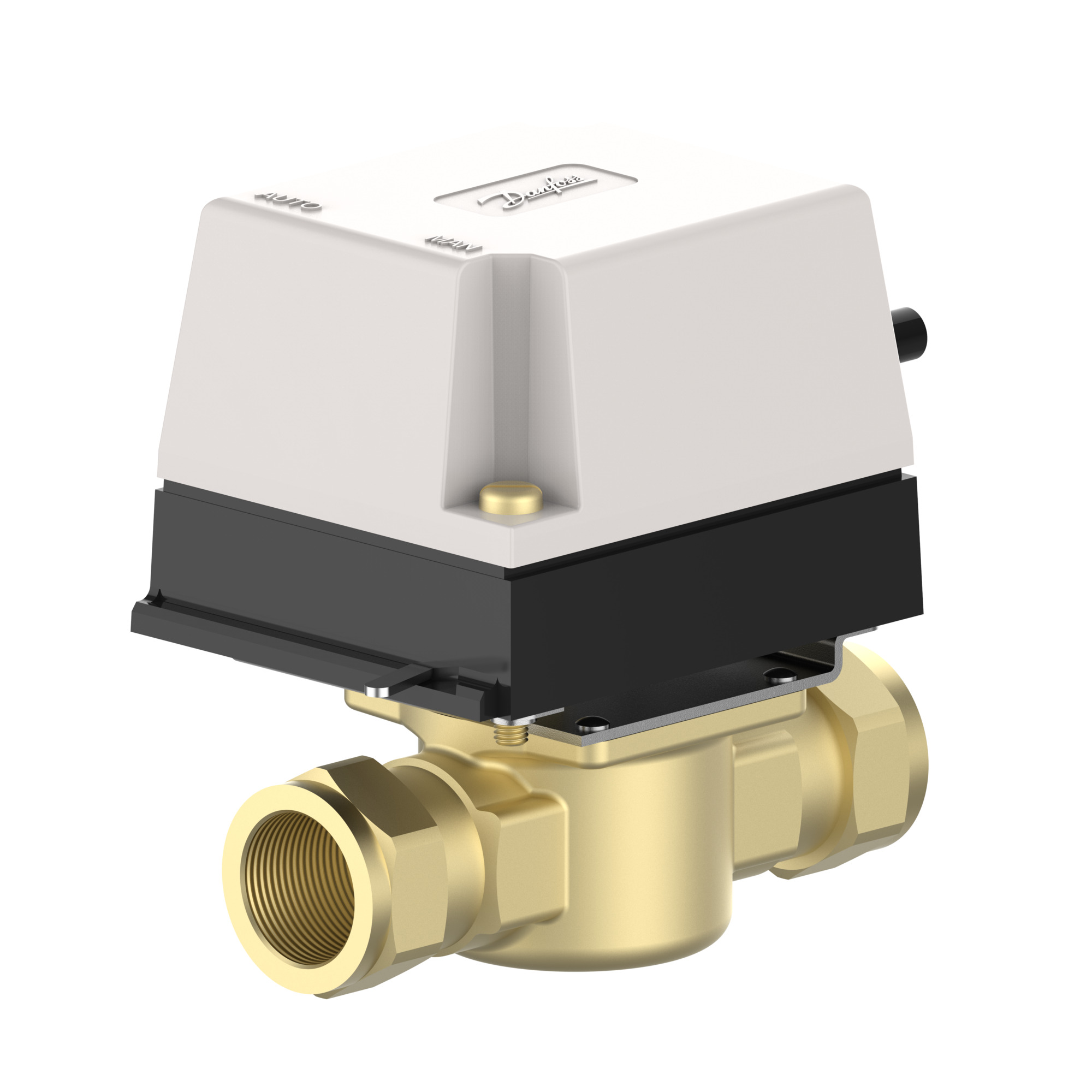

Danfoss Two-Port Motorised Valve 22mm HP22B 087N6642
Danfoss HP22B two-port motorised zone valve with actuator, 22mm external compression, 230 V AC, Kvs 5.8 m³/h, part 087N6642.
At a glance
- Part type: two-port seated valve, complete with actuator
£61.20
£51.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Danfoss HP22B is a two-port motorised zone valve supplied complete with its actuator. It uses a paddle closure inside a 22mm external compression body to open or close flow through a heating circuit on demand from a room or cylinder thermostat. Part number 087N6642 sits in the Danfoss zone valve range and is used to isolate or release flow to an individual zone of a wet central heating system.
Signs this part needs replacing
- The zone stays cold while the thermostat is calling, and the pipework either side of the valve remains at the same temperature.
- The actuator runs but the paddle does not move, so flow is never established or never shut off.
- A zone overheats because the valve is stuck open and cannot close against the thermostat signal.
- Water weeps from the compression joints or from the valve body around the spindle area.
- The actuator buzzes, stalls or fails to respond at all when 230 V AC is applied.
Before you order
- Confirm the valve body is a 22mm external compression connection and that the existing actuator is a matching H-series unit.
- Check the supply is 230 V AC at 50/60 Hz before fitting a replacement actuator or complete valve.
- Note the previous number 087N664200 when cross-referencing an older installation.
Mechanical
| Part type | HP Paddle |
|---|
Compliance
| Manufacturer part number (MPN) | 087N6642 |
|---|---|
| Barcode / EAN | 5013567162208 |
| GPC classification | Heating System Controls |
| Alternative numbers | 5013567162208, DANFOSS087N6642, DANFOSS087N6642, DANFOSS087N6642, DANFOSS087N6642, 087N664200 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| DANFOSS MOTORIZED ZONE VALVES | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
