Danfoss

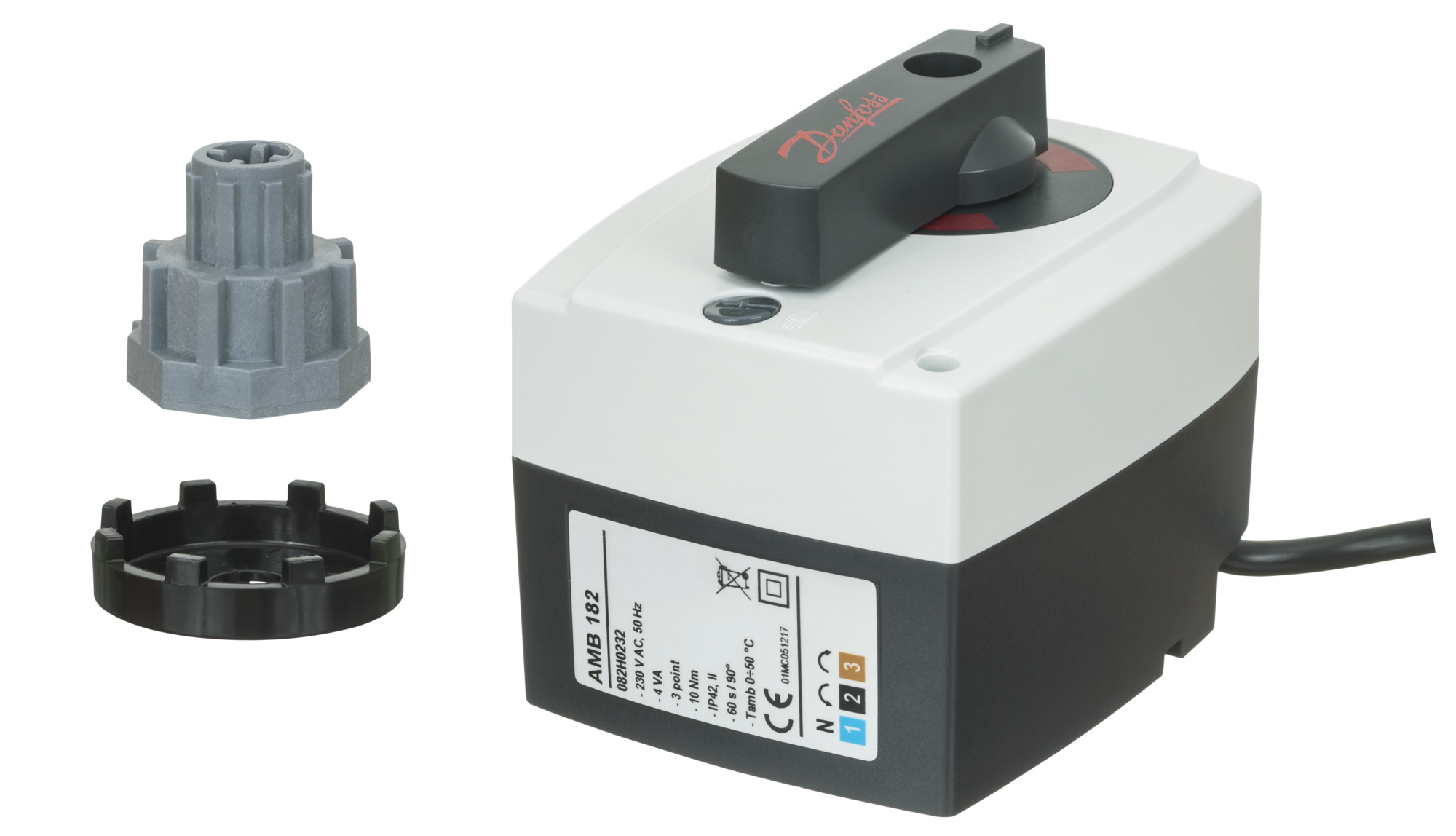

Danfoss 082H0222 230V 3-Point Actuator
Danfoss 082H0222 3-point electric actuator, 230V, 5Nm torque, 60S, for DN15-50 valves.
At a glance
- Also known as 4107124
£298.08
£248.40 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Danfoss 082H0222 is a 230V 3-point electric actuator rated at 5Nm torque with a 60S stroke time, intended for mounting on DN15-50 valves. It drives the valve open, closed and to intermediate positions under 3-point floating control from a controller or thermostat. The actuator forms the motorised head of the valve assembly, converting the control signal into stem movement.
Before you order
- Confirm the valve body is DN15-50 and that its stem and mounting interface suit this actuator.
- Check the control signal available on site is 3-point floating and not a 0-10V or other modulating output.
- Verify the supply is 230V before connecting.
- Note the 5Nm torque figure against the valve size and duty to confirm it is adequate.
Compliance
| Barcode / EAN | 5710104077765 |
|---|---|
| Alternative numbers | 4107124 |
No fitment data held for this part.
