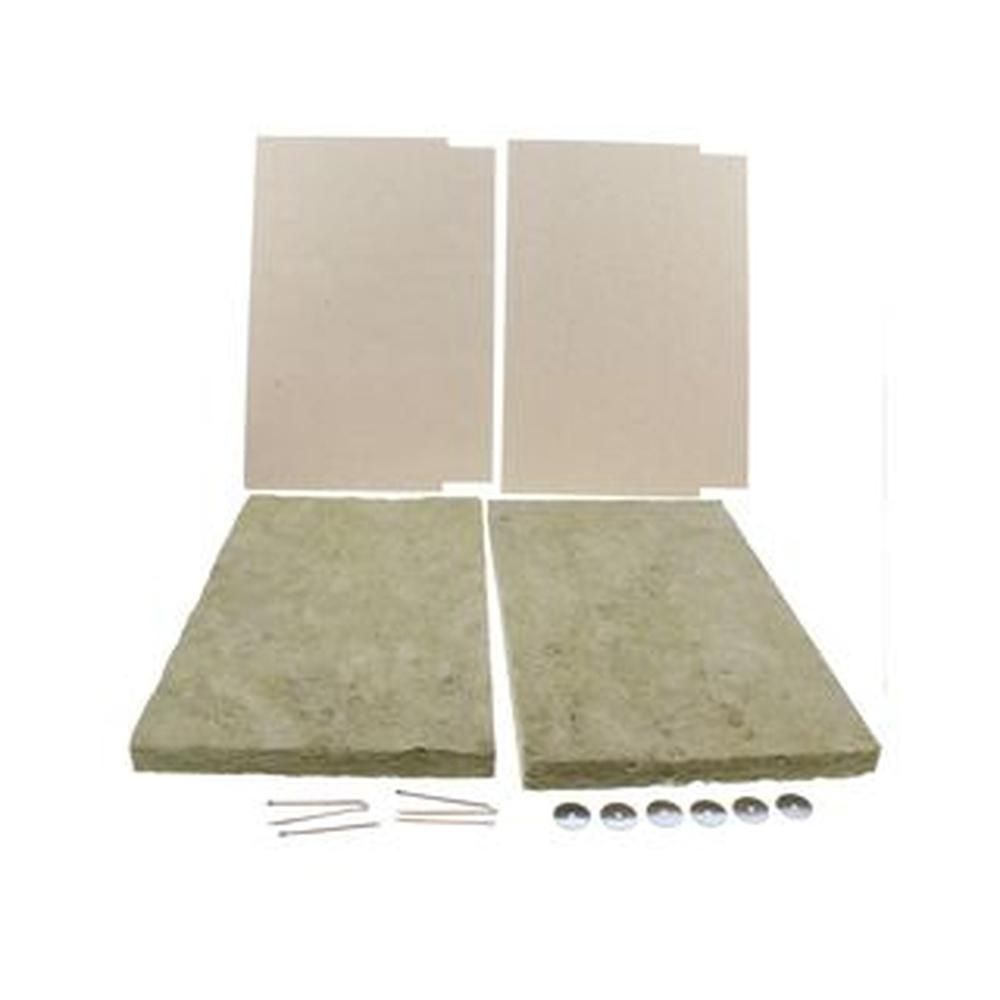

Ideal Combustion Chamber Side Insulation CX 50/60 079805
Ideal 079805 combustion chamber side insulation for Concord CX 50/60 series appliances, protecting the casing from combustion heat.
At a glance
- Part type: Combustion chamber side insulation
- Also known as 1175103
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£63.49
£52.91 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 079805 is a combustion chamber side insulation panel, manufactured by Ideal for its commercial Concord CX range. It lines the side of the combustion chamber, shielding the surrounding casing and internal components from the heat of the burner flame. Keeping this insulation sound helps the appliance hold stable combustion and protects adjacent parts from thermal stress.
Signs this part needs replacing
- The insulation panel is cracked, crumbling or breaking away from the chamber wall
- Visible heat damage, scorching or discolouration on the panel surface
- Insulation debris found loose inside the combustion chamber or flue path
- Combustion readings drifting or flue gas analysis falling outside the expected tolerance
- The panel has become detached or no longer sits flush against the chamber side
Before you order
- Check the appliance data badge and confirm the model and series against the compatibility list
- Match the GC number on the appliance to the numbers listed for this part
- Inspect the chamber seals and fixings while the appliance is open and replace any that are perished
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Combustion Chamber |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 079805 |
|---|---|
| Barcode / EAN | 5022140798055 |
| Alternative numbers | 1175103 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX 50 SERIES 3 | 41-387-61 | 41-387-61 | — | — |
| IDEAL COMMERCIAL CONCORD CX 50P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 60 SERIES 3 | 41-387-62 | 41-387-62 | — | — |
| IDEAL COMMERCIAL CONCORD CX 60P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 50 | 41-387-79 | 41-387-79 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 50H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 50P - PROPANE | 41-387-79 | 41-387-79 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 60 | 41-387-80 | 41-387-80 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 60H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 60P - PROPANE | 41-387-80 | 41-387-80 | — | — |
Showing 10 of 24 compatible appliances.
