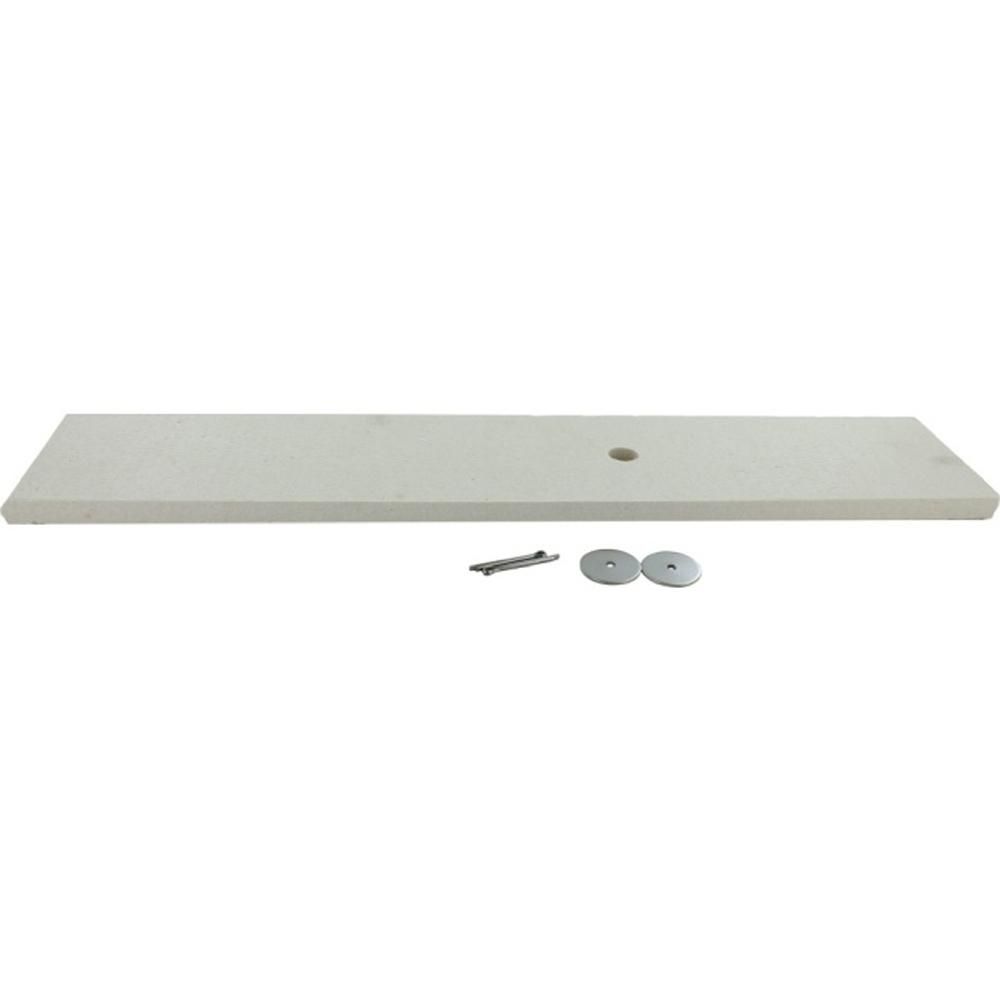

Ideal Plate Insulation CX/CXD/CXC 079796
Ideal 079796 plate insulation for Concord CX, CXD and CXC commercial appliances, supplied as a single casing and mounting component.
At a glance
- Part type: Insulation, heat shields and firebricks
- Also known as 1175101
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£15.68
£13.07 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 079796 is a plate insulation component for Ideal Commercial Concord CX, CXD and CXC appliances. It forms part of the casing and mounting assembly, where it reduces heat transfer from the appliance body and helps hold steady operating temperatures around the casing. It is supplied by Ideal as a single-piece spare.
Signs this part needs replacing
- Visible cracking, crumbling or breakdown of the insulation plate on inspection
- Discolouration or scorching of the plate surface
- Casing panels running noticeably hotter than normal in service
- Insulation material detaching from its mounting position inside the casing
- Heat damage or staining on surrounding casing components
Before you order
- Check the appliance GC number against the compatibility list to confirm the correct variant
- Confirm the part number on the existing component or in the appliance documentation before ordering
- Note the alternative part number 1175101 when cross-referencing older records
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Insulation, Heat Shields & Firebricks |
|---|
Compliance
| Manufacturer part number (MPN) | 079796 |
|---|---|
| Barcode / EAN | 5022140797966 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1175101 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX 100 SERIES 3 | 41-387-66 | 41-387-66 | — | — |
| IDEAL COMMERCIAL CONCORD CX 100P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 40 SERIES 3 | 41-387-60 | 41-387-60 | — | — |
| IDEAL COMMERCIAL CONCORD CX 40P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 50 SERIES 3 | 41-387-61 | 41-387-61 | — | — |
| IDEAL COMMERCIAL CONCORD CX 50P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 60 SERIES 3 | 41-387-62 | 41-387-62 | — | — |
| IDEAL COMMERCIAL CONCORD CX 60P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 70 SERIES 3 | 41-387-63 | 41-387-63 | — | — |
| IDEAL COMMERCIAL CONCORD CX 70P SERIES 3 - PROPANE | — | — | — |
Showing 10 of 26 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — CONCORD CX 100 SERIES 3 (GC 41-387-66), CONCORD CX 100P SERIES 3 - PROPANE, CONCORD CX 40 SERIES 3 (GC 41-387-60), CONCORD CX 40P SERIES 3 - PROPANE, CONCORD CX 50 SERIES 3 (GC 41-387-61), CONCORD CX 50P SERIES 3 - PROPANE, CONCORD CX 60 SERIES 3 (GC 41-387-62), CONCORD CX 60P SERIES 3 - PROPANE, CONCORD CX 70 SERIES 3 (GC 41-387-63), CONCORD CX 70P SERIES 3 - PROPANE, CONCORD CX 80 SERIES 3 (GC 41-387-64), CONCORD CX 80P SERIES 3 - PROPANE, CONCORD CX 90 SERIES 3 (GC 41-387-65), CONCORD CX 90P SERIES 3 - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXC 116 SERIES 3 (GC 41-394-35), CONCORD CXC 48 SERIES 3 (GC 41-394-32), CONCORD CXC 70 SERIES 3 (GC 41-394-33), CONCORD CXC 94 SERIES 3 (GC 41-394-34)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXD 40 SERIES 3, CONCORD CXD 50 SERIES 3, CONCORD CXD 60 SERIES 3, CONCORD CXD 70 SERIES 3, CONCORD CXD 80 SERIES 3, CONCORD CXD 90 SERIES 3
manualNo technical questions yet for this part.
