Ideal Combustion Chamber Insulation Rear CX 078817

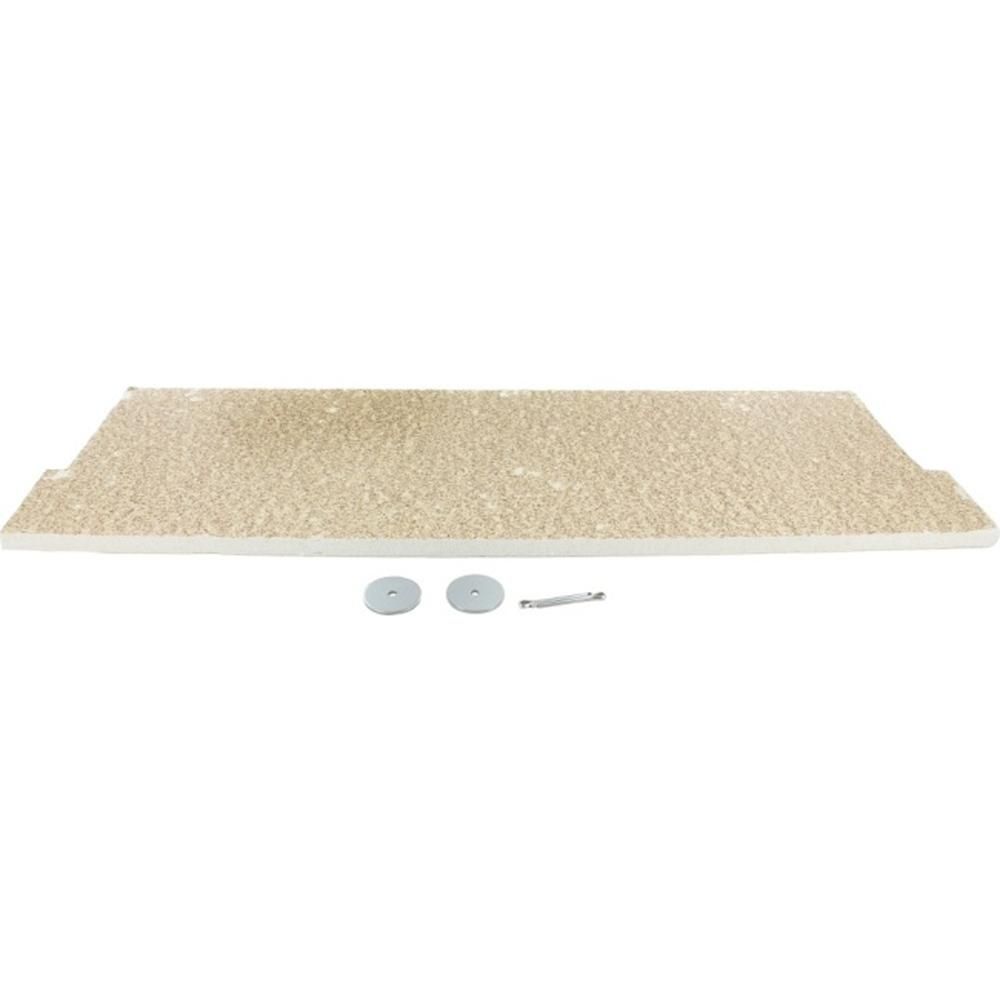

Rear combustion chamber insulation panel for Ideal Commercial Concord CX Series 3 boilers, part 078817.
At a glance
- Part type: Combustion chamber
- Also known as 1174745
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£27.22
£22.68 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 078817 is a rear combustion chamber insulation panel for Ideal Commercial Concord CX series boilers. It lines the rear face of the combustion chamber, keeping heat within the chamber and shielding the surrounding casing from sustained thermal exposure. Ideal supplies it as a direct replacement for the original panel.
Signs this part needs replacing
- Insulation panel cracked, crumbling or breaking away from the rear chamber face
- Visible heat damage, scorching or discolouration across the panel
- Material flaking or dropping into the combustion chamber
- Combustion readings drifting or unstable, prompting an inspection of the chamber
- Panel loose or no longer seated correctly against the rear wall
Before you order
- Match the GC number on the appliance data badge against the compatibility list before ordering.
- Confirm the boiler is a Concord CX Series 3 model, as this panel is specific to that range.
- Check whether the combustion chamber seal or gasket is being renewed at the same time.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Combustion Chamber |
|---|
Compliance
| Manufacturer part number (MPN) | 078817 |
|---|---|
| Barcode / EAN | 5022140788179 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1174745 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX 100 SERIES 3 | 41-387-66 | 41-387-66 | — | — |
| IDEAL COMMERCIAL CONCORD CX 100P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 40 SERIES 3 | 41-387-60 | 41-387-60 | — | — |
| IDEAL COMMERCIAL CONCORD CX 40P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 50 SERIES 3 | 41-387-61 | 41-387-61 | — | — |
| IDEAL COMMERCIAL CONCORD CX 50P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 60 SERIES 3 | 41-387-62 | 41-387-62 | — | — |
| IDEAL COMMERCIAL CONCORD CX 60P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 70 SERIES 3 | 41-387-63 | 41-387-63 | — | — |
| IDEAL COMMERCIAL CONCORD CX 70P SERIES 3 - PROPANE | — | — | — |
Showing 10 of 132 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
