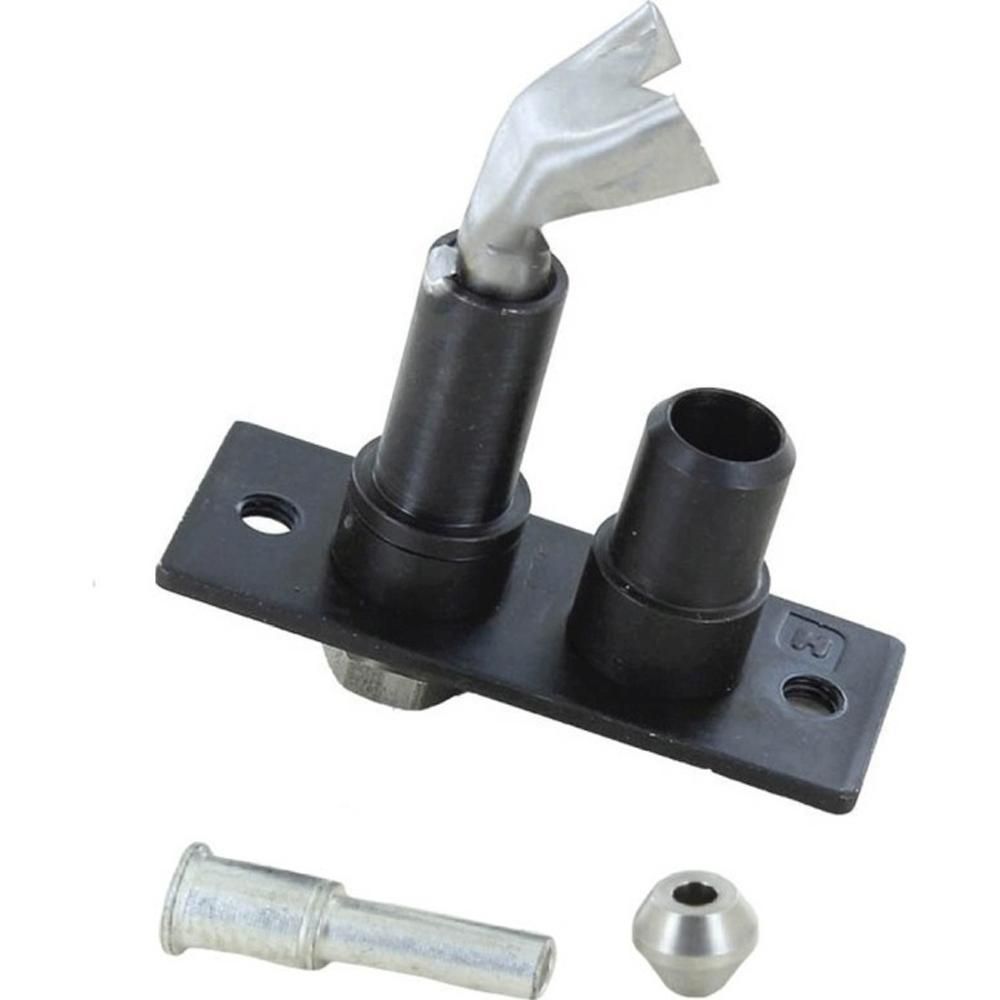

Ideal Pilot Burner FxG Cx 40-100 077105
Ideal 077105 pilot burner with injector for Concord CX 40-100 Series 3 commercial boilers, GC number 791-405.
At a glance
- Part type: Pilot burner
- Also known as 1174435
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£72.60
£60.50 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 077105 is a pilot burner assembly with an integral injector, supplied for Ideal commercial Concord CX appliances. It provides the standing pilot flame that ignites the main burner, so the appliance lights and runs as designed. The assembly is a gas-carrying component and is matched to the Concord CX 40 to 100 Series 3 range.
Signs this part needs replacing
- The pilot flame will not light, or lights and then goes out
- The pilot flame is weak, yellow or lifts away from the burner
- Sooting or heat discolouration around the pilot assembly
- Repeated lockouts or ignition faults when the appliance is called for heat
- A blocked or damaged injector preventing a stable pilot flame
Before you order
- Check the GC number on the appliance data badge against the compatibility list before ordering.
- Quote the alternative number 1174435 if that is the reference held in your records.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Pilot Burners |
|---|
Compliance
| Manufacturer part number (MPN) | 077105 |
|---|---|
| GC number | 791-405 |
| Barcode / EAN | 5022140771058 |
| Commodity code | 8416 20 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1174435 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX 100 SERIES 3 | 41-387-66 | 41-387-66 | — | — |
| IDEAL COMMERCIAL CONCORD CX 40 SERIES 3 | 41-387-60 | 41-387-60 | — | — |
| IDEAL COMMERCIAL CONCORD CX 50 SERIES 3 | 41-387-61 | 41-387-61 | — | — |
| IDEAL COMMERCIAL CONCORD CX 60 SERIES 3 | 41-387-62 | 41-387-62 | — | — |
| IDEAL COMMERCIAL CONCORD CX 70 SERIES 3 | 41-387-63 | 41-387-63 | — | — |
| IDEAL COMMERCIAL CONCORD CX 80 SERIES 3 | 41-387-64 | 41-387-64 | — | — |
| IDEAL COMMERCIAL CONCORD CX 90 SERIES 3 | 41-387-65 | 41-387-65 | — | — |
| IDEAL COMMERCIAL CONCORD CXA 100H | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 100P - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXA 110 | 41-387-85 | 41-387-85 | — | — |
Showing 10 of 40 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL COMMERCIAL appliance manual — CONCORD CX 100 SERIES 3 (GC 41-387-66), CONCORD CX 40 SERIES 3 (GC 41-387-60), CONCORD CX 50 SERIES 3 (GC 41-387-61), CONCORD CX 60 SERIES 3 (GC 41-387-62), CONCORD CX 70 SERIES 3 (GC 41-387-63), CONCORD CX 80 SERIES 3 (GC 41-387-64), CONCORD CX 90 SERIES 3 (GC 41-387-65)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 100H, CONCORD CXA 110H, CONCORD CXA 120H, CONCORD CXA 40H, CONCORD CXA 50H, CONCORD CXA 60H, CONCORD CXA 70H, CONCORD CXA 80H, CONCORD CXA 90H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 100P - PROPANE, CONCORD CXA 40P - PROPANE (GC 41-387-78), CONCORD CXA 50P - PROPANE (GC 41-387-79), CONCORD CXA 60P - PROPANE (GC 41-387-80), CONCORD CXA 70P - PROPANE (GC 41-387-81), CONCORD CXA 80P - PROPANE (GC 41-387-82), CONCORD CXA 90P - PROPANE (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 110 (GC 41-387-85), CONCORD CXA 120 (GC 41-387-86), CONCORD CXA 40 (GC 41-387-78), CONCORD CXA 50 (GC 41-387-79), CONCORD CXA 60 (GC 41-387-80), CONCORD CXA 70 (GC 41-387-81), CONCORD CXA 80 (GC 41-387-82), CONCORD CXA 90 (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXAP 100H - PROPANE, CONCORD CXAP 110H - PROPANE, CONCORD CXAP 120H - PROPANE, CONCORD CXAP 40H - PROPANE, CONCORD CXAP 50H - PROPANE, CONCORD CXAP 70H - PROPANE, CONCORD CXAP 80H - PROPANE, CONCORD CXAP 90H - PROPANE
