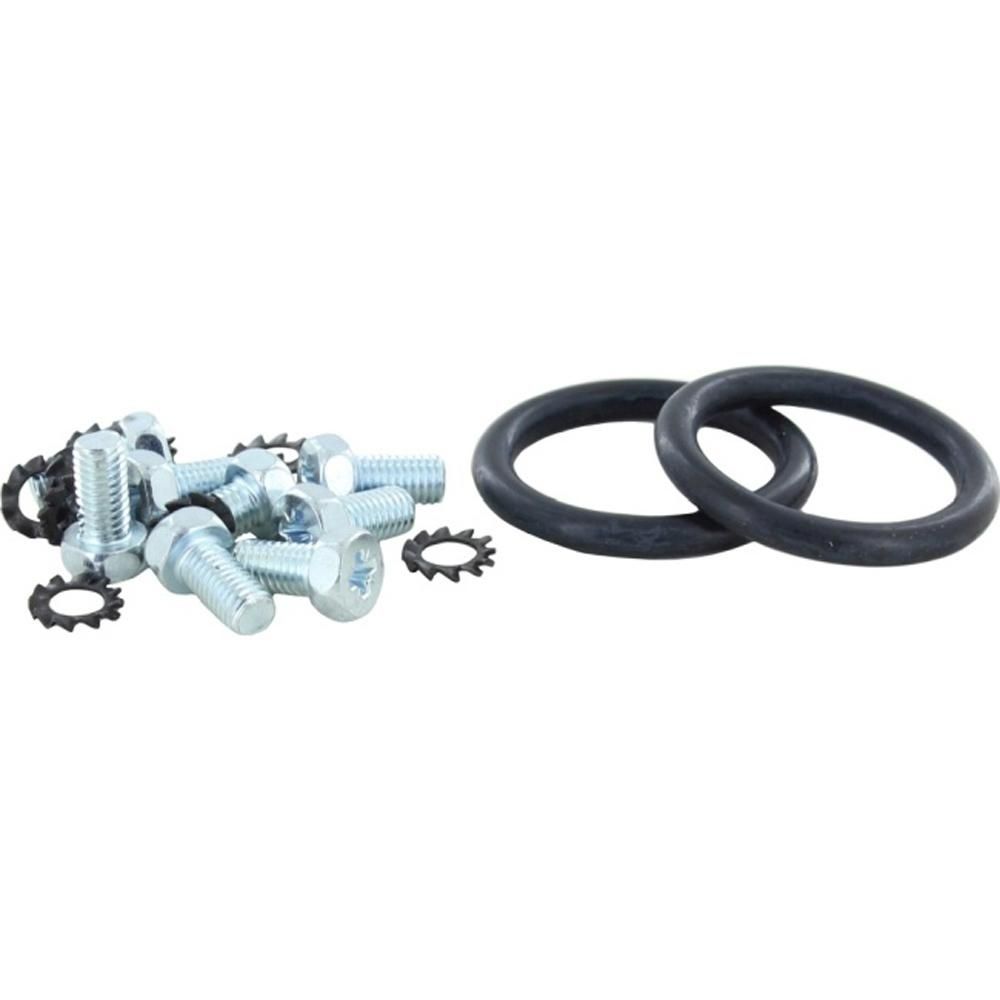

Ideal Gas Valve Fitting CX 076866
Ideal 076866 gas valve fitting, screw type, for Ideal Commercial Concord CX Series 3 appliances. Supplied singly.
At a glance
- Part type: Fittings & Fixings (clips, screws and springs)
- Also known as 1174399
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£25.73
£21.44 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 076866 is a gas valve fitting used on Ideal Commercial Concord CX Series 3 appliances. It holds and locates the gas valve assembly, keeping the valve body correctly seated so gas flow through the appliance can be regulated as designed. The fitting is a screw-type clip, screw and spring item supplied as a single unit.
Signs this part needs replacing
- The gas valve body is loose or can be moved on its mounting
- The fixing screw will not tighten, or its threads are stripped
- Spring tension has gone, so the fitting no longer holds the valve correctly
- Corrosion, heat discolouration or mechanical damage on the screw, clip or spring
- Repeat gas valve faults traced back to poor seating of the valve assembly
Before you order
- Check the GC number on the appliance data badge against the compatibility list; the 076866 fitting is listed across several Concord CX outputs and gas types.
- Confirm the appliance is a Concord CX Series 3 model, as this fitting is listed for that range.
- Consider whether a gasket or seal is also required when the gas valve is disturbed.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Fittings & Fixings |
|---|
Compliance
| Manufacturer part number (MPN) | 076866 |
|---|---|
| Barcode / EAN | 5022140768669 |
| Commodity code | 8481 90 00 00 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1174399 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CX 100 SERIES 3 | 41-387-66 | 41-387-66 | — | — |
| IDEAL COMMERCIAL CONCORD CX 100P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 40 SERIES 3 | 41-387-60 | 41-387-60 | — | — |
| IDEAL COMMERCIAL CONCORD CX 40P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 50 SERIES 3 | 41-387-61 | 41-387-61 | — | — |
| IDEAL COMMERCIAL CONCORD CX 50P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 60 SERIES 3 | 41-387-62 | 41-387-62 | — | — |
| IDEAL COMMERCIAL CONCORD CX 60P SERIES 3 - PROPANE | — | — | — | |
| IDEAL COMMERCIAL CONCORD CX 70 SERIES 3 | 41-387-63 | 41-387-63 | — | — |
| IDEAL COMMERCIAL CONCORD CX 70P SERIES 3 - PROPANE | — | — | — |
Showing 10 of 91 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL COMMERCIAL appliance manual — CONCORD CX 100 SERIES 3 (GC 41-387-66), CONCORD CX 100P SERIES 3 - PROPANE, CONCORD CX 40 SERIES 3 (GC 41-387-60), CONCORD CX 40P SERIES 3 - PROPANE, CONCORD CX 50 SERIES 3 (GC 41-387-61), CONCORD CX 50P SERIES 3 - PROPANE, CONCORD CX 60 SERIES 3 (GC 41-387-62), CONCORD CX 60P SERIES 3 - PROPANE, CONCORD CX 70 SERIES 3 (GC 41-387-63), CONCORD CX 70P SERIES 3 - PROPANE, CONCORD CX 80 SERIES 3 (GC 41-387-64), CONCORD CX 80P SERIES 3 - PROPANE, CONCORD CX 90 SERIES 3 (GC 41-387-65), CONCORD CX 90P SERIES 3 - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 100H, CONCORD CXA 110H, CONCORD CXA 120H, CONCORD CXA 40H, CONCORD CXA 50H, CONCORD CXA 60H, CONCORD CXA 70H, CONCORD CXA 80H, CONCORD CXA 90H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 100P - PROPANE, CONCORD CXA 40P - PROPANE (GC 41-387-78), CONCORD CXA 50P - PROPANE (GC 41-387-79), CONCORD CXA 60P - PROPANE (GC 41-387-80), CONCORD CXA 70P - PROPANE (GC 41-387-81), CONCORD CXA 80P - PROPANE (GC 41-387-82), CONCORD CXA 90P - PROPANE (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXA 110 (GC 41-387-85), CONCORD CXA 120 (GC 41-387-86), CONCORD CXA 40 (GC 41-387-78), CONCORD CXA 50 (GC 41-387-79), CONCORD CXA 60 (GC 41-387-80), CONCORD CXA 70 (GC 41-387-81), CONCORD CXA 80 (GC 41-387-82), CONCORD CXA 90 (GC 41-387-83)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXAP 100H - PROPANE, CONCORD CXAP 110H - PROPANE, CONCORD CXAP 120H - PROPANE, CONCORD CXAP 40H - PROPANE, CONCORD CXAP 50H - PROPANE, CONCORD CXAP 60H - PROPANE, CONCORD CXAP 70H - PROPANE, CONCORD CXAP 80H - PROPANE, CONCORD CXAP 90H - PROPANE
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXC 116 SERIES 3 (GC 41-394-35), CONCORD CXC 48 SERIES 3 (GC 41-394-32), CONCORD CXC 70 SERIES 3 (GC 41-394-33), CONCORD CXC 94 SERIES 3 (GC 41-394-34)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXD 40 SERIES 3, CONCORD CXD 50 SERIES 3, CONCORD CXD 60 SERIES 3, CONCORD CXD 70 SERIES 3, CONCORD CXD 80 SERIES 3, CONCORD CXD 90 SERIES 3
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110/H, CONCORD CXS 120/H, CONCORD CXS 40/H, CONCORD CXS 50/H, CONCORD CXS 60/H, CONCORD CXS 70/H, CONCORD CXS 80/H, CONCORD CXS 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110NG, CONCORD CXS 120NG, CONCORD CXS 40NG, CONCORD CXS 50NG, CONCORD CXS 60NG, CONCORD CXS 70NG, CONCORD CXS 80NG, CONCORD CXS 90NG
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110/H, CONCORD CXSD 120/H, CONCORD CXSD 40/H, CONCORD CXSD 50/H, CONCORD CXSD 60/H, CONCORD CXSD 70/H, CONCORD CXSD 80/H, CONCORD CXSD 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110NG (GC 41-391-47), CONCORD CXSD 120NG (GC 41-391-48), CONCORD CXSD 40NG (GC 41-387-96), CONCORD CXSD 50NG (GC 41-387-97), CONCORD CXSD 60NG (GC 41-387-98), CONCORD CXSD 70NG, CONCORD CXSD 80NG (GC 41-387-99), CONCORD CXSD 90NG (GC 41-391-33)
