Ideal

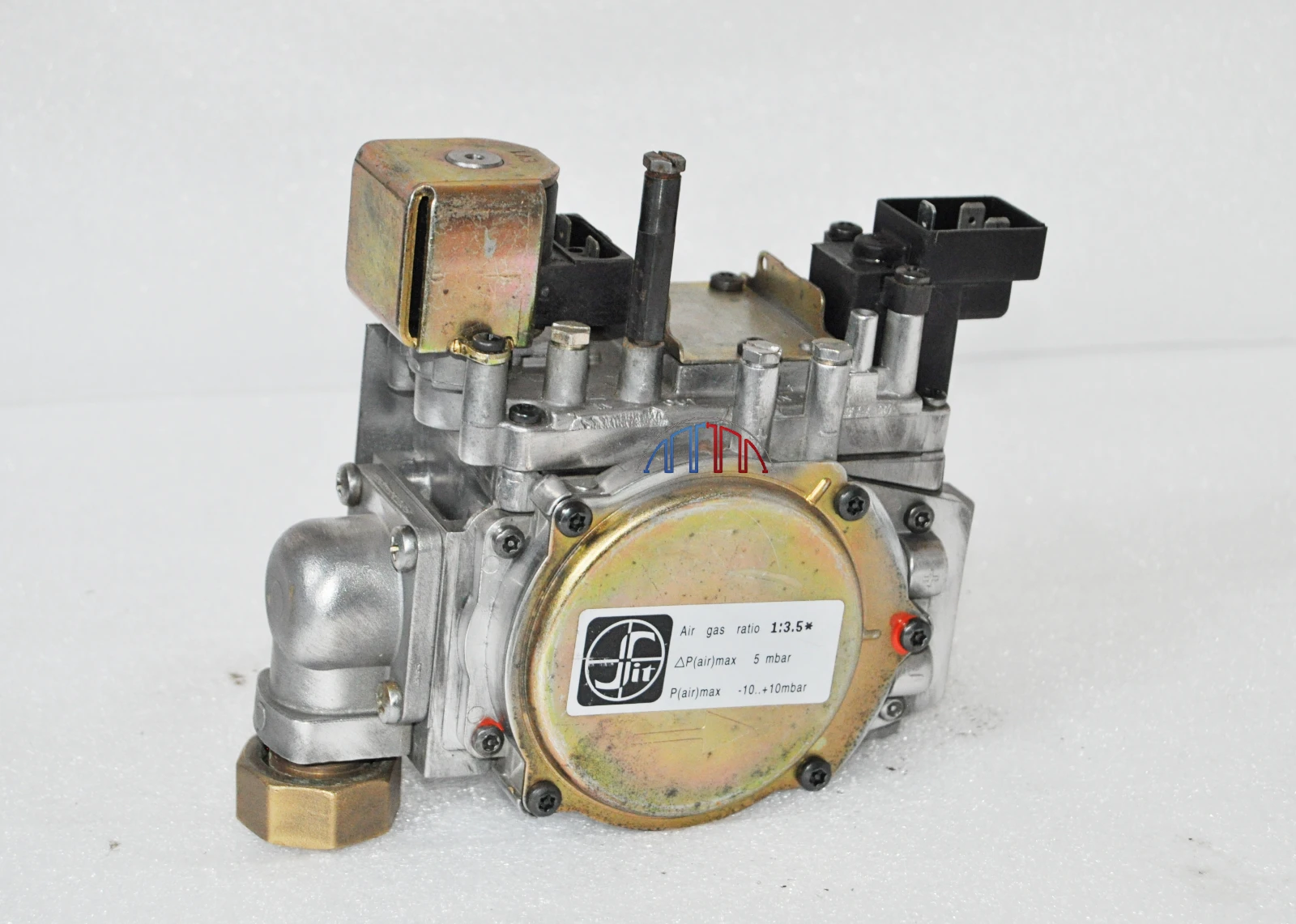

Ideal Gas Valve Assembly SIT 075213
At a glance
- Part type: Gas valve assembly
- Also known as 1173968
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£320.16
£266.80 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 075213 is a SIT gas valve assembly used on Ideal and Henrad domestic gas boilers. It sits on the gas train and regulates the flow of gas to the burner, working with the boiler's ignition and modulation controls to hold a stable flame across the firing range. It is the valve fitted to the Henrad CC and Ideal Response ranges listed below.
Signs this part needs replacing
- The boiler fails to light and goes to lockout on a call for heat
- The burner lights but the flame drops out shortly afterwards
- Flame is weak, unstable or will not modulate through the range
- Repeated lockout that clears on reset and returns on the next demand
- No gas is passed to the burner despite the fan and ignition sequence running
Before you order
- Check the GC number on the appliance data badge against the list above before ordering
- Confirm the valve currently fitted carries the same part number or the alternative number 1173968
- Inspect the gas train joints and seals during replacement and renew any that are disturbed
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gas Valve Assembly |
|---|
Compliance
| Manufacturer part number (MPN) | 075213 |
|---|---|
| GC number | E01-797 |
| Barcode / EAN | 5022140752132 |
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | 1173968 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL HENRAD CC100 FF | 47-348-12 | 47-348-12 | — | — |
| IDEAL HENRAD CC120FF | 47-348-13 | 47-348-13 | — | — |
| IDEAL RESPONSE 100 | 47-348-04 | 47-348-04 | — | — |
| IDEAL RESPONSE 120 | 47-348-01 | 47-348-01 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
