Ideal

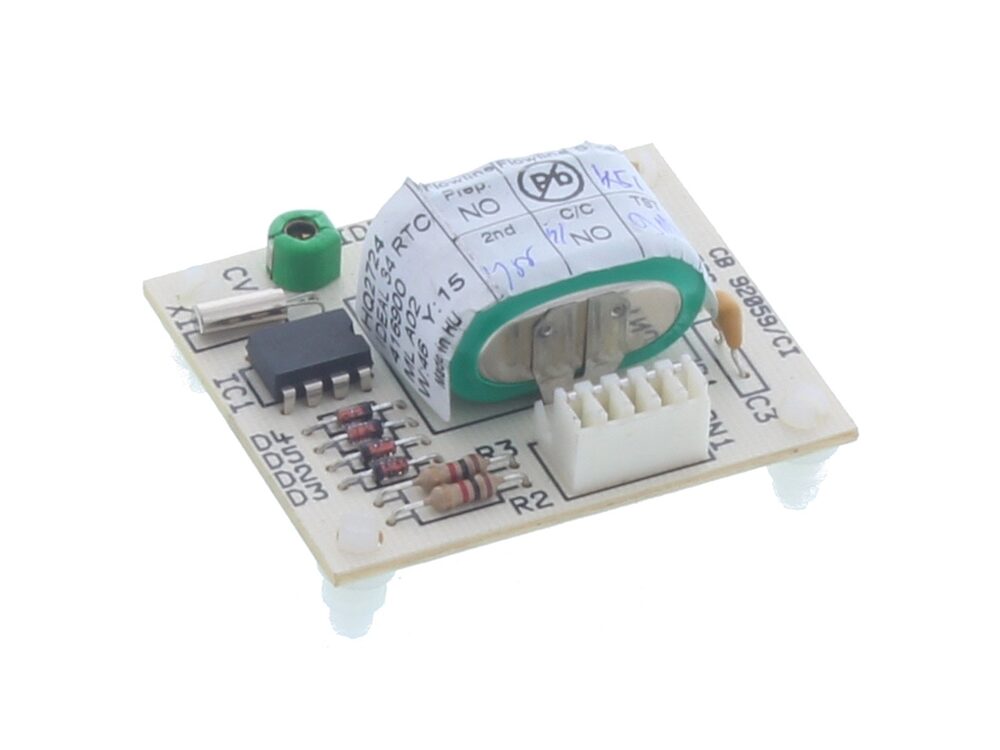

Ideal Real Time Clock 069958
Ideal 069958 real time clock for Concord CXC and CXD Series 3 commercial boilers, switching heating and hot water to a set schedule.
At a glance
- Also known as 1173864
Showing prices
£205.61
£171.34 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 069958 is a real time clock supplied as a packaged spare for Ideal commercial boilers. It sits within the appliance control circuit and switches the boiler on and off against set time periods, so heating and hot water follow a programme rather than running continuously. It is listed in Ideal's clocks, programmers and timers range and is used across the Concord CXC and CXD Series 3 commercial family.
Signs this part needs replacing
- The boiler runs continuously and ignores the set programme.
- Heating or hot water does not come on at the programmed times.
- The clock loses time, or the day and time reset after a power interruption.
- The timer display is blank, dim or unresponsive to button presses.
- The boiler fires outside the scheduled periods.
Before you order
- Match the GC number on the appliance data badge against the list above, as control variants differ across the range.
- Confirm the appliance model and series — this clock is listed for Concord CXC and CXD Series 3 units.
- Check the existing timer housing and any seal at the same time, so the replacement can be completed in one visit.
Mechanical
| Part type | Clocks, Programmers & Timers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| GC number | E58-349 |
|---|---|
| Barcode / EAN | 5022140699581 |
| Commodity code | 9107 00 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1173864 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXC 116 SERIES 3 | 41-394-35 | 41-394-35 | — | — |
| IDEAL COMMERCIAL CONCORD CXC 48 SERIES 3 | 41-394-32 | 41-394-32 | — | — |
| IDEAL COMMERCIAL CONCORD CXC 70 SERIES 3 | 41-394-33 | 41-394-33 | — | — |
| IDEAL COMMERCIAL CONCORD CXC 94 SERIES 3 | 41-394-34 | 41-394-34 | — | — |
| IDEAL COMMERCIAL CONCORD CXD 100 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 40 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 50 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 60 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 70 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 80 SERIES 3 | — | — | — |
Showing 10 of 61 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL COMMERCIAL appliance manual — CONCORD CXC 116 SERIES 3 (GC 41-394-35), CONCORD CXC 48 SERIES 3 (GC 41-394-32), CONCORD CXC 70 SERIES 3 (GC 41-394-33), CONCORD CXC 94 SERIES 3 (GC 41-394-34)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXD 40 SERIES 3, CONCORD CXD 50 SERIES 3, CONCORD CXD 60 SERIES 3, CONCORD CXD 70 SERIES 3, CONCORD CXD 80 SERIES 3, CONCORD CXD 90 SERIES 3
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXDI 110, CONCORD CXDI 120, CONCORD CXDI 140, CONCORD CXDI 160, CONCORD CXDI 180
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXDI 110/H, CONCORD CXDI 120/H, CONCORD CXDI 140/H, CONCORD CXDI 160/H, CONCORD CXDI 180/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110/H, CONCORD CXS 120/H, CONCORD CXS 40/H, CONCORD CXS 50/H, CONCORD CXS 60/H, CONCORD CXS 70/H, CONCORD CXS 80/H, CONCORD CXS 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110/H, CONCORD CXSD 120/H, CONCORD CXSD 40/H, CONCORD CXSD 50/H, CONCORD CXSD 60/H, CONCORD CXSD 70/H, CONCORD CXSD 80/H, CONCORD CXSD 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110NG (GC 41-391-47), CONCORD CXSD 120NG (GC 41-391-48), CONCORD CXSD 40NG (GC 41-387-96), CONCORD CXSD 50NG (GC 41-387-97), CONCORD CXSD 60NG (GC 41-387-98), CONCORD CXSD 70NG, CONCORD CXSD 80NG (GC 41-387-99), CONCORD CXSD 90NG (GC 41-391-33)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 110, CONCORD CXSI 120, CONCORD CXSI 140, CONCORD CXSI 160, CONCORD CXSI 180
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 110/H, CONCORD CXSI 120/H, CONCORD CXSI 140/H, CONCORD CXSI 160/H, CONCORD CXSI 180/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXi 110 SERIES 2, CONCORD CXi 120 SERIES 2, CONCORD CXi 140 SERIES 2, CONCORD CXi 160 SERIES 2, CONCORD CXi 180 SERIES 2
manualNo technical questions yet for this part.
