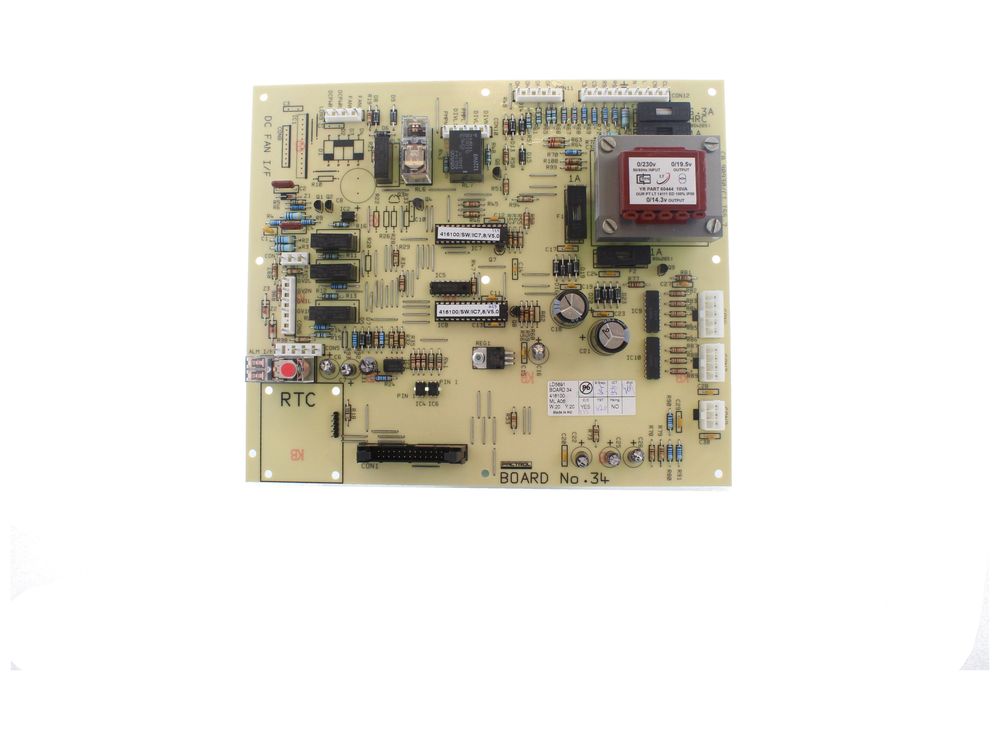

Ideal Printed Circuit Board 34 Packaged 069957
At a glance
- Part type: Printed circuit board (PCB 34, packaged)
- Also known as 1173863, N7150
Showing prices
£863.63
£719.69 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 069957 is a packaged printed circuit board (PCB 34) used in Ideal commercial boilers. It is the control board that governs ignition sequencing, burner modulation, safety interlocks and fault signalling on the appliance. It belongs to the Concord CXC and CXD Series 3 range of commercial boilers.
Signs this part needs replacing
- Boiler fails to fire or locks out with no obvious mechanical cause
- Blank display or a control panel that does not respond
- Repeated fault codes or erratic burner behaviour
- Fan, pump or ignition sequence running out of order
- Board showing burn marks, corrosion or water damage
Before you order
- Check the appliance GC number and model against the compatibility list; Concord CXC and CXD Series 3 variants use different board revisions.
- Confirm the number on the existing board matches 069957 or one of the alternative numbers listed.
Mechanical
| Part type | PCB 34 PACKAGED |
|---|
Compliance
| Manufacturer part number (MPN) | 069957 |
|---|---|
| GC number | 790-629 |
| Barcode / EAN | 5022140699574 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1173863, N7150 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD CXC 116 SERIES 3 | 41-394-35 | 41-394-35 | — | — |
| IDEAL COMMERCIAL CONCORD CXC 48 SERIES 3 | 41-394-32 | 41-394-32 | — | — |
| IDEAL COMMERCIAL CONCORD CXC 70 SERIES 3 | 41-394-33 | 41-394-33 | — | — |
| IDEAL COMMERCIAL CONCORD CXC 94 SERIES 3 | 41-394-34 | 41-394-34 | — | — |
| IDEAL COMMERCIAL CONCORD CXD 100 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 40 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 50 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 60 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 70 SERIES 3 | — | — | — | |
| IDEAL COMMERCIAL CONCORD CXD 80 SERIES 3 | — | — | — |
Showing 10 of 61 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL COMMERCIAL appliance manual — CONCORD CXC 116 SERIES 3 (GC 41-394-35), CONCORD CXC 48 SERIES 3 (GC 41-394-32), CONCORD CXC 70 SERIES 3 (GC 41-394-33), CONCORD CXC 94 SERIES 3 (GC 41-394-34)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXD 40 SERIES 3, CONCORD CXD 50 SERIES 3, CONCORD CXD 60 SERIES 3, CONCORD CXD 70 SERIES 3, CONCORD CXD 80 SERIES 3, CONCORD CXD 90 SERIES 3
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXDI 110, CONCORD CXDI 120, CONCORD CXDI 140, CONCORD CXDI 160, CONCORD CXDI 180
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXDI 110/H, CONCORD CXDI 120/H, CONCORD CXDI 140/H, CONCORD CXDI 160/H, CONCORD CXDI 180/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXS 110/H, CONCORD CXS 120/H, CONCORD CXS 40/H, CONCORD CXS 50/H, CONCORD CXS 60/H, CONCORD CXS 70/H, CONCORD CXS 80/H, CONCORD CXS 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110/H, CONCORD CXSD 120/H, CONCORD CXSD 40/H, CONCORD CXSD 50/H, CONCORD CXSD 60/H, CONCORD CXSD 70/H, CONCORD CXSD 80/H, CONCORD CXSD 90/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSD 110NG (GC 41-391-47), CONCORD CXSD 120NG (GC 41-391-48), CONCORD CXSD 40NG (GC 41-387-96), CONCORD CXSD 50NG (GC 41-387-97), CONCORD CXSD 60NG (GC 41-387-98), CONCORD CXSD 70NG, CONCORD CXSD 80NG (GC 41-387-99), CONCORD CXSD 90NG (GC 41-391-33)
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 110, CONCORD CXSI 120, CONCORD CXSI 140, CONCORD CXSI 160, CONCORD CXSI 180
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXSI 110/H, CONCORD CXSI 120/H, CONCORD CXSI 140/H, CONCORD CXSI 160/H, CONCORD CXSI 180/H
manualmanualIDEAL COMMERCIAL appliance manual — CONCORD CXi 110 SERIES 2, CONCORD CXi 120 SERIES 2, CONCORD CXi 140 SERIES 2, CONCORD CXi 160 SERIES 2, CONCORD CXi 180 SERIES 2
manualNo technical questions yet for this part.
