Danfoss
Danfoss 065Z0430 DN32 Kvs 28 Rotary 3-Way Flange
Danfoss rotary 3-way flanged valve, DN32 with a Kvs of 28, part number 065Z0430.
At a glance
- Also known as 4107034
£408.96
£340.80 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

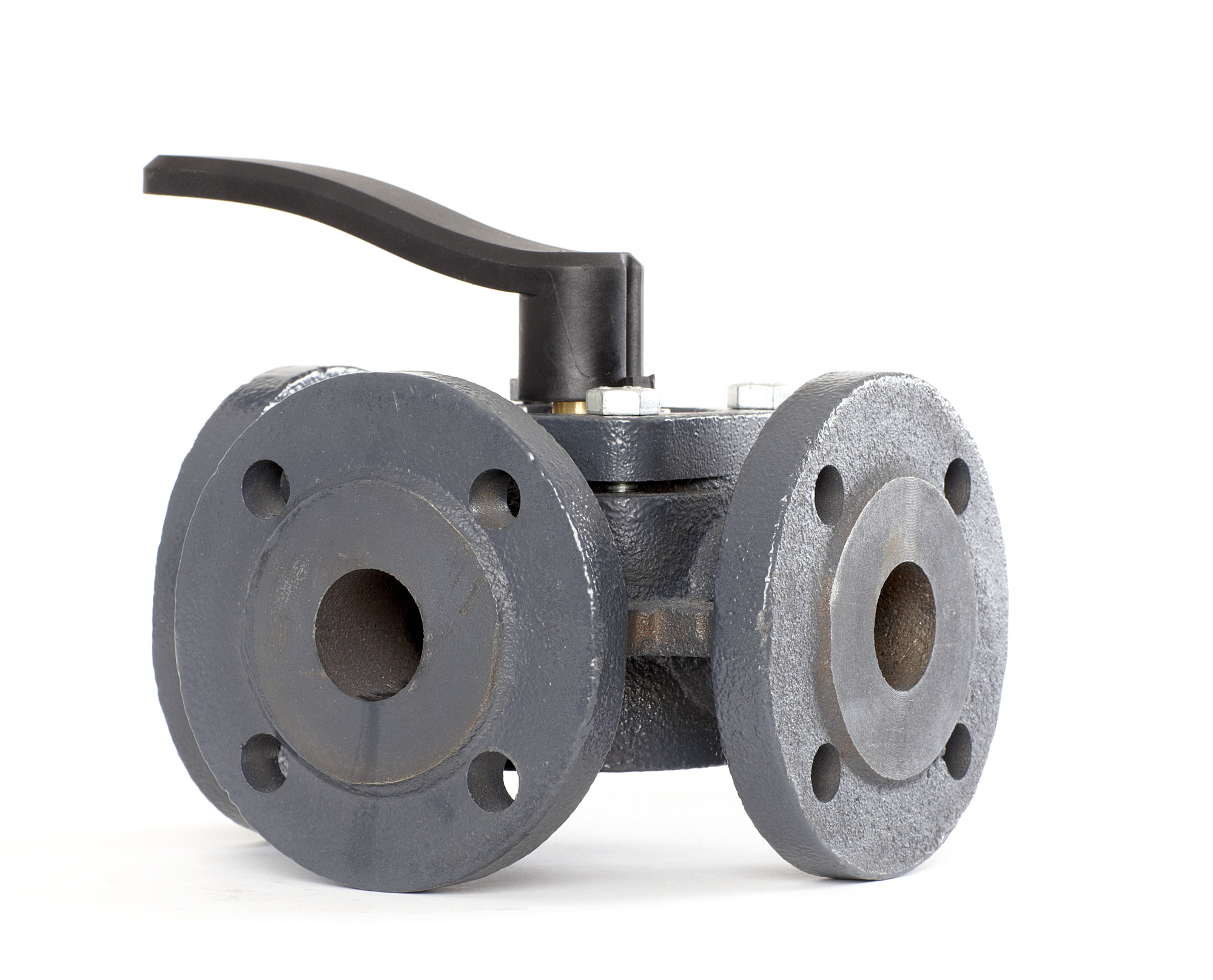

The Danfoss 065Z0430 is a rotary 3-way valve with a flanged body, sized DN32 and rated at Kvs 28. It is part of Danfoss's range of rotary control valves used to regulate or divert flow in heating and cooling circuits. The rotary shoe action gives a close-coupled, low-torque operation suited to modulating control duties on hydronic systems.
Before you order
- Confirm the pipework is DN32 and that the mating flanges match the valve body.
- Check the Kvs 28 rating is suitable for the required flow rate and pressure drop in the circuit.
- Verify the actuator interface and control signal type match the existing or planned actuator.
- Check the port configuration (3-way mixing or diverting) against the system design before ordering.
Compliance
| Barcode / EAN | 5710104033471 |
|---|---|
| Alternative numbers | 4107034 |
No fitment data held for this part.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
