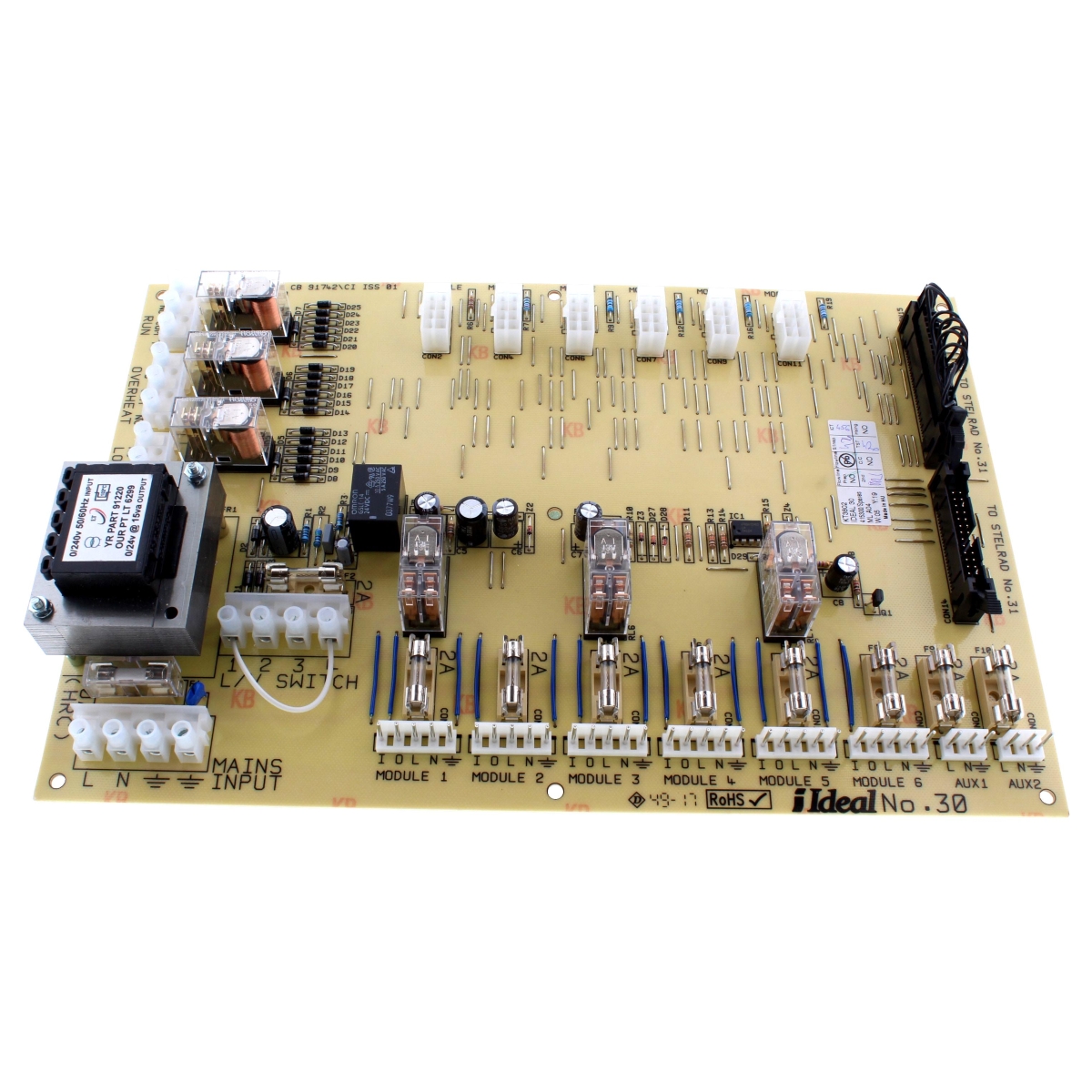

Ideal Printed Circuit Board 30 060571

The Ideal 060571 is a printed circuit board (PCB) used in Ideal Commercial heating appliances. It monitors and controls the processes running throughout the system by reading switches, thermostats and sensors, and it enforces safety measures by shutting down boiler functions when internal readings indicate a fault, such as high pressure or low water levels. This board is associated with the Ideal Commercial Concord Super Series 4 appliance family.

• The appliance fails to run through its normal sequence or does not respond to the controls.
• Repeated lockouts or shutdowns with no obvious mechanical or water-side cause.
• Erratic behaviour from thermostats or sensors that the board reads.
• Safety shutdowns triggered for high pressure or low water level when the system itself checks out.
• Visible damage, moisture or burning on the board itself.

• Confirm the appliance model and serial number against the compatibility list before ordering.
• Check the numbers printed on the existing board; 415300 and 1171073 may appear in place of 060571.
• Isolate the electrical supply to the appliance before removing or fitting the board.
• After fitting, check that the appliance runs through its full sequence and that any settings or parameters are correct for the model.
