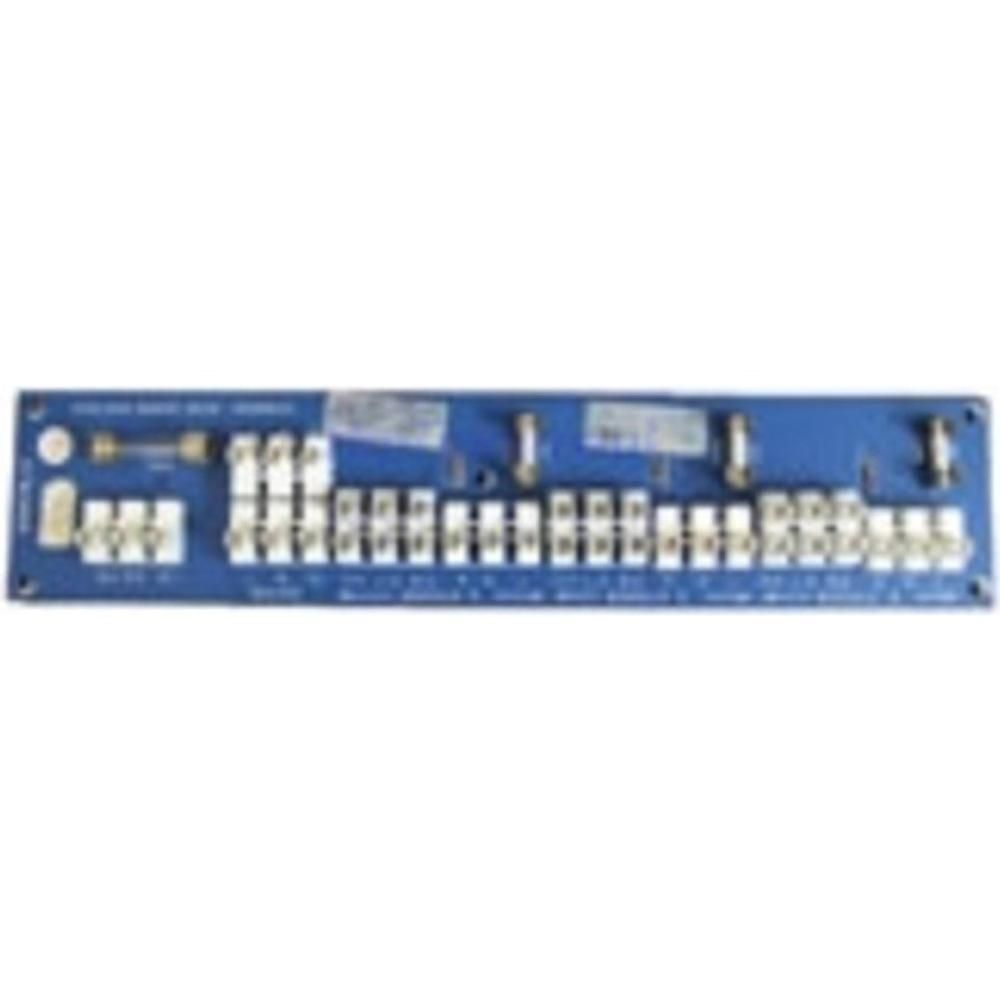

Ideal Printed Circuit Board No.10 060561

The Ideal 060561 is a printed circuit board supplied as the No.10 board for a range of Ideal commercial heating appliances. It is the control board that carries the appliance's operating logic, handling ignition sequencing, temperature regulation and safety interlocks on the models listed below.

This board is used across Ideal commercial boiler families, including the Concord Super Series 3 range and the Super Plus and Module Super Plus DBI units. It is listed under Ideal part number 060561 and also appears under the numbers 408900 and 1171064.

• The appliance fails to fire or does not respond when a demand is applied.
• Repeated lockouts or fault codes that clear only after a power cycle and then return.
• No display, blank or erratic indicator behaviour on the control panel.
• Intermittent operation where the boiler runs correctly one day and drops out the next.
• Fan, pump or ignition sequence not starting despite a confirmed call for heat.

• Check the GC number on the appliance data badge against the numbers listed above before ordering.
• Confirm the board designation printed on the existing PCB matches the No.10 board, as several boards are used across these appliance families.
• Cross-check the numbers on the removed board against 060561, 408900 and 1171064 to confirm the correct replacement.
• Work on the appliance should be carried out by a competent engineer, with the unit isolated from the electrical supply before the board is removed.
