Ideal Burner Flange Gasket Super 50Kv 057860

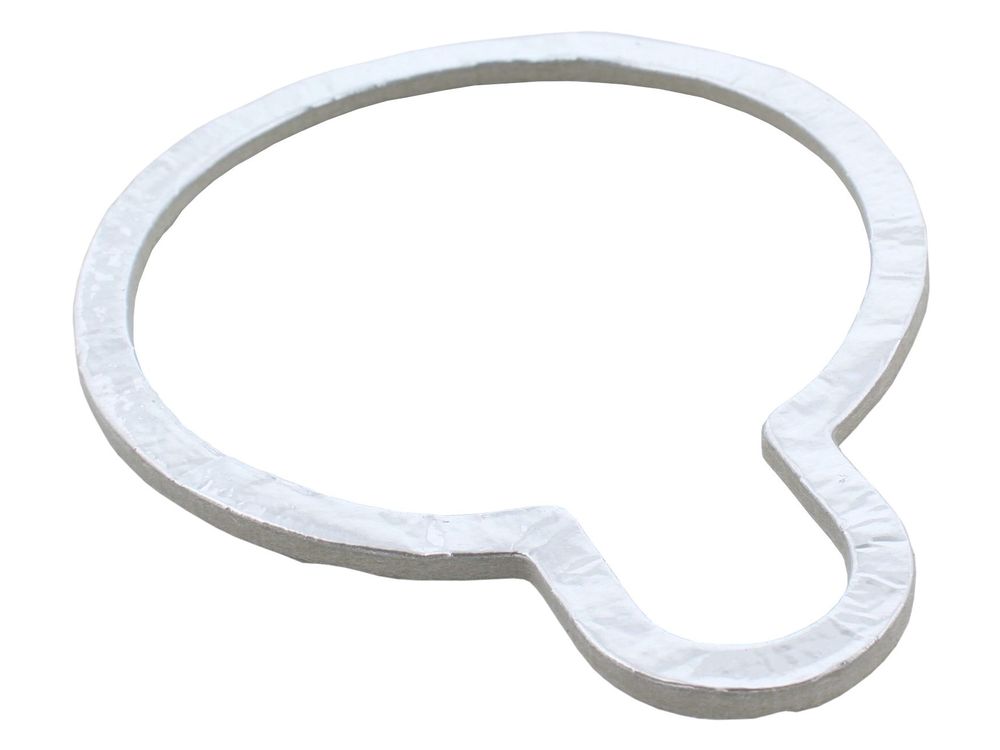

The Ideal burner flange gasket 057860 is a sealing component that sits at the burner flange joint on Ideal Commercial appliances. It is supplied under the Ideal Spares brand and forms part of the gaskets, seals and washers group of service parts. Its job is to close the joint between the burner flange and the mating face, keeping combustion gases contained and the burner assembly running as the manufacturer intended.

• Visible scorching, cracking or hardening of the gasket material around the burner flange joint.
• Soot staining or heat discolouration on the flange faces where combustion products have escaped.
• A smell of combustion gases or a change in flue readings traced to the burner mounting joint.
• The gasket breaking up or sticking to the flange when the burner is removed for servicing, leaving a damaged sealing face.
• Reassembly after burner work where the original gasket cannot be reused and a fresh seal is needed to restore a gas-tight joint.

• Confirm the appliance model and serial number against the compatibility list, as the Concord Super Series 3 and Series 4 use different assemblies.
• Check the existing gasket and the burner flange face for damage before fitting, and clean both mating surfaces.
• Note the alternative part number 1170882 when cross-referencing older documentation or stock records.
• This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
